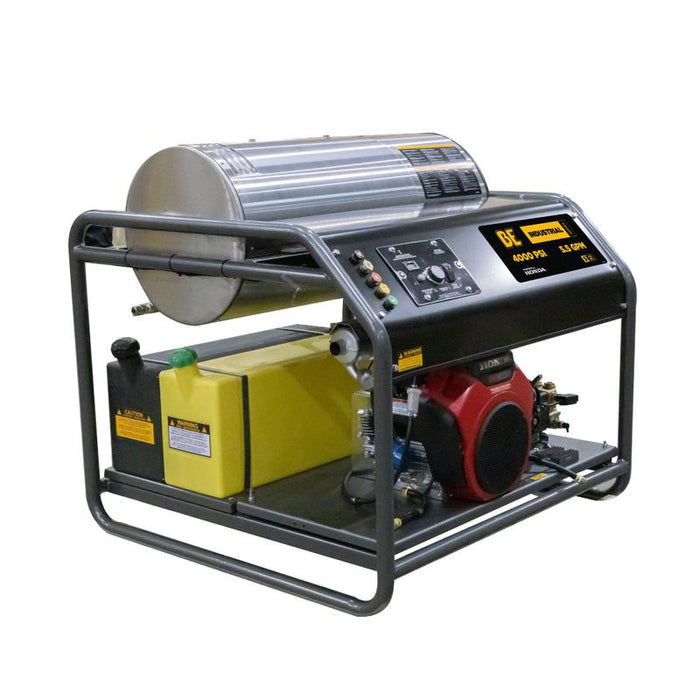

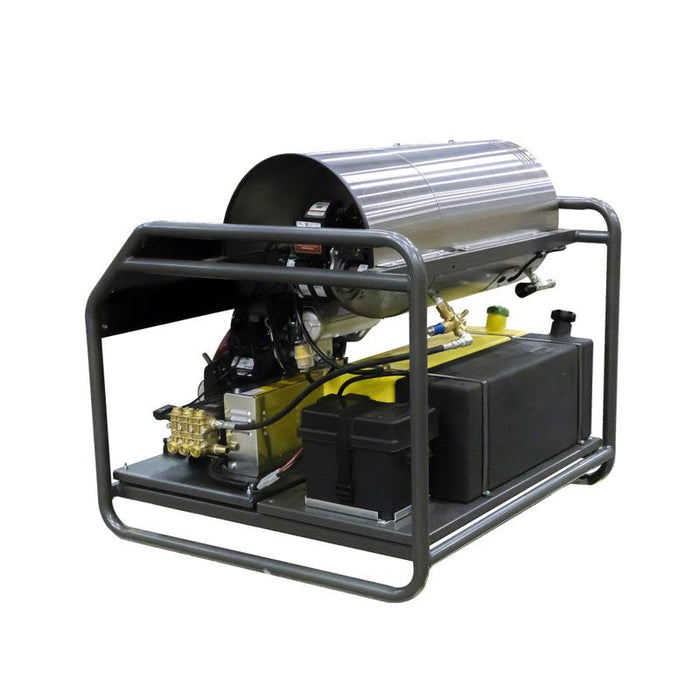

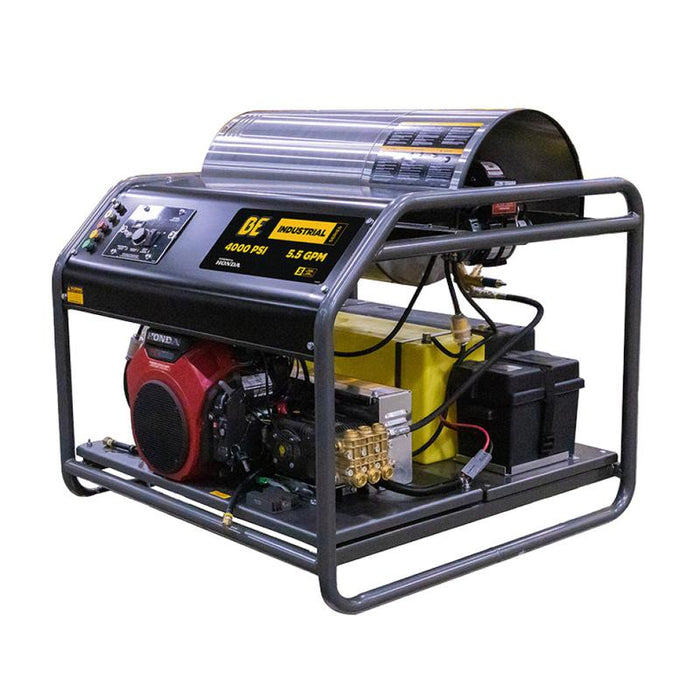

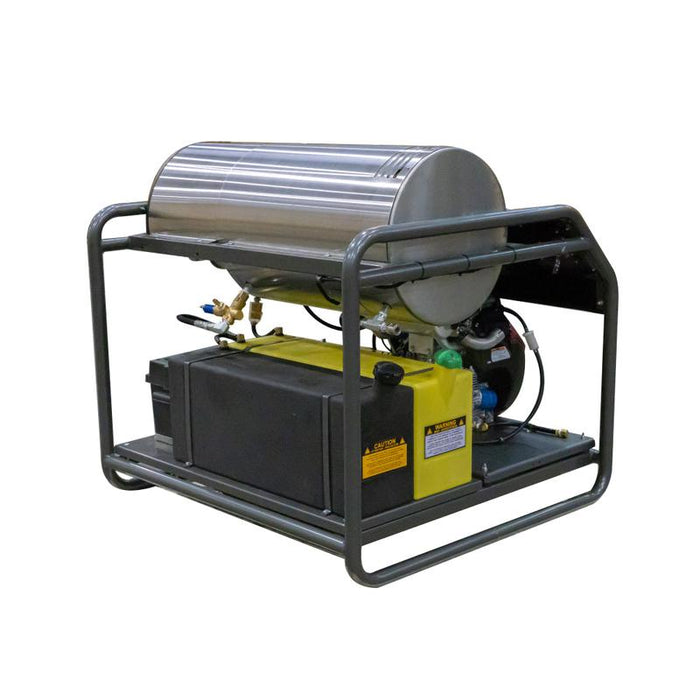

BE Power Equipment HW4024HA12V 4,000 PSI 5.5 GPM Hot Water Pressure Washer with Honda GX690 Engine and AR Triplex Pump
4,000 PSI at 5.5 GPM Hot Water Pressure Washer for Heavy Commercial Work
The BE Power Equipment HW4024HA12V delivers 4,000 PSI at 5.5 GPM with heated water up to 200 degrees Fahrenheit, producing 22,000 cleaning units per minute. The 5.5 GPM flow rate combined with 4,000 PSI pressure makes this one of the most powerful hot water units in the BE lineup. The 12V Beckett diesel-fired burner heats water through the coil for industrial degreasing, concrete restoration, heavy equipment cleaning, and paint removal.
Honda GX690 V-Twin with Belt-Driven AR Triplex Pump
The Honda GX690 V-Twin engine with electric start powers a belt-driven AR industrial triplex pump with a reinforced body, forged brass manifold, solid ceramic plungers, and stainless steel check valves. Belt drive is essential at 5.5 GPM output, absorbing the higher mechanical loads and vibration that would shorten pump life in a direct-drive setup. A 55AH AGM marine battery is included for the 12V electric start and burner.
Skid-Mount Steel Roll Cage for Permanent Installation
The powder-coated 1.5-inch OD steel roll cage frame is built for truck or trailer mounting. At 975 pounds and 48 x 46 x 51 inches, the HW4024HA12V requires a permanent mounting platform. Oil drain hoses on both the engine and pump provide clean access for field maintenance. The 50-foot high-pressure steel braided hose, insulated spray gun wand assembly, and five quick-connect nozzles are included.
Product Specifications
| Pressure (PSI) | 4,000 PSI |
| Flow Rate (GPM) | 5.5 GPM |
| Engine | Honda GX690 V-Twin with electric start |
| Pump | Industrial-grade AR triplex with reinforced body, forged brass manifold, solid ceramic plungers, and stainless steel check valves |
| Drive Type | Belt drive system for reduced vibration and extended pump life |
| Unloader | External unloader valve for improved cooling and performance |
| Burner | 12V Beckett diesel-fired burner |
| Maximum Temperature | Up to 200 degrees F / 93 degrees C |
| Battery | 55AH AGM marine battery included |
| Thermostat | Adjustable with on/off rocker switch control |
| Hose Length | 50' high-pressure steel braided hose |
| Spray Gun & Wand | Insulated spray gun wand assembly |
| Nozzles Included | Five quick-connect spray nozzles (0 degrees , 15 degrees , 25 degrees , 40 degrees , soap) |
| Frame | Powder-coated 1.5" OD steel roll cage frame designed for truck or trailer mounting |
| Oil Drain Hoses | Installed on both engine and pump for cleaner and easier maintenance |
| Shipping Weight | 975 lbs |
| Dimensions | 48" x 46" x 51" |
Emission Compliance Notice
This product is equipped with a Honda engine rated as 49-state compliant (EPA approved). This engine does not meet California Air Resources Board (CARB) emission standards. This model is not available for sale or shipment to California.
What's In the Box
- Spray gun
- Wand assembly
- Quick-connect nozzles (0 degrees , 15 degrees , 25 degrees , 40 degrees , Soap)
