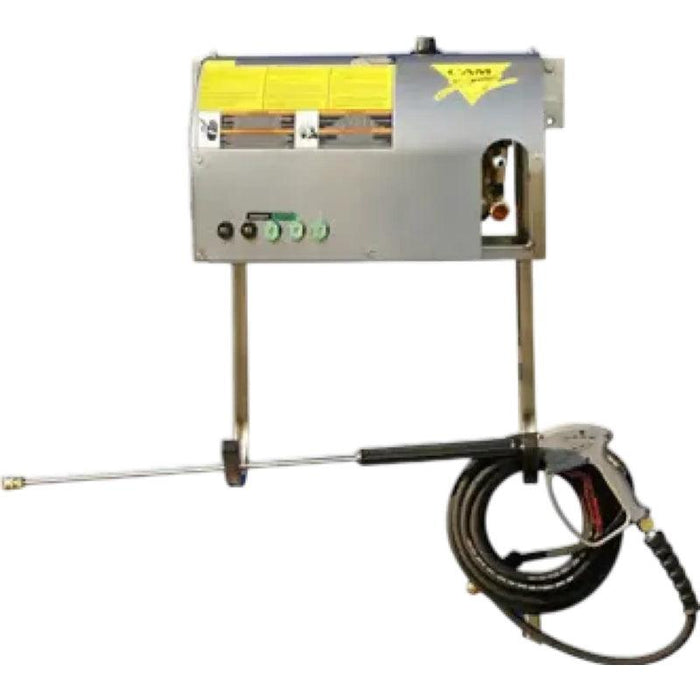

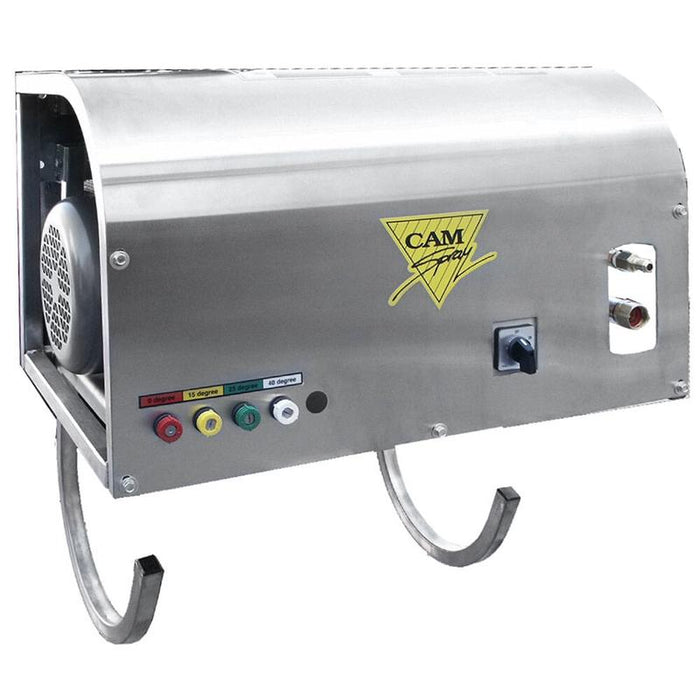

Cam Spray 1500WM/SSA Pressure Washer Electric Powered Deluxe Wall Mount Cold Water 3 GPM 1,500 PSI Auto Start/Stop
Cam Spray 1500WM/SSA Wall Mount Pressure Washer with Auto Start/Stop
The Cam Spray 1500WM/SSA adds automatic start/stop functionality to the stainless steel 1500WM platform. Pull the trigger and the 3 HP motor starts. Release it and the motor shuts off. This feature reduces energy consumption and motor wear during intermittent wash tasks. The unit delivers 1,500 PSI at 3 GPM on 230-volt, 20-amp single-phase power.
Auto Start/Stop for Walk-Away Convenience
In busy wash bays and detail shops, operators frequently pause between vehicles or sections. The auto start/stop system on the 1500WM/SSA eliminates idle run time, extending motor and pump life. The stainless steel frame resists corrosion from constant water and chemical contact. At 210 pounds and 23 x 16 x 31 inches, it mounts compactly on any reinforced wall.
Triplex Pump with Dual Detergent Switching
The industrial triplex plunger pump uses ceramic plungers and stainless steel valves for consistent output over thousands of hours. A dual chemical valve lets the operator toggle between two detergent concentrates without disconnecting lines. The 50-foot by 3/8-inch hose and 35-foot GFCI power cord give the operator freedom to work well away from the mount point.
Features
- Proven Design: Deluxe Wall Mount cold water electric-powered unit, a Cam Spray favorite for over 25 years.
- Durable Construction: Available in a full stainless steel frame for tough environments.
- Protective Cover: Shields your investment and includes grommets for Q-Meg nozzle storage.
- Easy Wall Mounting: Securely installs using a reinforced wall bracket with a slide-in frame design.
- Convenient Storage: Frame includes two hooks for hose and trigger gun storage.
- Dual Chemical Valve: Allows switching between two detergent concentrates and adjusting proportions with ease.
- Industrial Motor: Totally enclosed and thermal overload protected for reliability.
- Triplex Plunger Pump: Features ceramic plungers and stainless steel valves, protected by an unloader valve.
- Efficient Detergent Application: Low-pressure chemical injection activated by the soap tip.
- Included Accessories: Comes with 0 degrees , 15 degrees , 25 degrees , and 40 degrees Q-Meg tips and a trigger gun.
- Auto Start/Stop: Automatically starts and stops the motor for efficiency and ease of use.
- Attention CA Residents: Prop 65 Warning
Specifications
|
Water Type |
Cold |
|
Powered By |
Electric Motor |
|
Mounting Type |
Wall Mount |
|
Flow Rate (GPM / LPM) |
3 / 11.4 |
|
Horsepower |
3 |
|
Product Dimensions |
23” × 16” × 31” |
|
Voltage / Amperage / Phase |
230 Volt / 20 Amp / 1 |
|
Pump Thermal Protection |
Mechanical |
|
Max Pump Inlet Water Temp |
160 degrees F |
|
Hose Dimension |
50’ × 3/8” |
|
Power Cord |
35’ with GFCI |
|
Ship Weight |
210 |
|
Pressure (PSI / Bar) |
1500 / 103.5 |
Max PSI |
1,500 PSI |
Flow Rate (GPM) |
3 GPM |
Voltage |
230V |
Amperage |
20A |
Fuel Type |
Electric |
Pump Type |
Triplex Plunger |
