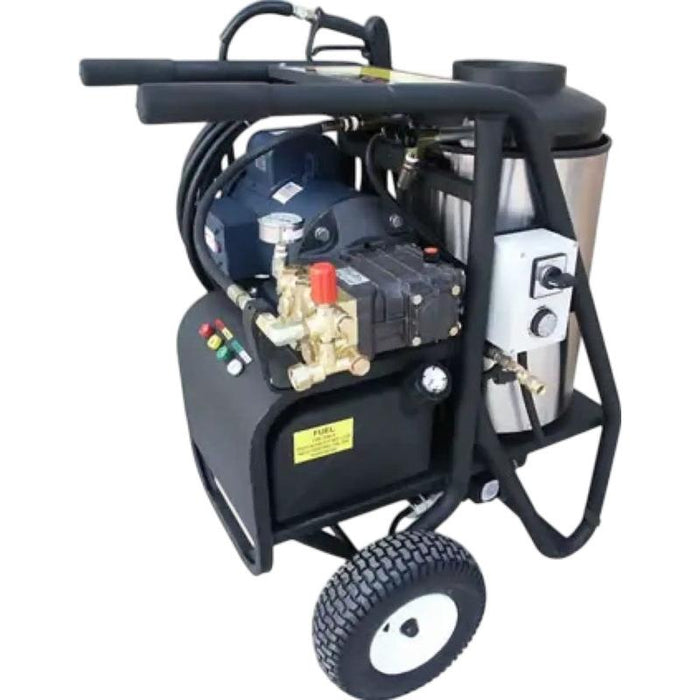

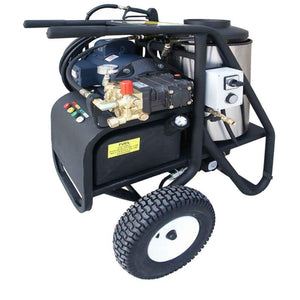

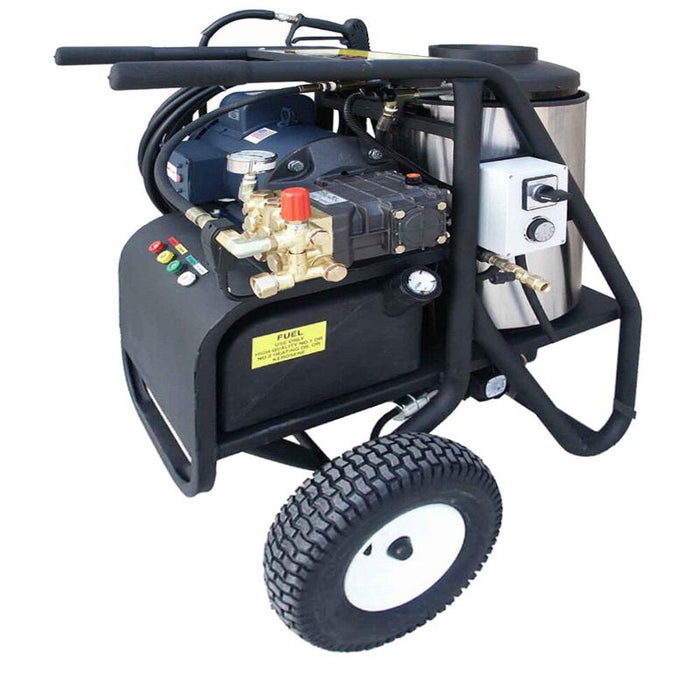

Cam Spray 2000SHDE Pressure Washer Electric Powered Diesel Fired Hot Water 4 GPM 2,000 PSI

Cam Spray 2000SHDE Hot Water Cart Pressure Washer

Producing 2,000 PSI at 4 GPM, the Cam Spray 2000SHDE generates 8,000 cleaning units with diesel-heated water at up to 195 degrees Fahrenheit. The 4 GPM flow rate covers more surface area per pass than lower-flow SHDE models, making this unit effective for fleet washing, concrete degreasing, and food processing facility cleanup. A 230-volt, 28-amp electric motor powers the system quietly indoors.

5 HP Motor Paired with Diesel Burner

The 5 HP enclosed motor with thermal overload protection drives a triplex plunger pump outputting 4 gallons per minute at full pressure. The diesel burner heats incoming water through a schedule 80 coil with stainless steel wrap, controlled by an adjustable thermostat and temperature limit switch. The 5-gallon diesel tank provides extended run time between refills. At 430 pounds, the 2000SHDE is the heaviest model in the standard SHDE cart series.

High-Flow Hot Water on a Two-Wheel Cart

The 34 x 27 x 47 inch cart with two 13-inch wheels handles the 430-pound weight while remaining maneuverable. Built-in hose and wand holders store the 50-foot by 3/8-inch hose and dual wand. The 35-foot GFCI power cord reaches distant outlets, and low-pressure chemical injection through the soap tip adds detergent capability for tough grease removal jobs.

Features

• Economical Hot Water Cleaning: Designed for cost-effective hot water pressure washing applications.
• Portable Frame: Includes a hose and wand holder, with easy mobility on two 13" wheels.
• Accessory Compatibility: Female socket allows for optional accessory reel mounting.
• Reliable Motor and Pump: Features a fully enclosed, thermal overload-protected industrial motor and a triplex plunger pump with ceramic plungers and stainless steel valves.
• Chemical Injection and System Protection: Equipped with low-pressure chemical injection, unloader valve, and secondary pressure pop-off for added safety.
• Efficient Burner System: Includes a rust-free fuel tank, schedule 80 coil with stainless steel wrap, adjustable thermostat, and temperature limit switch for up to 195 degrees F.
• Heavy-Duty Trigger Gun: Dual wand with a side handle valve allows easy switching between high-pressure cleaning and detergent application.
• Quick-Change Nozzles: Includes 0 degrees , 15 degrees , 25 degrees , and 40 degrees nozzles for versatile cleaning tasks.
• Attention CA Residents: Prop 65 Warning

Specifications

What's In the Box

• High-pressure hose (50' x 3/8")
• Heavy-duty trigger gun
• Dual wand with side handle valve
• Quick change nozzles (0 degrees , 15 degrees , 25 degrees , 40 degrees )
• 35' power cord with GFCI (varies by model)

Manuals and Documents

• Electric Hot Water Pressure Washer Manual
• Electric Hot Water Skid Manual
