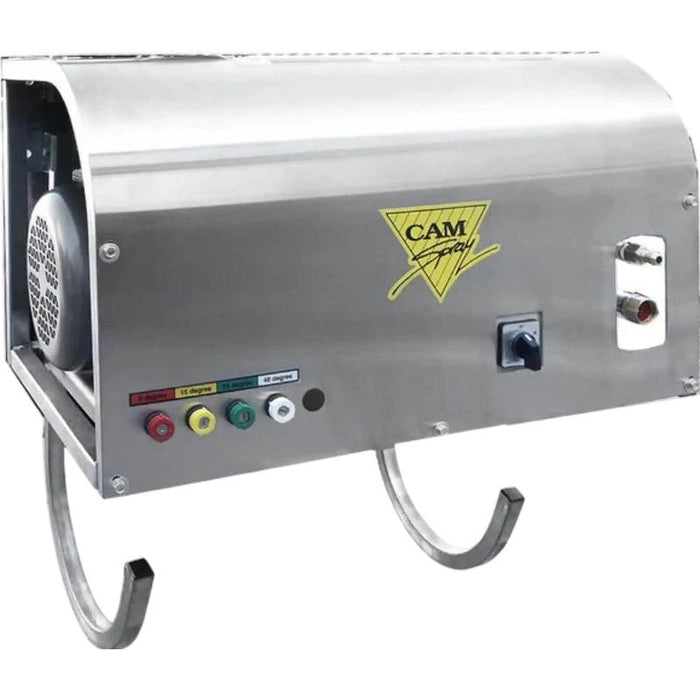

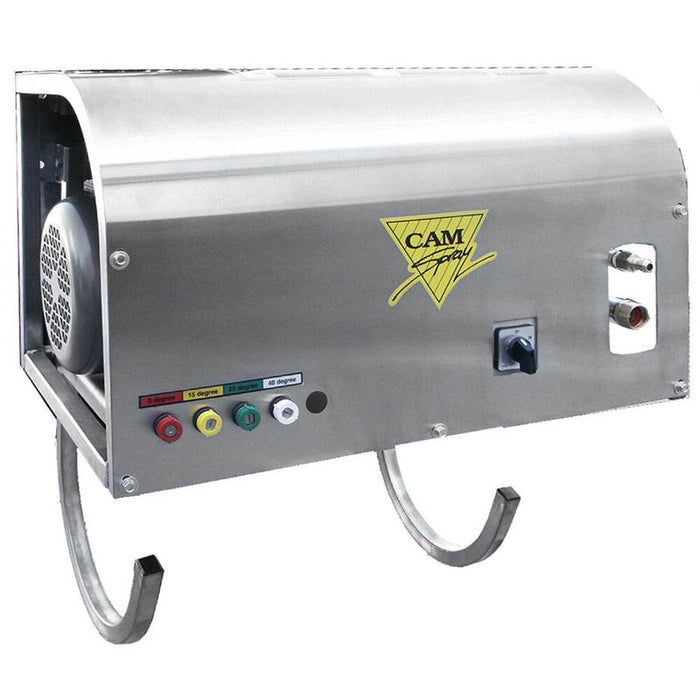

Cam Spray 3000WM/SSM3 Pressure Washer 208V-230V Electric Powered Deluxe Wall Mount Cold Water 4 GPM 3,000 PSI

Cam Spray 3000WM/SSM3 Three-Phase Wall Mount (208-230V)

For facilities with 208-230 volt three-phase power, the Cam Spray 3000WM/SSM3 pushes 3,000 PSI at 4 GPM through a 7.5 HP three-phase motor. Three-phase operation delivers smoother power delivery and lower amperage draw than single-phase alternatives at this output level. The stainless steel wall mount frame handles corrosive wash environments in manufacturing, fleet maintenance, and food processing operations.

Three-Phase Motor Advantages

The 7.5 HP three-phase motor runs cooler and more efficiently than its single-phase counterpart, which draws 34 amps versus the lower three-phase requirement. The 28 x 22 x 30 inch stainless steel frame slides onto a permanent wall bracket. At 270 pounds, the unit requires a properly reinforced mounting surface. A 10-foot power cord connects to the facility panel.

Maximum Wall-Mount Output

At 12,000 cleaning units, the 3000WM/SSM3 is tied for the highest output in the Cam Spray wall mount catalog. The triplex plunger pump with ceramic plungers and stainless steel valves is protected by an unloader valve for safe deadhead operation. Included Q-Meg tips in 0, 15, 25, and 40 degree patterns, a trigger gun, and dual chemical valve complete the package.

Features

• Proven Design: Popular wall-mount unit, trusted for over 25 years.
• Durable Construction: Available in full stainless steel frame for heavy-duty environments, with a protective cover.
• Easy Wall Mounting: Easily mounts to a reinforced wall using a permanent mounting bracket and slides into place.
• Convenient Storage: Includes two hooks for storing the hose and trigger gun, plus grommets for Q-Meg nozzle storage.
• Dual Chemical Valve: Choose between two concentrate chemicals and control detergent proportion with a simple knob.
• Powerful Performance: 3,000 PSI with an industrial motor, fully enclosed and thermal overload protected.
• Commercial-grade Pump: Industrial triplex plunger pump with ceramic plungers and stainless steel valves, protected by an unloader valve.
• Chemical Injection: Low-pressure chemical injection system, activated using the soap tip for detergent application.
• Included Accessories: Comes with 0 degrees , 15 degrees , 25 degrees , and 40 degrees Q-Meg tips and a trigger gun.
• Attention CA Residents: Prop 65 Warning

Specifications

Manuals and Documents

• Electric Cold Water Pressure Washer Manual
• Electric Hot Water Skid Manual
