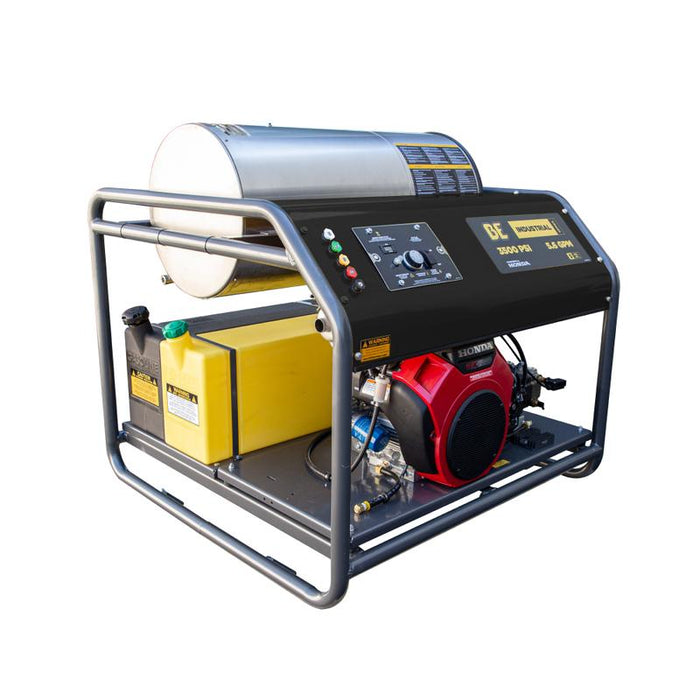

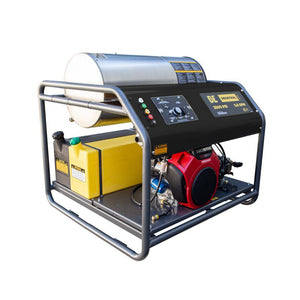

BE Power Equipment 3HW3524HG12V 3,500 PSI 5.6 GPM Hot Water Pressure Washer Honda GX690 Engine and General Triplex Pump
3,500 PSI Hot Water Pressure Washer for Industrial Degreasing
The BE Power Equipment 3HW3524HG12V produces 3,500 PSI at 5.6 GPM with water heated up to 200 degrees Fahrenheit through a 12V Beckett diesel-fired burner. At this pressure and flow combination, the unit moves over 19,600 cleaning units per minute. Hot water dissolves grease, oil, and organic buildup significantly faster than cold water, reducing labor time on large-scale commercial and industrial cleaning projects.

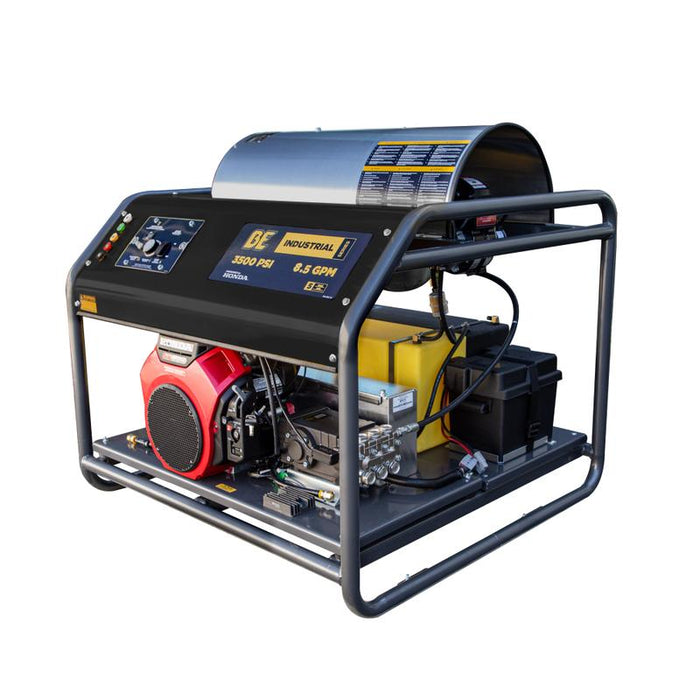

Honda GX690 V-Twin with Belt-Driven General Triplex Pump
The Honda GX690 V-Twin engine with electric start powers this unit through a belt-driven General triplex pump featuring a reinforced body, forged brass manifold, solid ceramic plungers, and stainless steel check valves. Belt drive reduces vibration transfer to the pump and extends service intervals compared to direct-drive configurations. A 55AH AGM marine battery is included for the 12V electric start system.

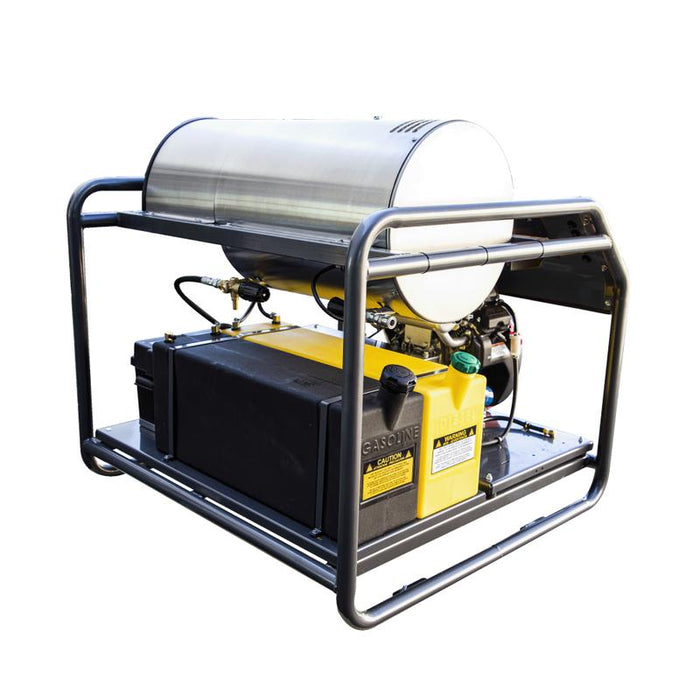

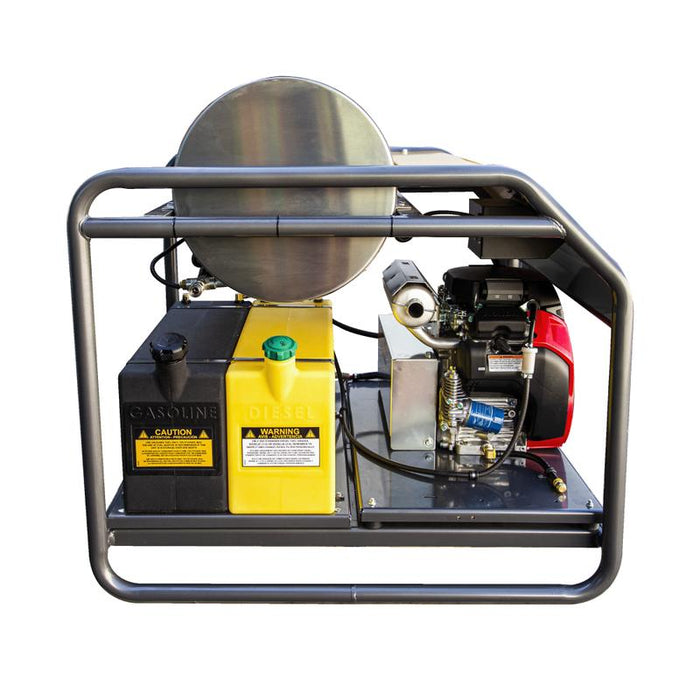

Skid-Mount Frame for Truck and Trailer Installation
Built on a powder-coated 1.5-inch OD steel roll cage, the 3HW3524HG12V is designed for truck or trailer mounting. The frame includes a center-balanced lift point for loading and positioning. At 975 pounds, this is a stationary skid unit built for permanent installation on service vehicles and mobile cleaning rigs. Oil drain hoses on both the engine and pump allow for clean, fast maintenance in the field.
Product Specifications
| Pressure (PSI) | 3,500 PSI |
| Flow Rate (GPM) | 5.6 GPM |
| Engine | Honda GX690 V-Twin with electric start |
| Pump | General industrial-grade triplex with reinforced body, forged brass manifold, solid ceramic plungers, and stainless steel check valves |
| Drive Type | Belt drive system for reduced vibration and extended pump life |
| Unloader | External unloader valve for better cooling and pressure regulation |
| Burner | 12V Beckett diesel-fired burner |
| Maximum Temperature | Adjustable up to 200 degrees F / 93 degrees C |
| Battery | 55AH AGM marine battery included |
| Thermostat | Adjustable with on/off rocker switch |
| Hose Length | 50' steel braided high-pressure hose |
| Spray Gun & Wand | Insulated spray gun wand assembly |
| Nozzles Included | Five quick-connect spray nozzles (0 degrees , 15 degrees , 25 degrees , 40 degrees , soap) |
| Frame | Powder-coated 1.5" OD steel roll cage designed for truck/trailer mounting |
| Oil Drain Hoses | Installed on both engine and pump for clean, quick maintenance |
| Shipping Weight | 975 lbs |
| Dimensions | 48" x 46" x 51" |
Emission Compliance Notice
This product is equipped with a Honda engine rated as 49-state compliant (EPA approved). This engine does not meet California Air Resources Board (CARB) emission standards. This model is not available for sale or shipment to California.
What's In the Box
- Spray gun
- Wand assembly
- Quick-connect nozzles (0 degrees , 15 degrees , 25 degrees , 40 degrees , Soap)
