BE Power Equipment 67HD-3 3,000 PSI 5.0 GPM Hot Water Electric Pressure Washer, 10 HP 208 to 230 V 3 Phase Baldor Motor, General Belt Drive Pump
Choose a liftgate option to add this machine to the cart.
This machine ships free by freight carrier to a commercial address with a loading dock or forklift, or to the carrier's terminal for pickup. Liftgate service brings the crate to your address and lowers it to the ground at the curb, one flat fee per order. Crated weight about 835 lb. Delivery takes 5 to 8 business days. Questions? Call (219) 327-1138.
Is this the right machine for my job?
Answer a few quick questions and see whether the BE 67HD-3 fits your job, your site and your water supply, or which machines fit better.
The BE 67HD-3 is the three phase build of the 67HD: a 10 HP Baldor motor on 208 to 230 volt three phase turns a General TS2021 triplex pump through a belt at 1,750 RPM for 3,000 PSI at 5.0 GPM. The electronic ignition burner runs on natural gas or LP at up to 440,000 BTU and heats water to 200 degrees, so a plant, a fleet garage or a sanitation floor with three phase service and gas on the wall gets a fixed hot water station with no diesel to store.
BE 67HD-3 3,000 PSI 5.0 GPM Stationary Hot Water Electric Pressure Washer with 10 HP Baldor Three Phase Motor, Belt Driven General Pump and Natural Gas or LP Burner

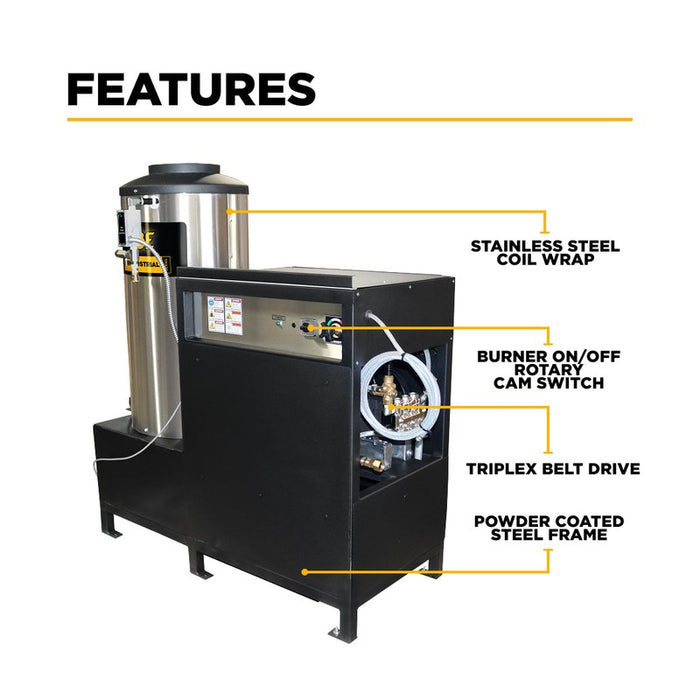

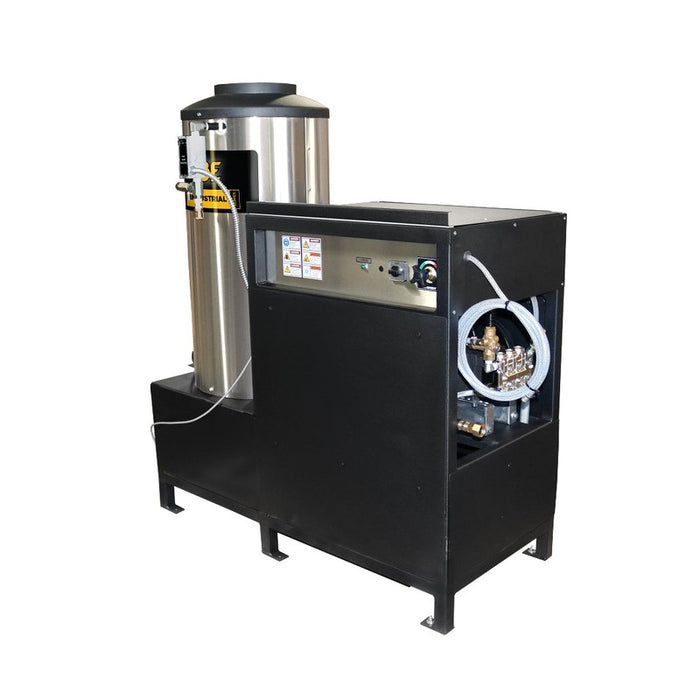

The 67HD-3 is a stationary industrial hot water unit rated 3,000 PSI at 5.0 GPM. A 10 HP Baldor electric motor on 208 to 230 V three phase power turns at 1,750 RPM and drives a General TS2021 triplex pump through a belt, which lowers heat, vibration and mechanical stress during long cleaning cycles.
Burner System on the BE 67HD-3

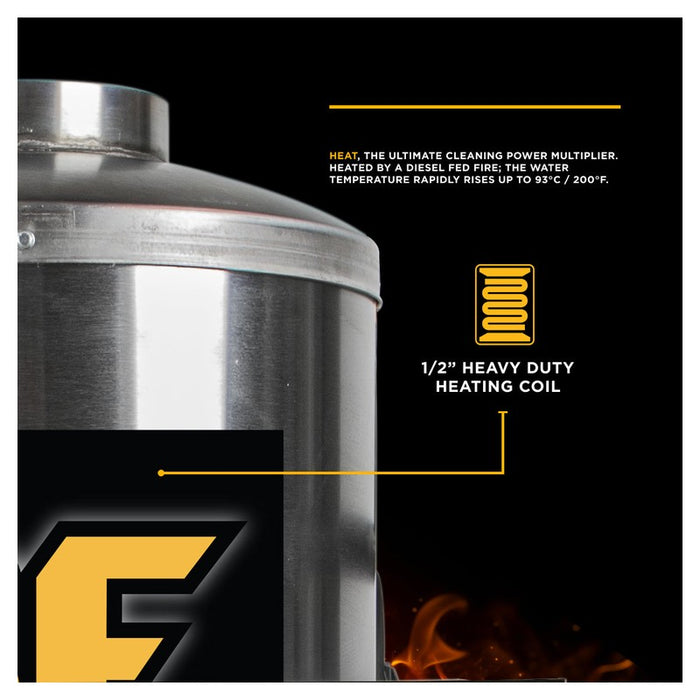

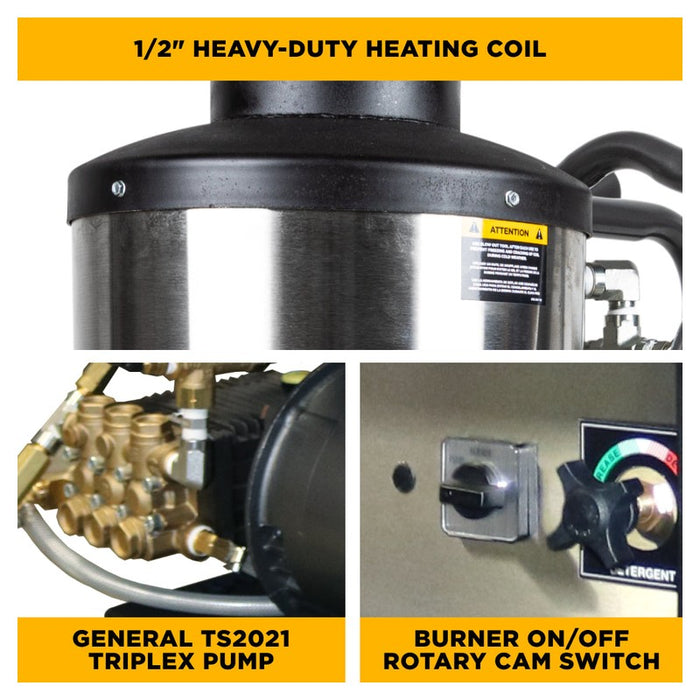

A high output electronic ignition burner compatible with natural gas or LP delivers up to 440,000 BTU and heats water to a maximum of 200 degrees Fahrenheit. The pump carries a forged brass manifold, solid ceramic plungers, a reinforced body and an external unloader for cooling.
Installation on the BE 67HD-3
Designed for fixed installation in manufacturing and processing facilities, fleet and heavy equipment maintenance bays, food processing and sanitation environments, industrial wash stations and parts degreasing operations. Motor draw is 35 to 34 A on 208 to 230 V three phase.
BE 67HD-3 Specifications

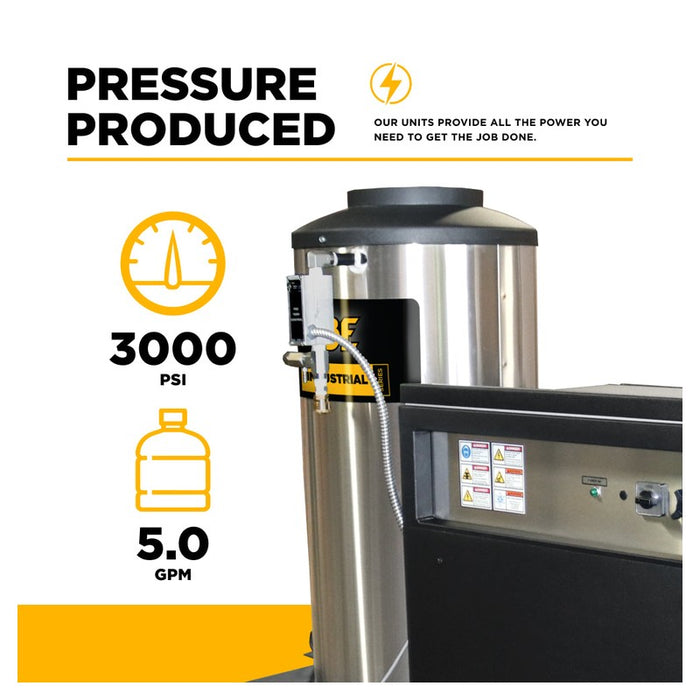

- Pressure: 3,000 PSI
- Flow: 5.0 GPM
- Motor: Baldor 10 HP electric, 1,750 RPM, 208 to 230 V three phase, 35 to 34 A
- Pump: General TS2021 belt drive triplex
- Water: hot, natural gas or LP burner with electronic ignition, up to 440,000 BTU, max 200 degrees F
- Installation: stationary industrial frame

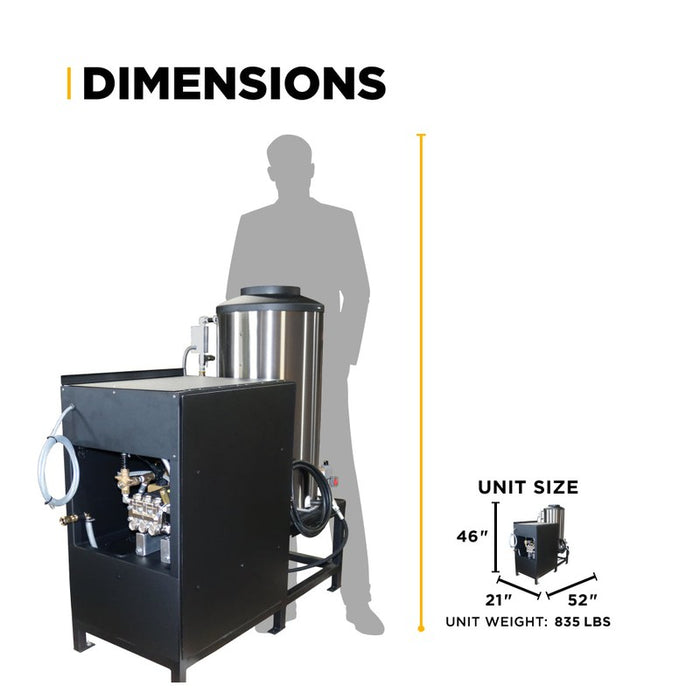

- Unit weight: 835 lb
- Model: 67HD-3
