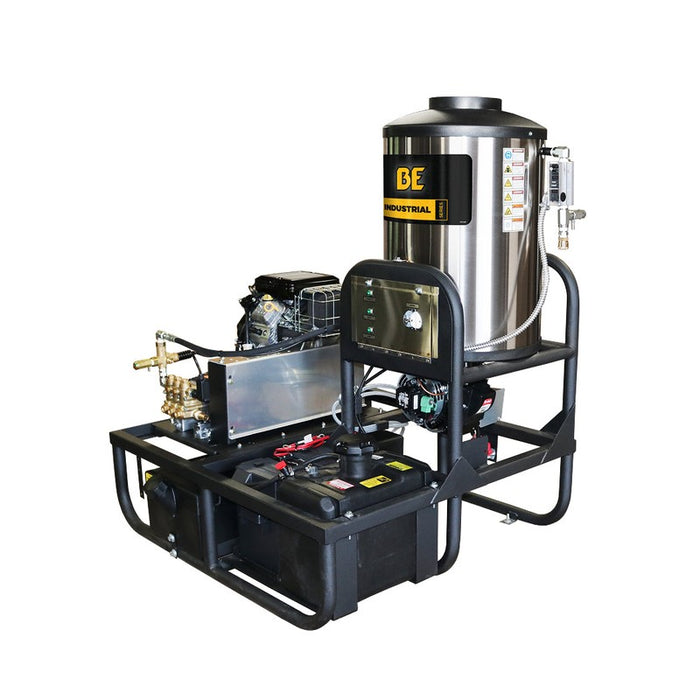

BE Power Equipment Z5535CPBDV hot water skid pressure washer with Vanguard engine, front view

BE Power Equipment Z5535CPBDV 3,500 PSI 5.2 GPM Hot Water Skid Pressure Washer, Vanguard 18 HP Electric Start, Comet Belt Drive Pump

$6,678.00 - $6,678.00

$6,678.00

$6,678.00 - $6,678.00

$6,678.00

In stock, ready to ship

Liftgate Service*

This machine ships free by freight carrier to a commercial address with a loading dock or forklift, or to the carrier's terminal for pickup. Liftgate service brings the crate to your address and lowers it to the ground at the curb, one flat fee per order. Crated weight about 750 lb. Delivery takes 5 to 8 business days. Questions? Call (219) 327-1138.

Is this the right machine for my job?

Answer a few quick questions and see whether the BE Z5535CPBDV fits your job, your site and your water supply, or which machines fit better.

Takes under a minute. No email needed to see results.

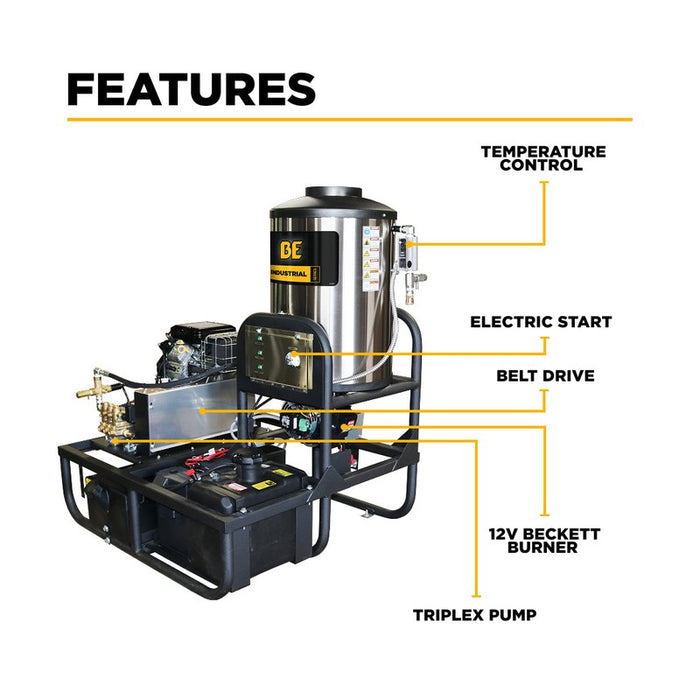

The BE Z5535CPBDV is the same industrial hot water skid as the Z5535CPBDH with a Vanguard 18 HP 570cc V twin in place of the Honda: electric start, a Comet RW5535 belt drive triplex pump at 3,500 PSI and 5.2 GPM, and a diesel burner rated 350,000 BTU per hour with up to 165 degrees of temperature rise for kitchens, government buildings and contract sites. The extra heavy duty powder coated frame is truck and trailer mount ready with an enclosed belt guard, and the coil wrap and coil skin tank are stainless.

BE Z5535CPBDV 3,500 PSI 5.2 GPM Hot Water Skid Pressure Washer with Vanguard 18 HP Electric Start, Comet Belt Drive Pump and Diesel Burner

The Z5535CPBDV is an industrial series hot water skid rated 3,500 PSI at 5.2 GPM. A Vanguard 18 HP 570cc V twin engine with electric start drives a Comet RW5535 belt drive triplex pump, and a diesel fired burner supplies the heat for commercial kitchens, government buildings and commercial sites.

Burner and Coil on the BE Z5535CPBDV

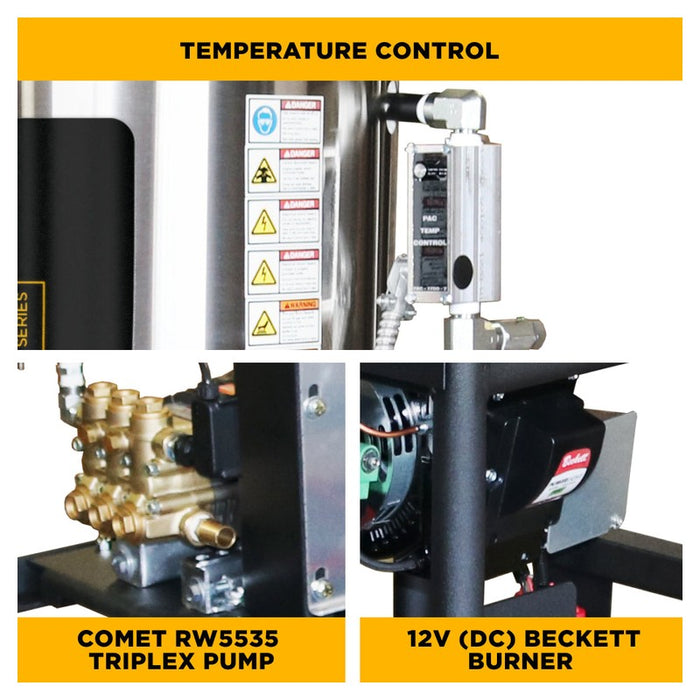

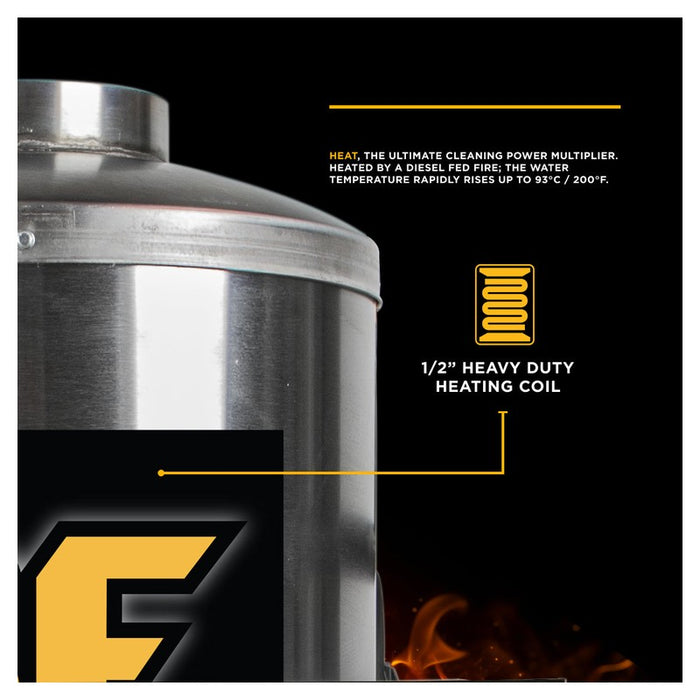

The diesel fueled burner with high limit switch produces up to 350,000 BTU per hour and a temperature rise of up to 165 degrees Fahrenheit. The Schedule 80 carbon steel heating coil is wrapped in stainless steel, and the coil skin water tank is stainless as well. A stainless control panel carries diagnostic LED lights.

Frame and Included Equipment on the BE Z5535CPBDV

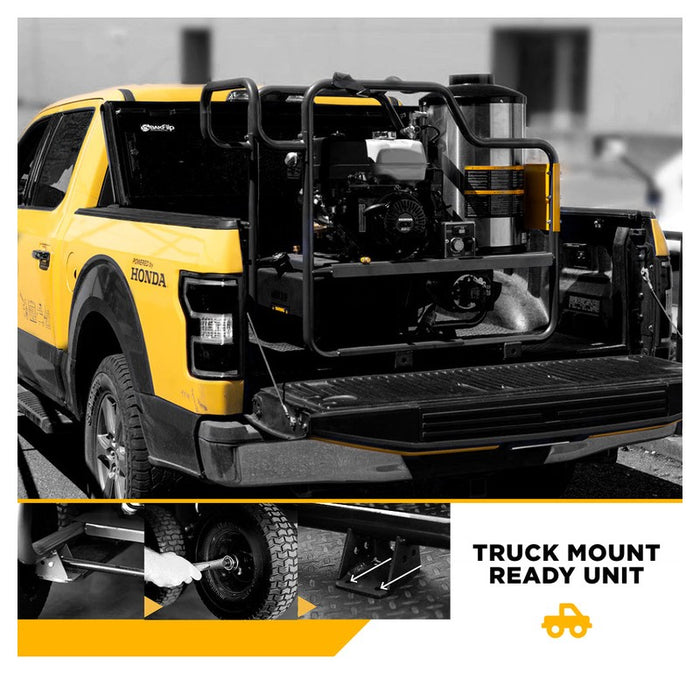

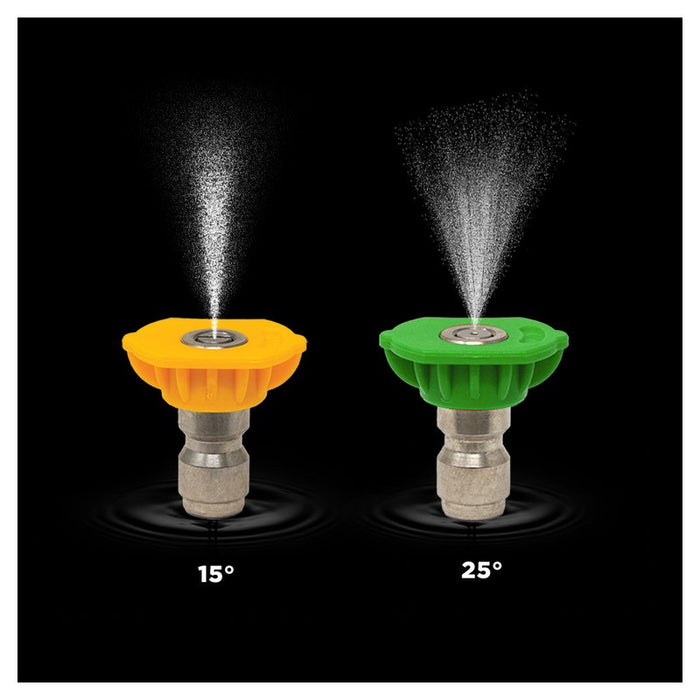

The extra heavy duty powder coated steel frame is truck and trailer mount ready, and the enclosed belt guard protects the drive. The Comet pump has a reinforced body, forged brass manifold and solid ceramic plungers with an external unloader. Included: 50 foot twin wire braided high pressure hose, insulated commercial spray gun with 48 inch wand, and quick connect nozzles.

BE Z5535CPBDV Specifications

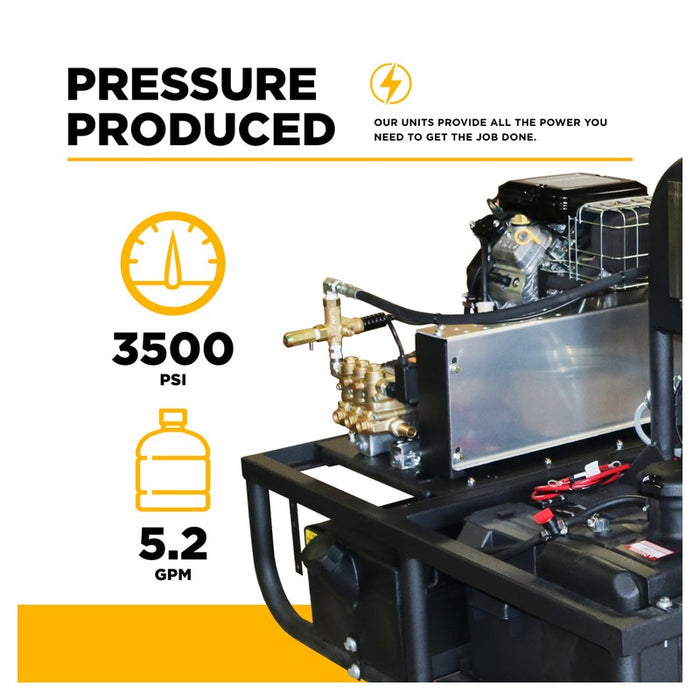

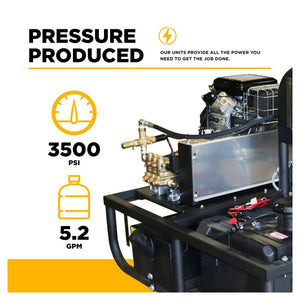

Pressure: 3,500 PSI
Flow: 5.2 GPM
Engine: Vanguard 18 HP, 570cc V twin, electric start
Pump: Comet RW5535 belt drive triplex
Water: hot, diesel fired burner, 350,000 BTU per hour, up to 165 degree F rise
Coil: Schedule 80 carbon steel, stainless wrapped
Frame: heavy duty powder coated steel skid, truck or trailer mount ready
Hose: 50 ft high pressure

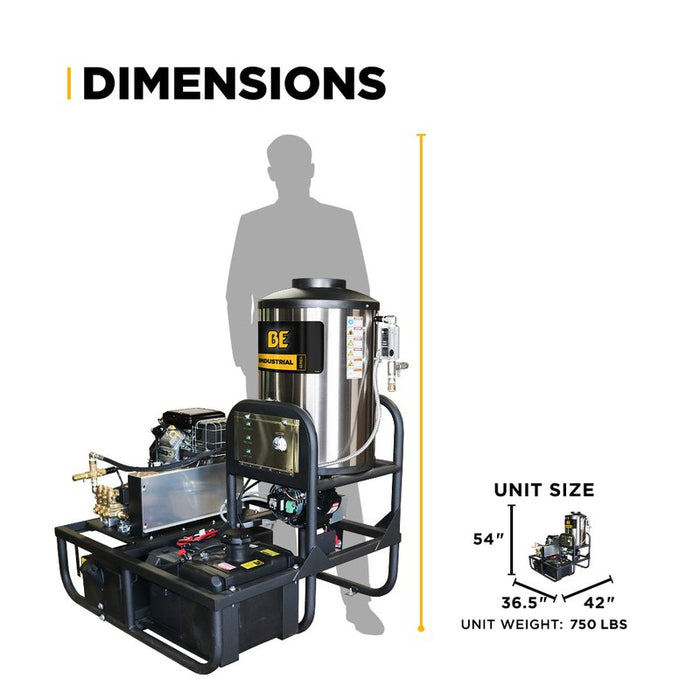

Unit weight: 750 lb
Model: Z5535CPBDV
