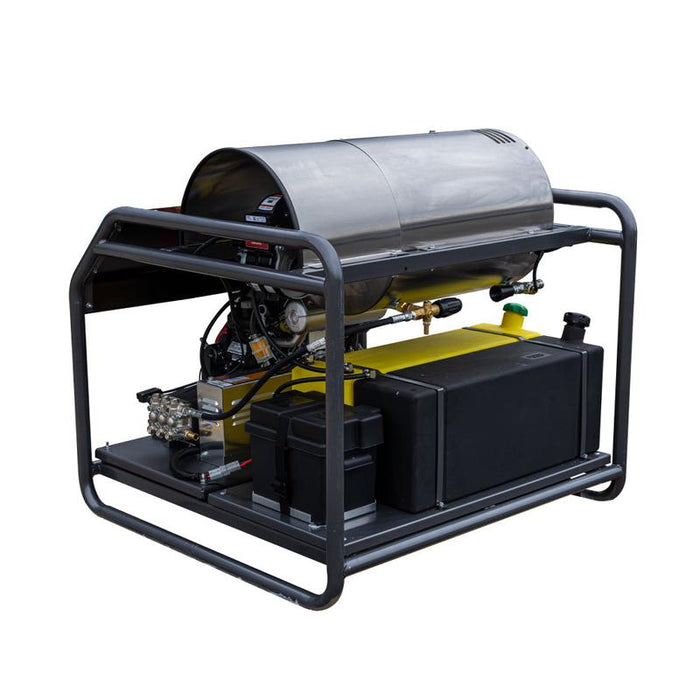

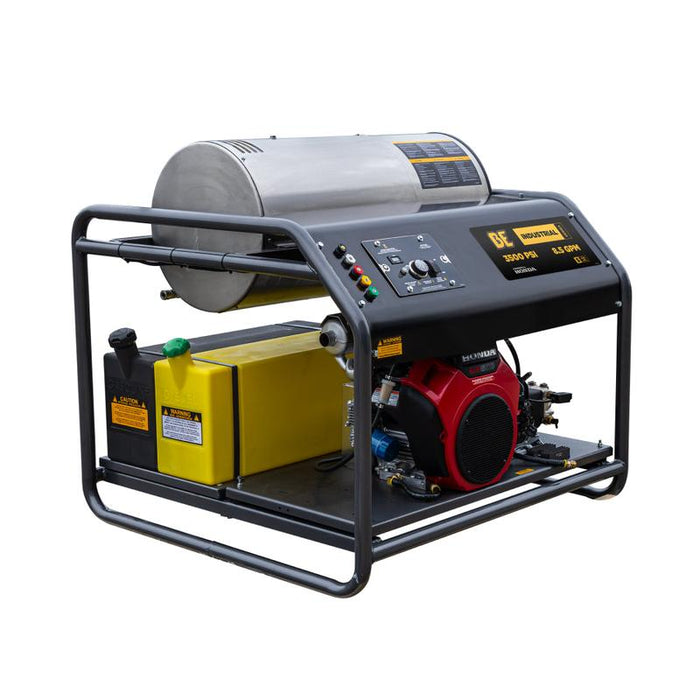

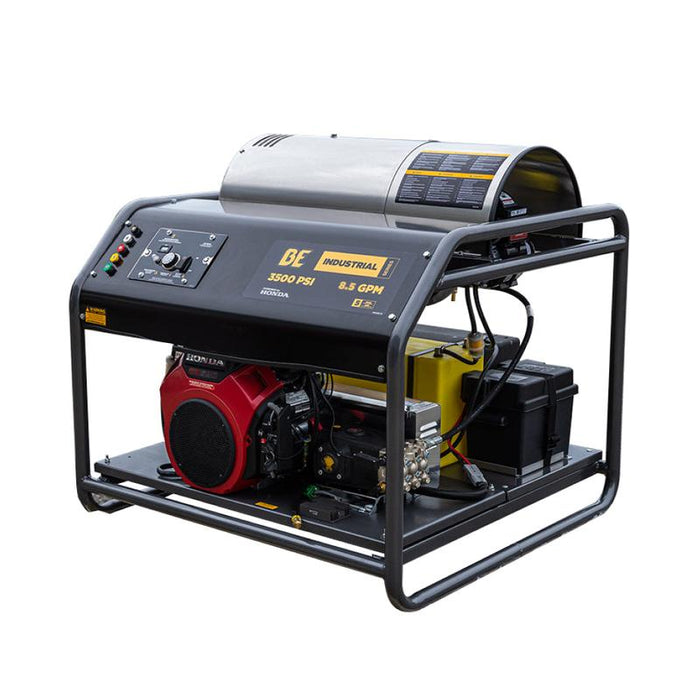

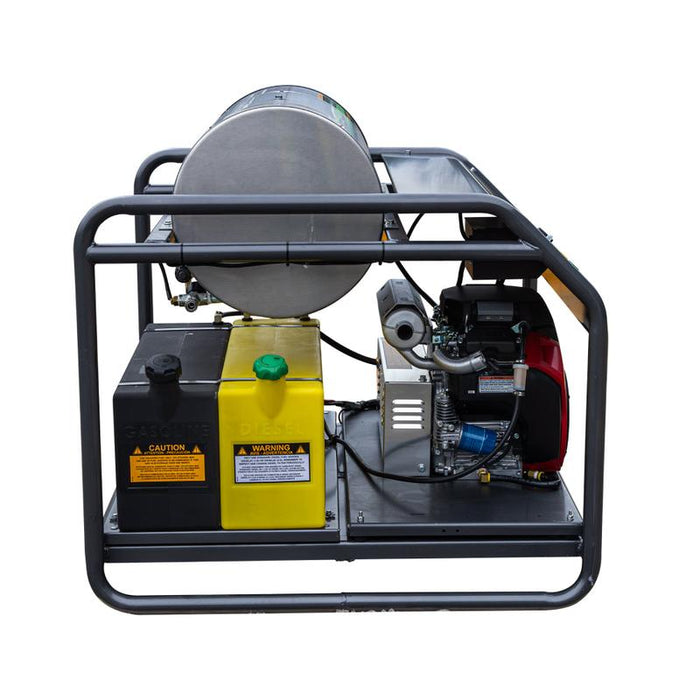

BE Power Equipment HW3524HA12V 3,500 PSI 8.5 GPM Hot Water Pressure Washer Honda GX690 Engine and AR Triplex Pump
3,500 PSI at 8.5 GPM Hot Water Pressure Washer
The BE Power Equipment HW3524HA12V produces 3,500 PSI at 8.5 GPM with heated water up to 200 degrees Fahrenheit, delivering 29,750 cleaning units per minute. This is one of the highest-output hot water units in the BE Power Equipment catalog. The combination of high pressure and high flow handles industrial degreasing, concrete restoration, paint removal, and heavy equipment cleaning where both speed and stripping power matter.
Honda GX690 V-Twin Engine with Belt-Driven AR Triplex Pump

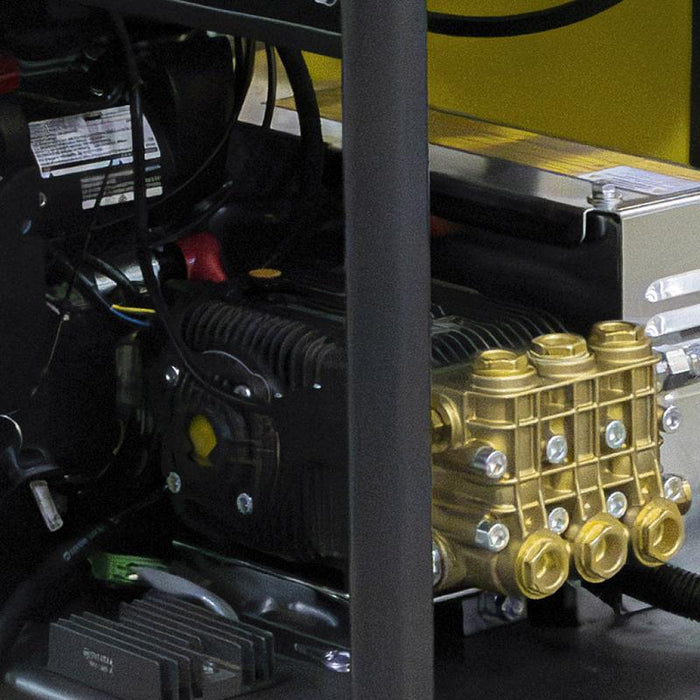

A Honda GX690 V-Twin engine with electric start powers a belt-driven AR industrial triplex pump with a reinforced body, ceramic plungers, and forged brass manifold. The belt-drive configuration is critical at this flow rate, isolating the pump from engine vibration and reducing component wear during sustained 8.5 GPM operation. The diesel-fired 12V Beckett burner heats water through the coil, and a 55AH marine-grade AGM battery is included for the electric start and burner systems.
Truck-Mount Skid Frame Built for Service Fleets
Weighing 975 pounds on a powder-coated 1.5-inch OD steel roll cage, the HW3524HA12V is built for permanent mounting on flatbed trucks, trailers, and dedicated cleaning rigs. Oil drain hoses on both the engine and pump are factory-installed for clean maintenance access without dismounting the unit. The 50-foot steel-braided hose and insulated gun and wand assembly are included.
Product Specifications
| Pressure (PSI) | 3,500 PSI |
| Flow Rate (GPM) | 8.5 GPM |
| Engine | Honda GX690 V-Twin with electric start |
| Pump | AR industrial triplex - reinforced body, ceramic plungers, forged brass manifold |
| Drive Type | Belt-driven |
| Unloader | External for enhanced cooling and pump life |
| Burner | Diesel-fired 12V Beckett burner |
| Maximum Temperature | 200 degrees F (93 degrees C) |
| Battery | 55AH Marine-grade AGM included |
| Thermostat | Adjustable with rocker switch |
| Hose Length | 50-ft steel-braided hose |
| Spray Gun & Wand | Insulated gun/wand |
| Nozzles Included | 5 QC nozzles |
| Frame | Powder-coated 1.5" OD steel roll cage for mounting |
| Oil Drain Hoses | Installed on engine and pump for easy service |
| Mounting | Truck/trailer compatible |
| Weight | 975 lbs |
| Dimensions | 48" x 46" x 51" |
The actual product may vary slightly from the images shown due to continuous product improvements. All BE Power Equipment pressure washers are factory tested prior to shipment and may contain small traces of oil or fuel.
Emission Compliance Notice
This product is equipped with a Honda engine rated as 49-state compliant (EPA approved). This engine does not meet California Air Resources Board (CARB) emission standards. This model is not available for sale or shipment to California.
What's In the Box
- Spray gun
- Wand assembly
- 5 quick-connect nozzles
