Cam Spray 1000WM Pressure Washer Electric Powered Deluxe Wall Mount Cold Water 2 GPM 1,000 PSI

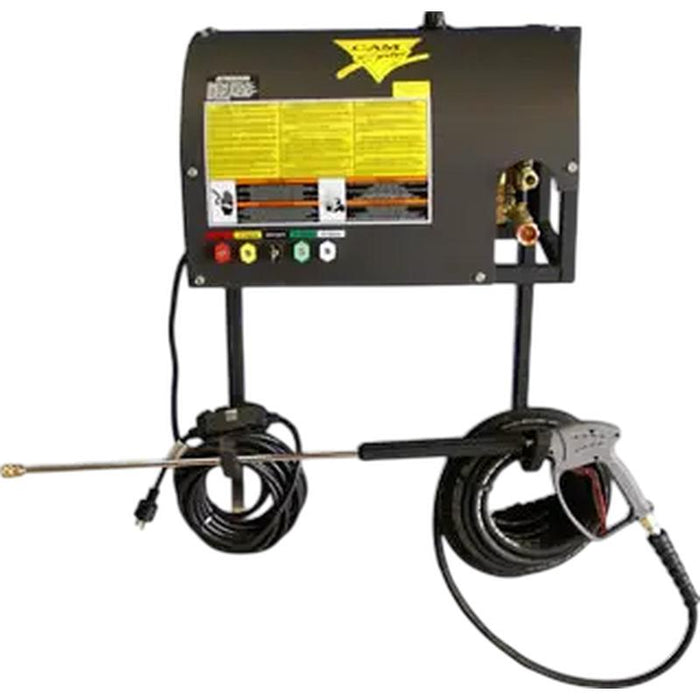

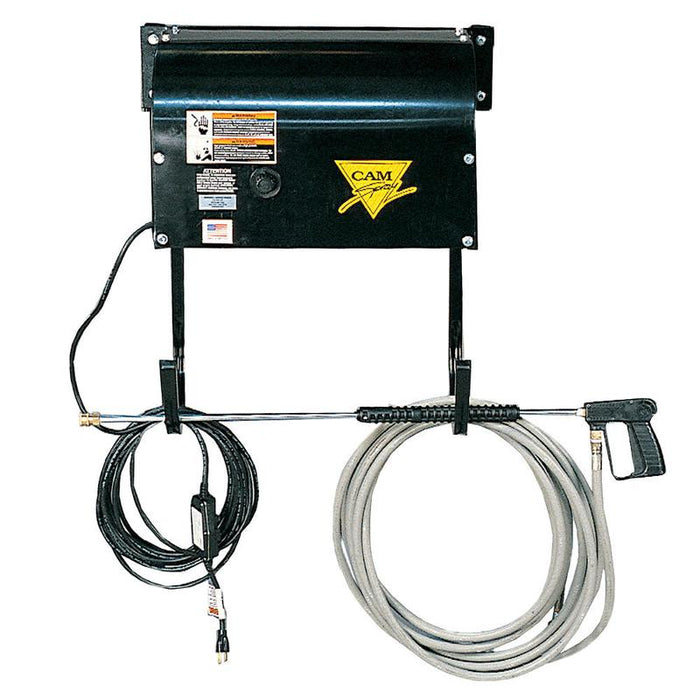

Cam Spray 1000WM Wall Mount Cold Water Pressure Washer
At 1,000 PSI and 2 GPM, the Cam Spray 1000WM is a wall-mounted cold water pressure washer built for permanent installation in wash bays, auto detail shops, and maintenance rooms. The 120-volt, 15-amp single-phase motor plugs into a standard outlet, so no special wiring is required. Cam Spray has manufactured this wall mount design for over 25 years.
Industrial Painted Frame with Slide-In Mounting
The 1000WM uses an industrial painted steel frame that slides onto a permanently installed wall bracket. Two storage hooks hold the hose and trigger gun, and cover grommets keep Q-Meg nozzles organized and within reach. The compact 23 x 16 x 31 inch footprint frees up valuable floor space in tight work areas.
1.5 HP Motor and Triplex Plunger Pump
A 1.5 HP enclosed motor with thermal overload protection drives the industrial triplex plunger pump. Ceramic plungers and stainless steel valves handle continuous daily use. The low-pressure chemical injection system activates through the soap tip, letting operators apply detergent without switching equipment. Included 0, 15, 25, and 40 degree Q-Meg tips cover everything from vehicle rinsing to targeted spot cleaning.
Features
- Proven Design: Popular wall-mount unit, trusted for over 25 years.
- Durable Construction: Available in an industrial painted frame for tough environments, with a protective cover to safeguard your investment.
- Easy Wall Mounting: Includes a mounting bracket for secure installation; the frame slides into place for quick setup.
- Convenient Storage: Features two hooks for hose and trigger gun storage, plus cover grommets for Q-Meg nozzle storage.
- Dual Chemical Valve: Switch between two concentrate chemicals and control detergent proportion with a simple knob.
- Powerful Performance: Equipped with a 1,000 PSI industrial triplex plunger pump with ceramic plungers and stainless steel valves, protected by an unloader valve.
- Industrial Motor: Totally enclosed motor with thermal overload protection for reliable operation.
- Chemical Injection: Low-pressure chemical injection system activated using the soap tip for liquid detergent application.
- Included Accessories: Comes with 0 degrees , 15 degrees , 25 degrees , and 40 degrees Q-Meg tips and a trigger gun.
- Attention CA Residents: Prop 65 Warning
Specifications
|
Water Type |
Cold |
|
Powered By |
Electric Motor |
|
Mounting Type |
Wall Mount |
|
Flow Rate (GPM / LPM) |
2 / 7.65 |
|
Horsepower |
1.5 |
|
Product Dimensions |
23” × 16” × 31” |
|
Voltage / Amperage / Phase |
120 Volt / 15 Amp / 1 |
|
Pump Thermal Protection |
Mechanical |
|
Max Pump Inlet Water Temp |
160 degrees F |
|
Hose Dimension |
50’ × 3/8” |
|
Power Cord |
35’ with GFCI |
|
Ship Weight |
165 |
|
Pressure (PSI / Bar) |
1000 / 69 |
Max PSI |
1,000 PSI |
Flow Rate (GPM) |
2 GPM |
Voltage |
120V |
Amperage |
15A |
Phase |
Single |
Fuel Type |
Electric |
Pump Type |
Triplex Plunger |
