Cam Spray 1450SHDE Pressure Washer Electric Powered Diesel Fired Hot Water 2 GPM 1,450 PSI

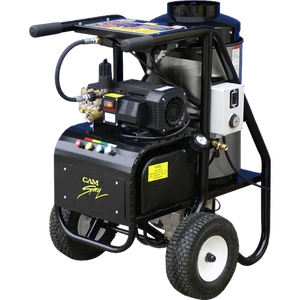

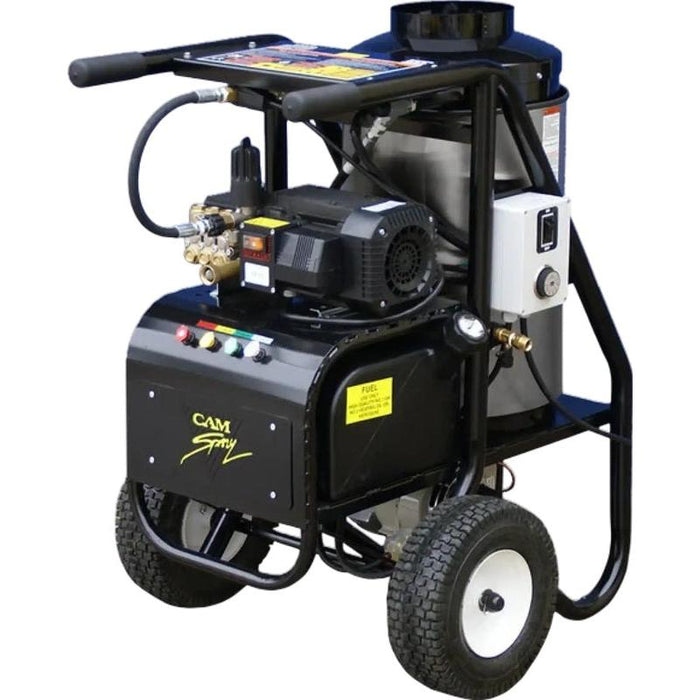

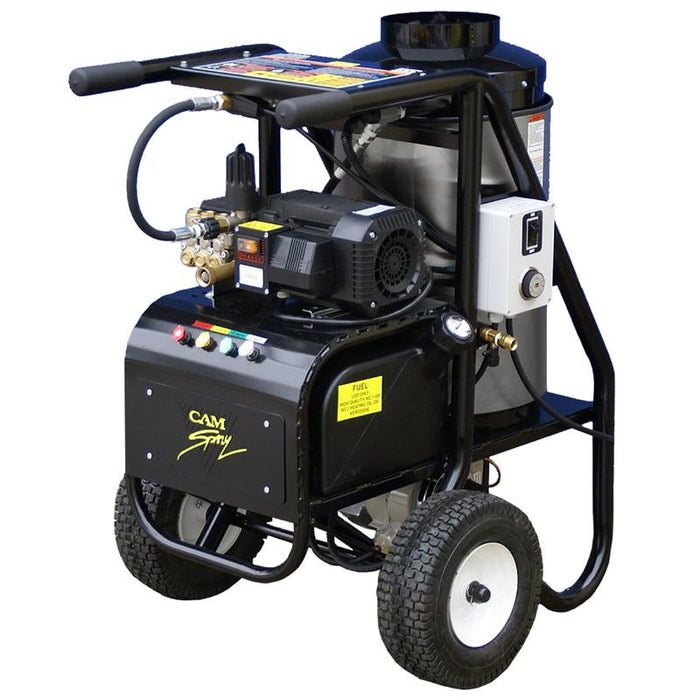

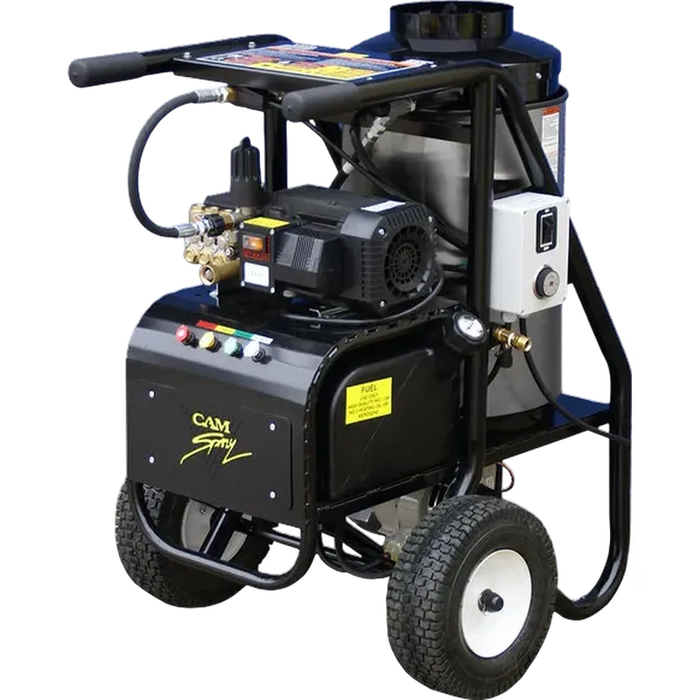

Cam Spray 1450SHDE Hot Water Pressure Washer

The Cam Spray 1450SHDE produces 1,450 PSI at 2 GPM with diesel-fired hot water up to 195 degrees Fahrenheit, generating 2,900 cleaning units. This entry-level hot water model runs on a standard 120-volt, 20-amp circuit, so it works in facilities without 230-volt wiring. Hot water cleaning dissolves grease, oil, and animal fats faster than cold water, making the 1450SHDE practical for small commercial kitchens, auto detail shops, and light-duty degreasing work.

120-Volt Electric Motor with Diesel Burner

A 2 HP enclosed, thermal overload-protected motor powers the triplex plunger pump with ceramic plungers and stainless steel valves. The diesel-fired burner draws from a 5-gallon fuel tank and heats water through a schedule 80 coil with stainless steel wrap. An adjustable thermostat and temperature limit switch control the heating system. The 35-foot GFCI power cord provides safe reach from available outlets.

Compact Cart with 13-Inch Wheels

The portable cart frame measures 34 x 27 x 47 inches and rolls on two 13-inch wheels. Built-in hose and wand holders keep the 50-foot by 3/8-inch hose and dual wand organized between jobs. A female socket accepts optional accessory reel mounting for larger work sites. The heavy-duty trigger gun with side-handle valve lets operators switch between high-pressure cleaning and low-pressure detergent application.

Features

• Economical Hot Water Pressure Washing: SH electric model are engineered to deliver 2,900 cleaning units (1,450 PSI × 2 GPM), this unit meets the requirements of budget-friendly hot water cleaning applications.
• Portable Design: Equipped with a hose and wand holder, the portable frame easily rolls on two 13" wheels.
• Accessory Compatibility: Features a female socket for optional accessory reel mounting.
• Durable Industrial Components: Includes a totally enclosed, thermal overload-protected industrial motor and an industrial triplex plunger pump with ceramic plungers and stainless steel valves.
• Efficient Chemical Injection: Low-pressure chemical injection system protected by an unloader valve and secondary pressure pop-off.
• Advanced Burner System: Rust-free fuel tank, schedule 80 coil with stainless steel wrap, adjustable thermostat, and temperature limit switch, supporting a maximum temperature of 195 degrees F.
• Versatile Trigger Gun: Heavy-duty trigger gun with a dual wand featuring a side-handle valve allows seamless switching between high-pressure cleaning and detergent application.
• Quick-Change Nozzles: Includes 0 degrees , 15 degrees , 25 degrees , and 40 degrees nozzles for diverse cleaning needs.

Specifications

Manuals and Documents

• Electric Hot Water Pressure Washer Manual
• Electric Hot Water Skid Manual
