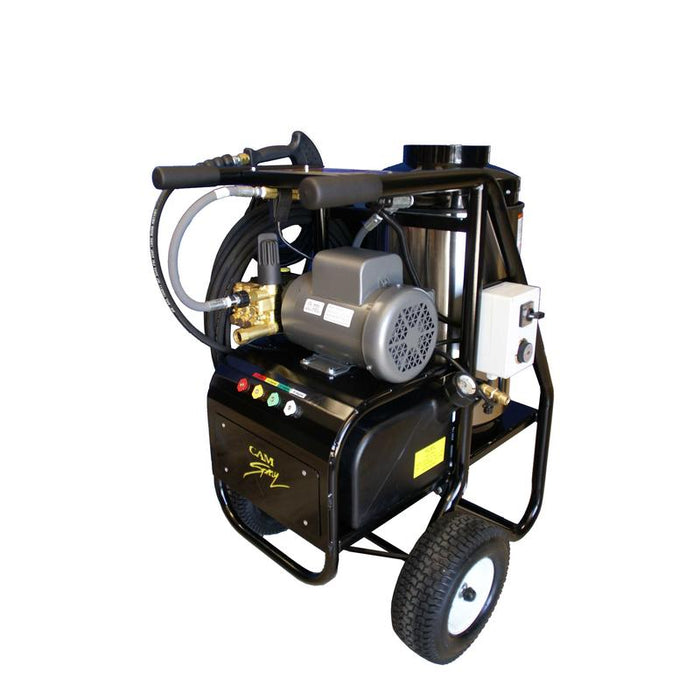

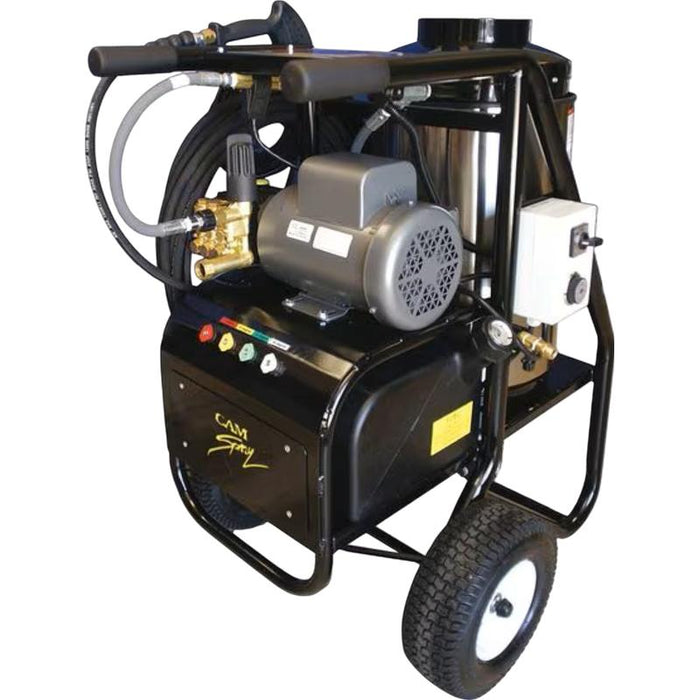

Cam Spray 1500SHDE electric powered diesel fired hot water pressure washer cart, front view

Cam Spray 1500SHDE Pressure Washer Electric Powered Diesel Fired Hot Water 3 GPM 1,500 PSI

$7,005.38 - $7,005.38

$7,005.38

$7,005.38 - $7,005.38

$7,005.38

In stock, ready to ship

Liftgate Service*

This machine ships free by freight carrier to a commercial address with a loading dock or forklift, or to the carrier's terminal for pickup. Liftgate service brings the crate to your address and lowers it to the ground at the curb, one flat fee per order. Crated weight about 355 lb. Delivery takes 5 to 8 business days. Questions? Call (219) 327-1138.

Is this the right machine for my job?

Answer a few quick questions and see whether the Cam Spray 1500SHDE fits your job, your site and your water supply, or which machines fit better.

Takes under a minute. No email needed to see results.

Grease trap areas, animal housing and light fleet work are what the Cam Spray 1500SHDE was sized for: 1,500 PSI at 3 GPM, 4,500 cleaning units, with diesel fired hot water to 195 degrees that dissolves fat and oil a cold machine only spreads around. A 3 HP motor on 230 volt 20 amp single phase power runs quiet and exhaust free indoors, the burner draws from a 5 gallon tank through a schedule 80 coil, and the 355 pound cart on two 13 inch wheels moves between stations.

Cam Spray 1500SHDE 1,500 PSI 3 GPM Electric Powered Diesel Fired Hot Water Pressure Washer on a Two Wheel Cart

Rated at 1,500 PSI and 3 GPM, the Cam Spray 1500SHDE generates 4,500 cleaning units with diesel-heated water reaching 195 degrees Fahrenheit. The 230-volt, 20-amp electric motor keeps operation quiet and exhaust-free indoors while the diesel burner handles water heating. This unit is well suited for restaurant grease trap areas, animal housing facilities, and fleet maintenance bays.

3 HP Electric Motor and Diesel Heating System on the Cam Spray 1500SHDE

The 3 HP enclosed motor with thermal overload protection drives a triplex plunger pump with ceramic plungers and stainless steel valves. Diesel fuel feeds from a 5-gallon tank through a schedule 80 coil with stainless steel wrap. The adjustable thermostat lets operators set the water temperature to match the cleaning task. A 35-foot GFCI power cord provides safe electrical reach, and the system weighs 355 pounds ready to roll.

Portable Cart for Multi-Area Cleaning on the Cam Spray 1500SHDE

Two 13-inch wheels and a sturdy cart frame measuring 34 x 27 x 47 inches let a single operator move the 1500SHDE between cleaning stations. The hose and wand holder keeps the 50-foot by 3/8-inch hose and dual wand organized. Quick-change nozzles in 0, 15, 25, and 40 degree patterns handle everything from focused degreasing to wide-area rinsing.

Cam Spray 1500SHDE Features

Economical Hot Water Cleaning: Designed to provide cost-effective solutions for hot water pressure washing needs.
Portable and Convenient Frame: Includes a hose and wand holder, easily movable on two 13 in wheels.
Accessory Compatibility: Features a female socket for optional 50 ft. hose reel (sold separately) mounting.
Industrial Motor and Pump: Features a totally enclosed, thermal overload-protected motor and an industrial triplex plunger pump with ceramic plungers and stainless steel valves.
Chemical Injection and Safety: Includes low-pressure chemical injection, an unloader valve, and a secondary pressure pop-off for system protection.
Efficient Burner System: Rust-free fuel tank, schedule 80 coil with stainless steel wrap, adjustable thermostat, and temperature limit switch for up to 195 degrees F.
Versatile Cleaning Gun: Heavy-duty trigger gun with a dual wand and side handle valve for switching between high-pressure cleaning and detergent application.
Quick-Change Nozzles: Comes with 0 degrees, 15 degrees, 25 degrees, and 40 degrees nozzles for versatile cleaning applications.
Attention CA Residents: Prop 65 Warning

Cam Spray 1500SHDE Specifications

Build Time	Built to order, typically about 3 weeks
Water Type	Hot
Powered By	Electric Motor
Mounting Type	Cart
Flow Rate (GPM / LPM)	3 / 11.4
Horsepower	3
Product Dimensions	34 in × 27 in × 47 in
Voltage / Amperage / Phase	230 Volt / 20 Amp / 1
Pump Thermal Protection	Mechanical
Max Pump Inlet Water Temp	140 degrees F
Hose Dimension	50 ft × 3/8 in
Power Cord	35 ft with GFCI
Ship Weight	355
Heated By	Diesel Fuel
Burner Fuel Tank Capacity	5 Gallon
Burner Fuel Type	Diesel Fuel
Burner Stack Dimension	8 in
Pressure (PSI / Bar)	1500 / 103.5
Max PSI	1,500 PSI
Flow Rate (GPM)	3 GPM
Voltage	230V
Amperage	20A
Fuel Type	Diesel
Pump Type	Triplex Plunger
Fuel Tank Capacity	5 gal

Cam Spray 1500SHDE Manuals and Documents
