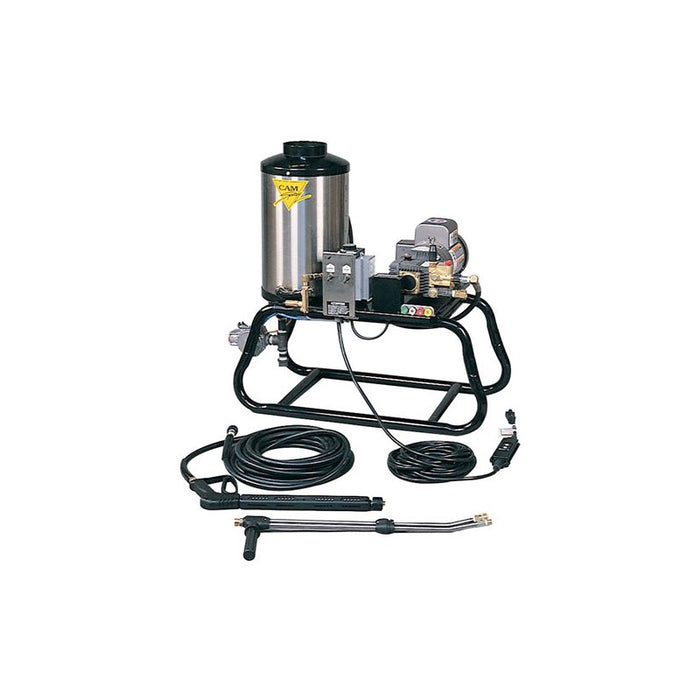

Cam Spray 1500STNEF Pressure Washer Electric Powered Stationary Natural Gas Fired Hot Water 3 GPM 1,500 PSI
Cam Spray 1500STNEF Hot Water Pressure Washer
The Cam Spray 1500STNEF delivers 1,500 PSI at 3 GPM from a 3 HP electric motor with heat from a natural gas burner, built for a fixed installation. It runs on 230 volt, 20 amp, single phase power.
Motor, Pump and Protection
The ST series is built for a fixed installation with a dedicated natural gas line and connects to a 1 inch gas line. A totally enclosed, thermal overload protected industrial motor drives a triplex plunger pump with ceramic plungers and stainless steel valves, protected by an unloader valve and a secondary pressure pop off. The burner uses forced air technology with a Schedule 80 coil wrapped in stainless steel, controlled by an adjustable thermostat and a temperature limit switch for a maximum of 195 degrees Fahrenheit.
Installation and Included Equipment
The skid frame is industrial coated steel tubing. Low pressure chemical injection feeds concentrated detergent through the dual wand, which switches between high pressure cleaning and detergent application with a side handle valve, and quick change 0, 15, 25 and 40 degree nozzles are included. Fuel burning units must be operated outdoors or properly vented with make up air; consult an HVAC professional for the installation. Ships with a 50 ft x 3/8 in high pressure hose and a 35 ft with GFCI power cord. Product dimensions 47 in x 29 in x 46 in. Maximum pump inlet water temperature 140 degrees F.
Specifications
- Pressure: 1,500 PSI (103.5 bar)
- Flow: 3 GPM (11.4 LPM)
- Power: Electric Motor, 3 HP
- Voltage / amperage / phase: 230 Volt / 20 Amp / 1
- Water: hot, Natural Gas
- Mounting: stationary
- Hose: 50 ft x 3/8 in
- Power cord: 35 ft with GFCI
- Burner stack: 8 in
- Ship weight: 450 lb
- Model: 1500STNEF
