Cam Spray 1500WM Pressure Washer Electric Powered Deluxe Wall Mount Cold Water 3 GPM 1,500 PSI

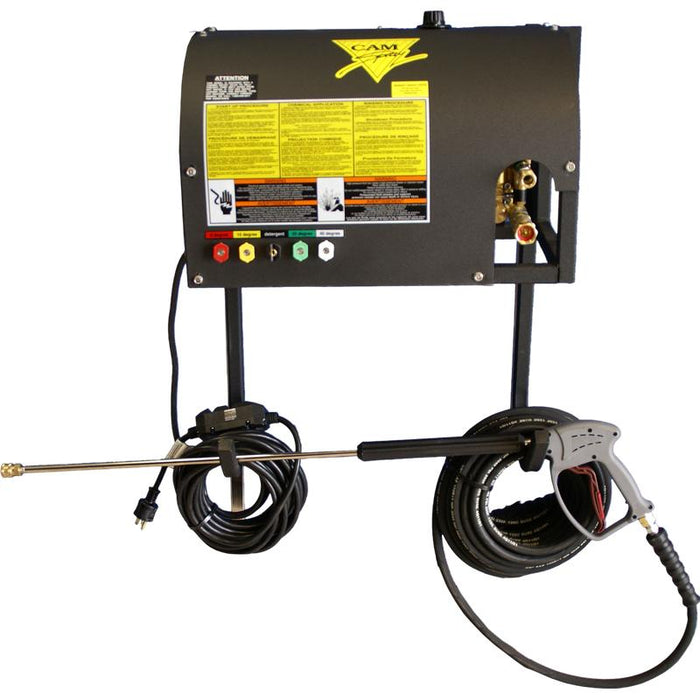

Cam Spray 1500WM Cold Water Wall Mount Pressure Washer
Producing 1,500 PSI at 3 GPM, the Cam Spray 1500WM delivers 4,500 cleaning units from a permanently mounted position. The 230-volt, 20-amp single-phase electric motor powers this cold water unit for wash bays, agricultural facilities, and fleet maintenance shops. The industrial painted steel frame has been a Cam Spray staple for more than 25 years.

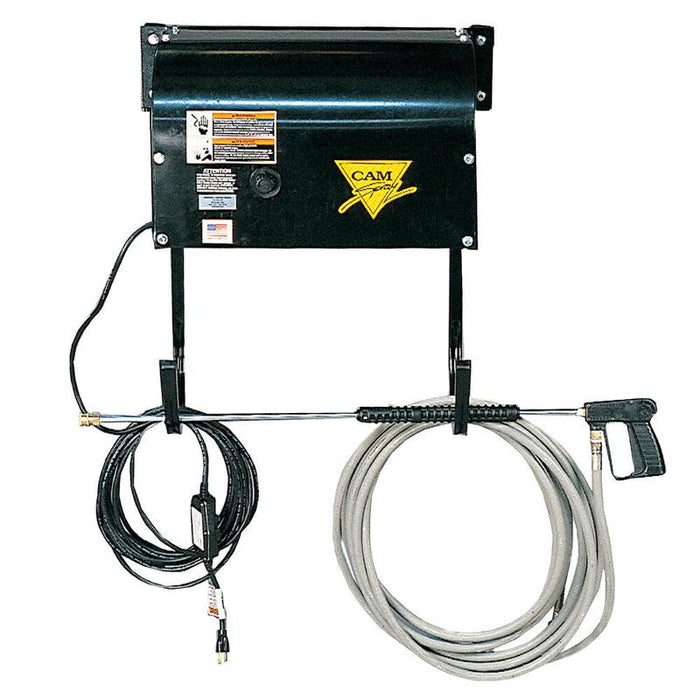

Permanent Mounting with Floor-Saving Design
The wall bracket installs permanently, and the 1500WM frame slides into place for setup or service. Two hooks hold the 50-foot by 3/8-inch hose and trigger gun off the floor. At 23 x 16 x 31 inches, the unit stays out of the way while providing a 35-foot GFCI power cord for flexible placement. Cover grommets store Q-Meg nozzle tips where operators can grab them quickly.
3 HP Motor and Dual Chemical System
The 3 HP enclosed motor with thermal overload protection pairs with an industrial triplex plunger pump. Ceramic plungers and stainless steel valves handle the higher output without added wear. The dual chemical valve lets operators switch between two different detergent concentrates and dial in the exact mix ratio, making this unit practical for multi-task cleaning operations.
Features
- Proven Design: Popular wall-mount unit, trusted for over 25 years.
- Durable Construction: Available in industrial painted frame for heavy-duty environments, with a protective cover.
- Easy Wall Mounting: Easily mounts to a reinforced wall using a permanent mounting bracket and slides into place.
- Convenient Storage: Includes two hooks for storing the hose and trigger gun, plus grommets for Q-Meg nozzle storage.
- Dual Chemical Valve: Choose between two concentrate chemicals and control detergent proportion with a simple knob.
- Powerful Performance: 1,500 PSI with an industrial motor, fully enclosed and thermal overload protected.
- Commercial-grade Pump: Industrial triplex plunger pump with ceramic plungers and stainless steel valves, protected by an unloader valve.
- Chemical Injection: Low-pressure chemical injection system, activated using the soap tip for detergent application.
- Included Accessories: Comes with 0 degrees , 15 degrees , 25 degrees , and 40 degrees Q-Meg tips and a trigger gun.
- Attention CA Residents: Prop 65 Warning
Specifications
|
Water Type |
Cold |
|
Powered By |
Electric Motor |
|
Mounting Type |
Wall Mount |
|
Flow Rate (GPM / LPM) |
3 / 11.4 |
|
Horsepower |
3 |
|
Product Dimensions |
23” × 16” × 31” |
|
Voltage / Amperage / Phase |
230 Volt / 20 Amp / 1 |
|
Pump Thermal Protection |
Mechanical |
|
Max Pump Inlet Water Temp |
160 degrees F |
|
Hose Dimension |
50’ × 3/8” |
|
Power Cord |
35’ with GFCI |
|
Ship Weight |
210 |
|
Pressure (PSI / Bar) |
1500 / 103.5 |
Max PSI |
1,500 PSI |
Flow Rate (GPM) |
3 GPM |
Voltage |
230V |
Amperage |
20A |
Fuel Type |
Electric |
Pump Type |
Triplex Plunger |
