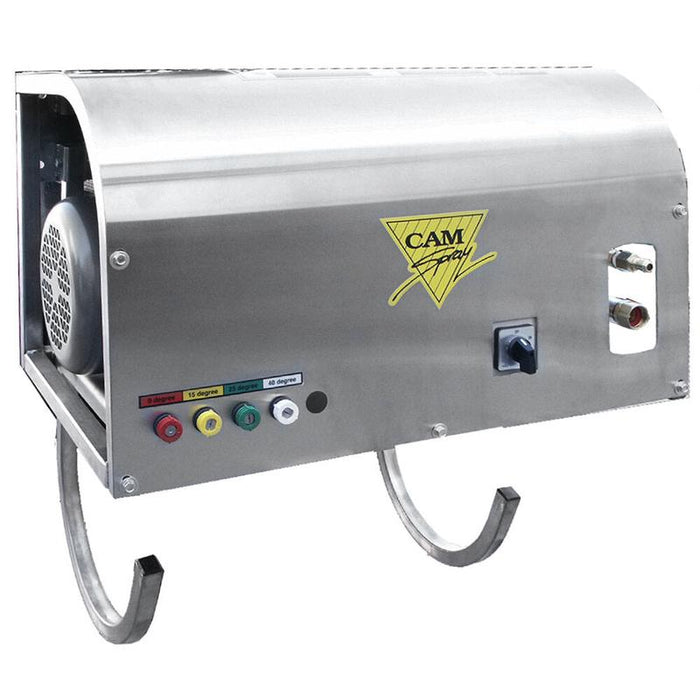

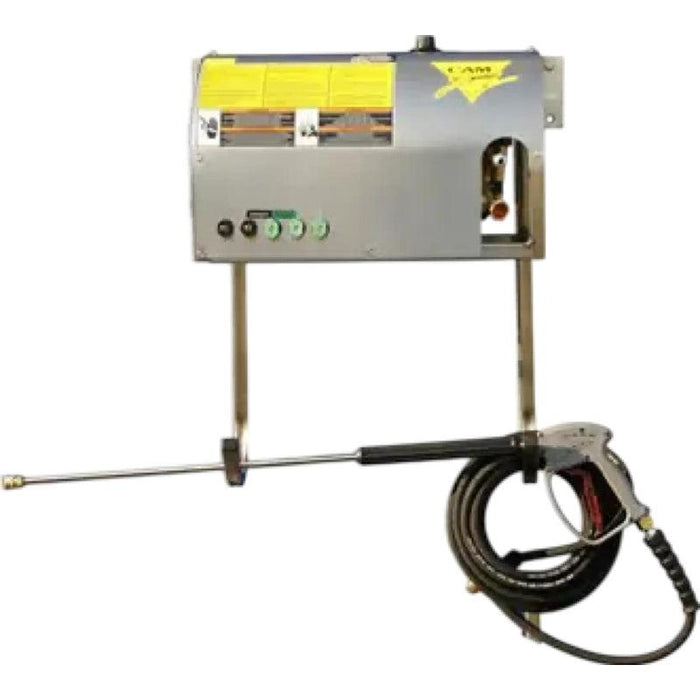

Cam Spray 1500WM/SS Pressure Washer Electric Powered Deluxe Wall Mount Cold Water 3 GPM 1,500 PSI
Cam Spray 1500WM/SS Stainless Steel Cold Water Wall Mount
The Cam Spray 1500WM/SS combines 1,500 PSI at 3 GPM with a full stainless steel frame that resists corrosion in harsh wash environments. Running on 230-volt, 20-amp single-phase power, this cold water wall mount is sized for commercial car washes, food service areas, and chemical processing facilities where frame longevity matters.
Stainless Steel Frame for Demanding Environments
Where painted frames corrode under daily chemical exposure, the stainless steel construction of the 1500WM/SS holds up without protective coatings or frequent touch-ups. The 210-pound unit measures 23 x 16 x 31 inches and slides onto a permanent wall bracket. A protective cover shields internal components, and integrated storage hooks keep the hose, gun, and nozzle tips organized.
3 HP Motor with Chemical Injection
A 3 HP totally enclosed, thermal overload-protected motor drives the triplex plunger pump with ceramic plungers and stainless steel valves. The 35-foot GFCI power cord reaches distant outlets, and the 50-foot high-pressure hose covers a wide work radius. Operators can toggle between two detergent concentrates using the dual chemical valve and adjust the proportion with a single knob.
Features
- Proven Design: Popular wall-mount unit, trusted for over 25 years.
- Durable Construction: Available in full stainless steel frame for heavy-duty environments, with a protective cover.
- Easy Wall Mounting: Easily mounts to a reinforced wall using a permanent mounting bracket and slides into place.
- Convenient Storage: Includes two hooks for storing the hose and trigger gun, plus grommets for Q-Meg nozzle storage.
- Dual Chemical Valve: Choose between two concentrate chemicals and control detergent proportion with a simple knob.
- Powerful Performance: 1,500 PSI with an industrial motor, fully enclosed and thermal overload protected.
- Commercial-grade Pump: Industrial triplex plunger pump with ceramic plungers and stainless steel valves, protected by an unloader valve.
- Chemical Injection: Low-pressure chemical injection system, activated using the soap tip for detergent application.
- Included Accessories: Comes with 0 degrees , 15 degrees , 25 degrees , and 40 degrees Q-Meg tips and a trigger gun.
- Attention CA Residents: Prop 65 Warning
Specifications
|
Water Type |
Cold |
|
Powered By |
Electric Motor |
|
Mounting Type |
Wall Mount |
|
Flow Rate (GPM / LPM) |
3 / 11.4 |
|
Horsepower |
3 |
|
Product Dimensions |
23” × 16” × 31” |
|
Voltage / Amperage / Phase |
230 Volt / 20 Amp / 1 |
|
Pump Thermal Protection |
Mechanical |
|
Max Pump Inlet Water Temp |
160 degrees F |
|
Hose Dimension |
50’ × 3/8” |
|
Power Cord |
35’ with GFCI |
|
Ship Weight |
210 |
|
Pressure (PSI / Bar) |
1500 / 103.5 |
Max PSI |
1,500 PSI |
Flow Rate (GPM) |
3 GPM |
Voltage |
230V |
Amperage |
20A |
Fuel Type |
Electric |
Pump Type |
Triplex Plunger |
