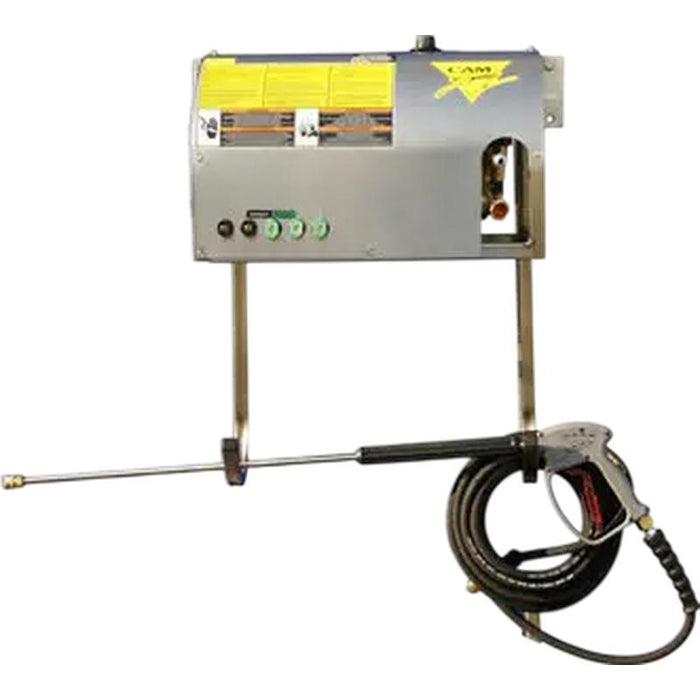

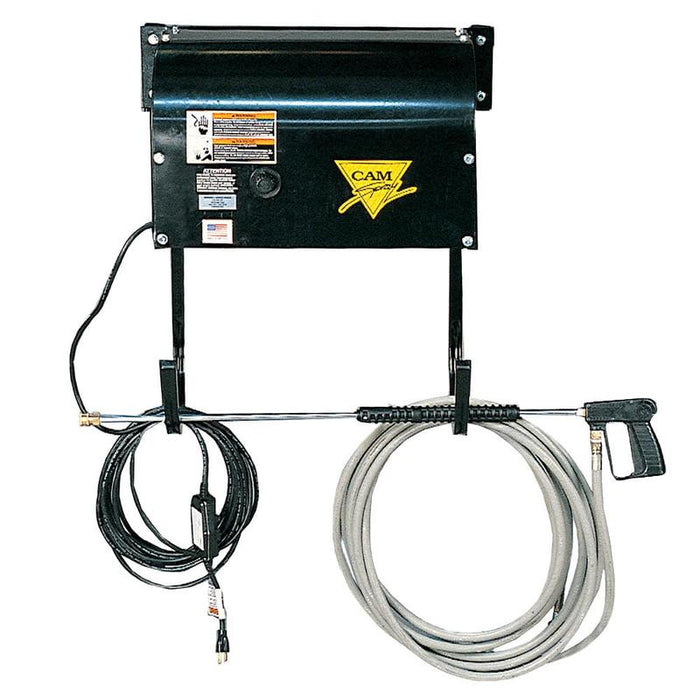

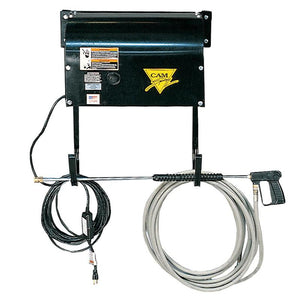

Cam Spray 1502WM/SSA Pressure Washer Electric Powered Deluxe Wall Mount Cold Water 2 GPM 1,500 PSI Auto Start/Stop
Cam Spray 1502WM/SSA Cold Water Wall Mount with 120V Auto Start/Stop
Where the 1500WM/SSA requires 230-volt wiring, the Cam Spray 1502WM/SSA runs on a standard 120-volt, 20-amp circuit while still delivering 1,500 PSI. Flow rate is 2 GPM through a stainless steel wall mount frame with auto start/stop. This makes it a practical choice for facilities that need hot water-free cleaning power without rewiring for higher voltage.
120-Volt Convenience with Stainless Steel Durability
The 2 HP enclosed motor with thermal overload protection pairs with the auto start/stop feature, so the motor only runs when the trigger is pulled. The full stainless steel frame handles wet, corrosive environments where painted frames fail. Weighing 165 pounds and measuring 23 x 16 x 31 inches, the 1502WM/SSA fits small wash bays, veterinary clinics, and maintenance closets.
Triplex Plunger Pump with Dual Chemical Valve
The industrial triplex plunger pump features ceramic plungers and stainless steel valves for durability under continuous use. A 35-foot power cord with GFCI protection and a 50-foot by 3/8-inch hose provide working range. The dual chemical valve toggles between two detergent concentrates, and Q-Meg nozzle tips in 0, 15, 25, and 40 degree patterns come included.
Features
- Popular Design: Deluxe Wall Mount cold water electric-powered unit, a Cam Spray favorite for over 25 years.
- Durable Construction: Made with a full stainless steel frame for tough environments.
- Wall-Mount Design: Easily mounts to walls using a permanently installed bracket and slide-in frame design.
- Convenient Storage: Features two hooks for hose and trigger gun storage, plus grommets on the cover for Q-Meg nozzle storage.
- Dual Chemical Valve: Offers the ability to switch between two detergent concentrates and adjust the detergent proportion.
- Industrial Motor: Totally enclosed and thermal overload protected for reliable operation.
- Triplex Plunger Pump: Features ceramic plungers and stainless steel valves for durability and high performance.
- Auto Start/Stop Function: Starts and stops the motor automatically when the trigger is pulled or released.
- Efficient Detergent Dispensing: Uses low-pressure chemical injection activated by the soap tip for applying liquid detergents.
- Accessories Included: Comes with 0 degrees , 15 degrees , 25 degrees , and 40 degrees Q-Meg tips and a trigger gun.
- Powerful Cleaning: Provides 1,500 PSI pressure for effective and reliable performance.
- Attention CA Residents: Prop 65 Warning
Specifications
|
Water Type |
Cold |
|
Powered By |
Electric Motor |
|
Mounting Type |
Wall Mount |
|
Flow Rate (GPM / LPM) |
2 / 7.65 |
|
Horsepower |
2 |
|
Product Dimensions |
23” × 16” × 31” |
|
Voltage / Amperage / Phase |
120 Volt / 20 Amp / 1 |
|
Pump Thermal Protection |
Mechanical |
|
Max Pump Inlet Water Temp |
160 degrees F |
|
Hose Dimension |
50’ × 3/8” |
|
Power Cord |
35’ with GFCI |
|
Ship Weight |
165 |
|
Pressure (PSI / Bar) |
1500 / 103.5 |
Max PSI |
1,500 PSI |
Flow Rate (GPM) |
2 GPM |
Voltage |
120V |
Amperage |
20A |
Phase |
Single |
Fuel Type |
Electric |
Pump Type |
Triplex Plunger |
