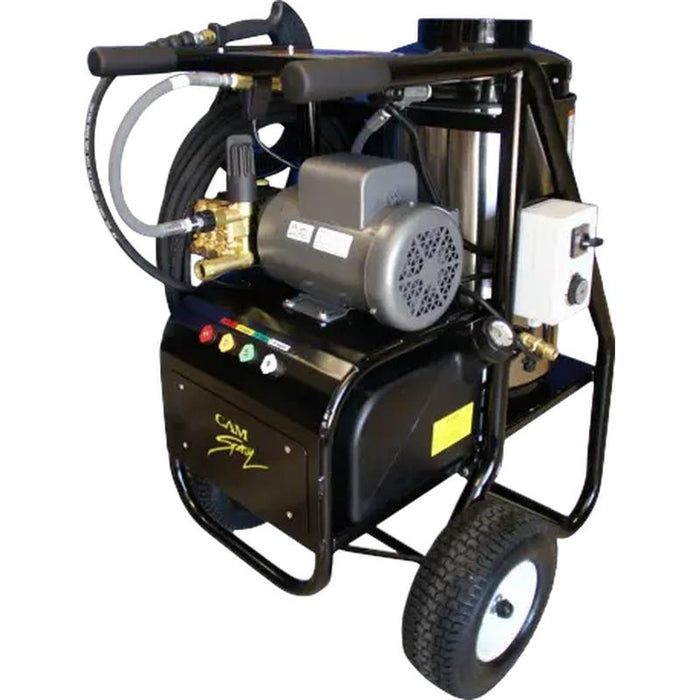

Cam Spray 20005SHDE electric powered diesel fired hot water pressure washer cart, front view

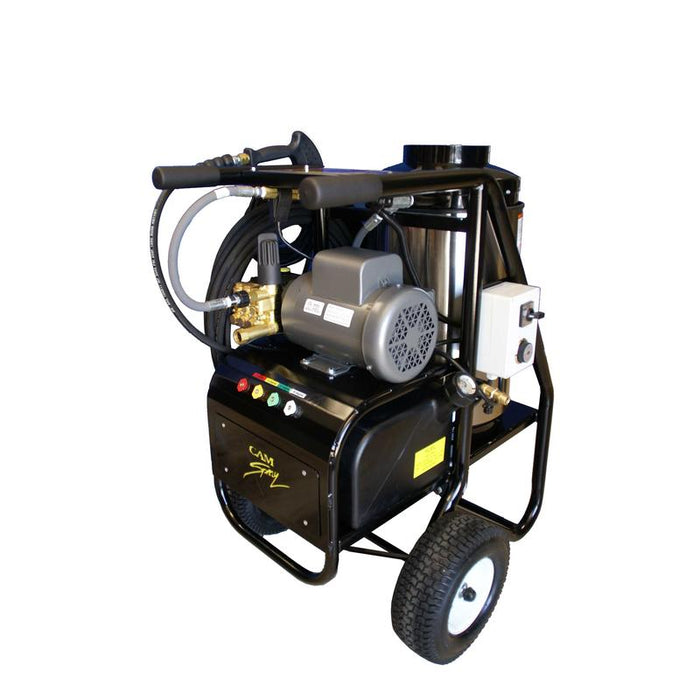

Cam Spray 20005SHDE Pressure Washer Electric Powered Diesel Fired Hot Water 3 GPM 2,000 PSI

$7,129.38 - $7,129.38

$7,129.38

$7,129.38 - $7,129.38

$7,129.38

In stock, ready to ship

Liftgate Service*

This machine ships free by freight carrier to a commercial address with a loading dock or forklift, or to the carrier's terminal for pickup. Liftgate service brings the crate to your address and lowers it to the ground at the curb, one flat fee per order. Crated weight about 365 lb. Delivery takes 5 to 8 business days. Questions? Call (219) 327-1138.

Is this the right machine for my job?

Answer a few quick questions and see whether the Cam Spray 20005SHDE fits your job, your site and your water supply, or which machines fit better.

Takes under a minute. No email needed to see results.

The Cam Spray 20005SHDE sits between the 3 HP SHDE carts and the big QE units: a 5 HP motor on 230 volt 25 amp single phase power has reserve for continuous duty at 2,000 PSI and 3 GPM, and the diesel burner heats water to 195 degrees from a 5 gallon tank for kitchen grease, fleet film and facility cleanup. At 365 pounds on two 13 inch wheels the cart fits through a standard door, and a 35 foot GFCI cord and a 50 foot hose give it reach.

Cam Spray 20005SHDE 2,000 PSI 3 GPM Electric Powered Diesel Fired Hot Water Pressure Washer on a Two Wheel Cart

Bridging the gap between the compact SHDE models and the full-size units, the Cam Spray 20005SHDE delivers 2,000 PSI at 3 GPM with diesel-fired hot water up to 195 degrees Fahrenheit. The 5 HP electric motor on a 230-volt, 25-amp circuit provides more reserve power than the 3 HP models while keeping the SHDE cart format. This unit handles commercial kitchen cleaning, fleet degreasing, and facility maintenance.

5 HP Motor for Mid-Range Hot Water Cleaning on the Cam Spray 20005SHDE

The 5 HP enclosed motor with thermal overload protection runs the triplex plunger pump at 2,000 PSI without straining at full load. Ceramic plungers and stainless steel valves handle continuous duty cycles. The diesel burner draws from a 5-gallon tank through a schedule 80 coil with stainless steel wrap. A 35-foot GFCI power cord and 50-foot by 3/8-inch hose provide working range in large shops and outdoor areas.

Maneuverable 365-Pound Cart on the Cam Spray 20005SHDE

The 34 x 27 x 47 inch cart frame rides on two 13-inch wheels for mobility across concrete floors, loading docks, and parking areas. Hose and wand holders keep lines organized, and a female socket allows mounting an optional accessory reel. The heavy-duty trigger gun with dual wand and side-handle valve switches between high-pressure cleaning and detergent application without changing tools.

Cam Spray 20005SHDE Features

Economical Hot Water Cleaning: Offers cost-effective solutions for hot water pressure washing needs.
Portable Design: Features a frame with hose and wand holder, easily maneuverable on two 13 in wheels.
Accessory Compatibility: Female socket allows for optional accessory reel mounting.
Durable Motor and Pump: Includes a fully enclosed, thermal overload-protected industrial motor and a triplex plunger pump with ceramic plungers and stainless steel valves.
Chemical Injection and Safety: Equipped with low-pressure chemical injection, unloader valve, and secondary pressure pop-off for system protection.
Efficient Burner System: Features a rust-free fuel tank, schedule 80 coil with stainless steel wrap, adjustable thermostat, and temperature limit switch for up to 195 degrees F.
Versatile Trigger Gun: Heavy-duty trigger gun with a dual wand and side handle valve allows for easy switching between high-pressure cleaning and detergent application.
Quick-Change Nozzles: Includes 0 degrees, 15 degrees, 25 degrees, and 40 degrees nozzles for a variety of cleaning applications.
Attention CA Residents: Prop 65 Warning

Cam Spray 20005SHDE Specifications

Availability	Cam Spray ReadyShip model, usually ships from factory stock
Water Type	Hot
Powered By	Electric Motor
Mounting Type	Cart
Flow Rate (GPM / LPM)	3 / 11.4
Horsepower	5
Product Dimensions	34 in × 27 in × 47 in
Voltage / Amperage / Phase	230 Volt / 25 Amp / 1
Pump Thermal Protection	Mechanical
Max Pump Inlet Water Temp	140 degrees F
Hose Dimension	50 ft × 3/8 in
Power Cord	35 ft with GFCI
Ship Weight	365
Heated By	Diesel Fuel
Burner Fuel Tank Capacity	5 Gallon
Burner Fuel Type	Diesel Fuel
Burner Stack Dimension	8 in
Pressure (PSI / Bar)	2000 / 138
Max PSI	2,000 PSI
Flow Rate (GPM)	3 GPM
Voltage	230V
Amperage	25A
Fuel Type	Diesel
Pump Type	Triplex Plunger
Fuel Tank Capacity	5 gal

Cam Spray 20005SHDE What's In the Box

High-pressure hose (50 ft x 3/8 in)
Heavy-duty trigger gun
Dual wand with side handle valve
Quick change nozzles (0 degrees, 15 degrees, 25 degrees, 40 degrees )
35 ft power cord with GFCI (varies by model)

Cam Spray 20005SHDE Manuals and Documents
