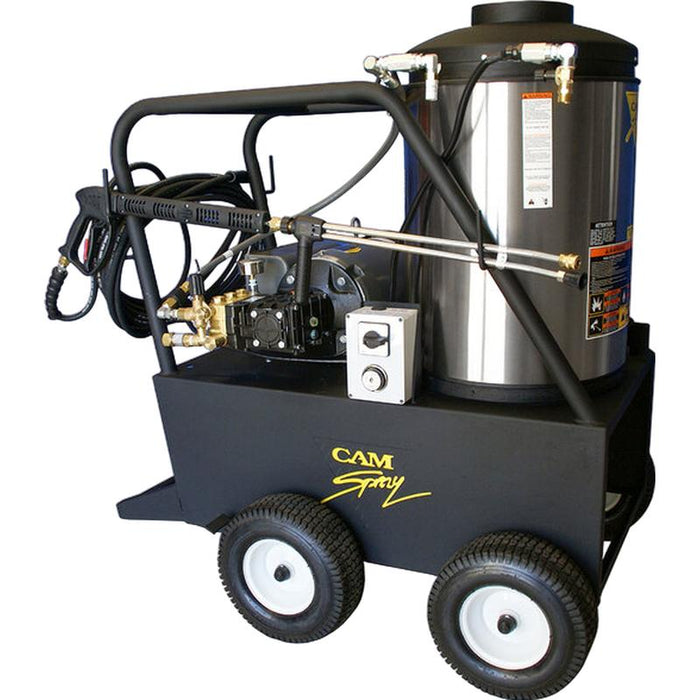

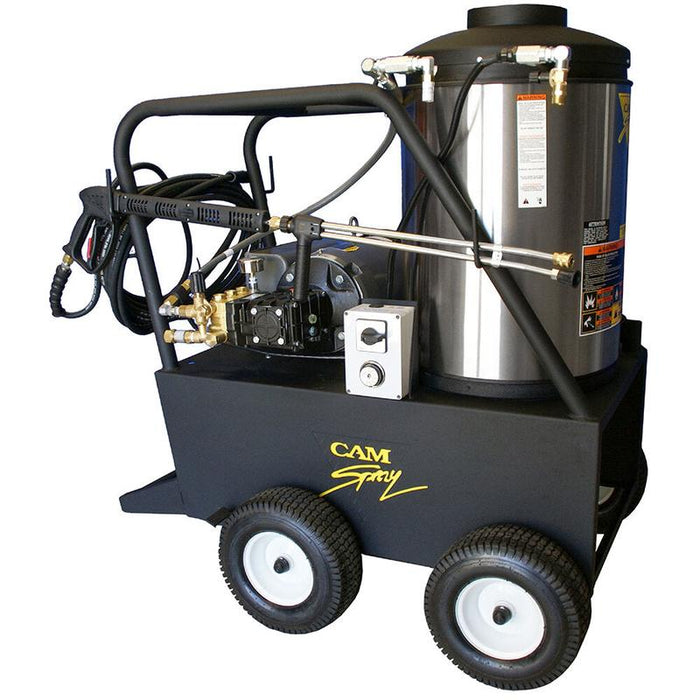

Cam Spray 2000QE Pressure Washer Electric Powered Diesel Fired Hot Water 4 GPM 2,000 PSI

Cam Spray 2000QE Electric Powered Diesel-Fired Hot Water Pressure Washer

The Cam Spray 2000QE delivers 2,000 PSI at 4 GPM with diesel-fired hot water reaching 195 degrees Fahrenheit. Unlike the smaller SHDE series, the QE platform uses a heavy-duty frame with four 13-inch wheels for stability and a larger 9-gallon diesel fuel tank for extended run time. The 5 HP electric motor draws 28 amps on 230-volt single-phase power, keeping the cleaning area free of engine exhaust.

5 HP Motor on the QE Heavy-Duty Platform

The QE frame measures 52 x 32 x 49 inches, significantly larger than the SHDE cart series. Four 13-inch wheels distribute the 675-pound weight evenly across floors and pavement. The enclosed motor with thermal overload protection drives a triplex plunger pump with ceramic plungers and stainless steel valves. A 35-foot GFCI power cord provides safe reach from 230-volt outlets.

9-Gallon Diesel Tank for Longer Jobs

The 9-gallon diesel fuel tank nearly doubles the capacity of the SHDE series, reducing refueling interruptions during full-day cleaning operations. The burner system uses a schedule 80 coil with stainless steel wrap, an adjustable thermostat, and a temperature limit switch. The female socket accepts optional swivel hose reels, and the heavy-duty trigger gun with dual wand handles both high-pressure cleaning and detergent application.

Features

• Mobility: Designed for easy movement with a heavy-duty frame, hose and wand rack, and four 13" wheels.
• Accessory Compatibility: Features a female socket for optional accessory reel mounting.
• Industrial Motor: Totally enclosed, thermal overload protected motor for reliable performance.
• Triplex Plunger Pump: Industrial-grade pump with ceramic plungers and stainless steel valves, featuring low-pressure chemical injection.
• Safety Features: System protected by unloader valve and secondary pressure pop-off for enhanced safety.
• Burner System: Includes a rust-free fuel tank, schedule 80 coil with stainless steel wrap, and adjustable thermostat with a temperature limit switch, reaching up to 195 degrees F.
• Heavy Duty Trigger Gun: Equipped with a dual wand, side handle valve, and quick-change 0 degrees , 15 degrees , 25 degrees , and 40 degrees nozzles for versatile cleaning.
• Attention CA Residents: Prop 65 Warning

Specifications

What's In the Box

• High-pressure hose (50' x 3/8")
• Heavy-duty trigger gun
• Dual wand with side handle valve
• Quick change nozzles (0 degrees , 15 degrees , 25 degrees , 40 degrees )

Manuals and Documents

Electric Hot Water Skid Manual
