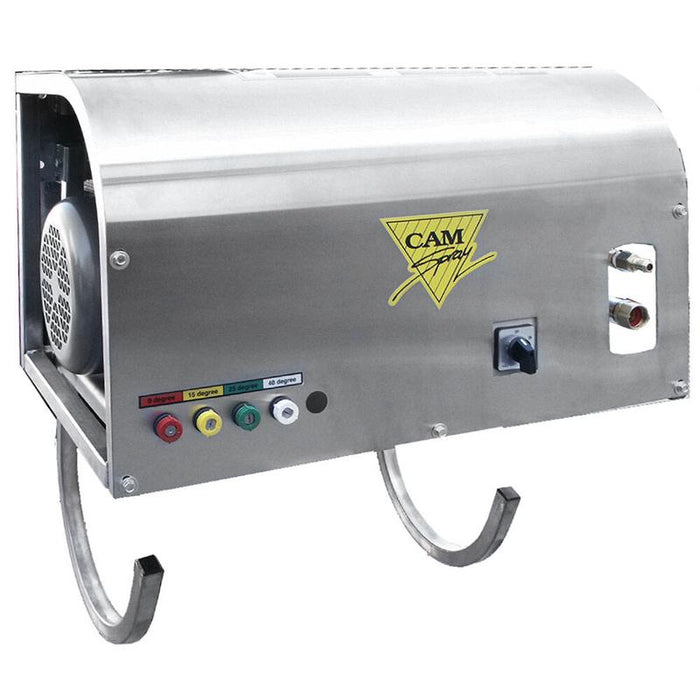

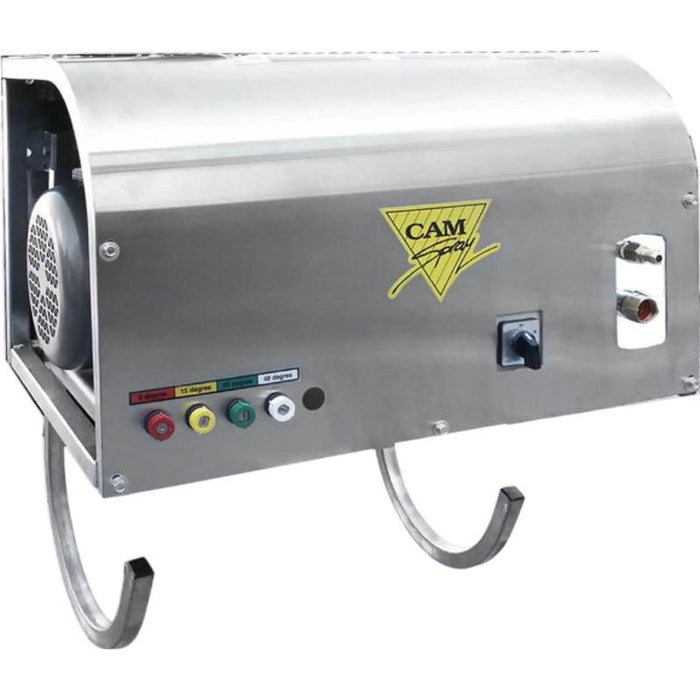

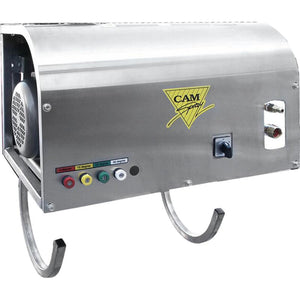

Cam Spray 2000WM/SS3 Pressure Washer 208V-230V Electric Powered Deluxe Wall Mount Cold Water 4 GPM 2,000 PSI
Cam Spray 2000WM/SS3 Three-Phase Wall Mount Pressure Washer (208-230V)
The Cam Spray 2000WM/SS3 in 208-230 volt three-phase configuration delivers 2,000 PSI at 4 GPM for facilities with commercial three-phase power. The 5 HP three-phase motor draws only 15 amps, reducing circuit requirements compared to single-phase equivalents. The stainless steel frame stands up to aggressive cleaning chemicals and constant moisture in industrial wash bays.
Three-Phase Efficiency in a Wall Mount Package
Three-phase motors run more efficiently and generate less heat than single-phase motors at the same horsepower. The 2000WM/SS3 takes advantage of this with a lower amperage draw of 15 amps versus 26 amps on the single-phase version. The 28 x 22 x 30 inch stainless steel frame slides onto a permanent wall bracket, and the 230-pound unit includes a protective cover over internal components.
Industrial Pump and Dual Detergent System
The triplex plunger pump with ceramic plungers and stainless steel valves is protected by an unloader valve. A 10-foot power cord and 50-foot by 3/8-inch hose suit permanent installations in manufacturing plants, processing facilities, and large wash bays. The dual chemical valve switches between two detergent concentrates for multi-surface cleaning without reconnecting supply lines.
Features
- Proven Design: Popular wall-mount unit, trusted for over 25 years.
- Durable Construction: Available in full stainless steel frame for heavy-duty environments, with a protective cover.
- Easy Wall Mounting: Easily mounts to a reinforced wall using a permanent mounting bracket and slides into place.
- Convenient Storage: Includes two hooks for storing the hose and trigger gun, plus grommets for Q-Meg nozzle storage.
- Dual Chemical Valve: Choose between two concentrate chemicals and control detergent proportion with a simple knob.
- Powerful Performance: 2,000 PSI with an industrial motor, fully enclosed and thermal overload protected.
- 3-Phase Motor: Equipped with a powerful 5 HP 208-230V 3-phase motor for efficient and reliable performance in commercial settings.
- Commercial-grade Pump: Industrial triplex plunger pump with ceramic plungers and stainless steel valves, protected by an unloader valve.
- Chemical Injection: Low-pressure chemical injection system, activated using the soap tip for detergent application.
- Included Accessories: Comes with 0 degrees , 15 degrees , 25 degrees , and 40 degrees Q-Meg tips and a trigger gun.
- Attention CA Residents: Prop 65 Warning
Specifications
|
Water Type |
Cold |
|
Powered By |
Electric Motor |
|
Mounting Type |
Wall Mount |
|
Flow Rate (GPM / LPM) |
4 / 15.2 |
|
Horsepower |
5 |
|
Product Dimensions |
28” × 22” × 30” |
|
Voltage / Amperage / Phase |
208 / 230 Volt / 15 Amp / 3 |
|
Pump Thermal Protection |
Mechanical |
|
Max Pump Inlet Water Temp |
160 degrees F |
|
Hose Dimension |
50’ × 3/8” |
|
Power Cord |
10’ |
|
Ship Weight |
230 |
|
Pressure (PSI / Bar) |
2000 / 138 |
Max PSI |
2,000 PSI |
Flow Rate (GPM) |
4 GPM |
Voltage |
208V |
Amperage |
15A |
Phase |
Three |
Fuel Type |
Electric |
Pump Type |
Triplex Plunger |
