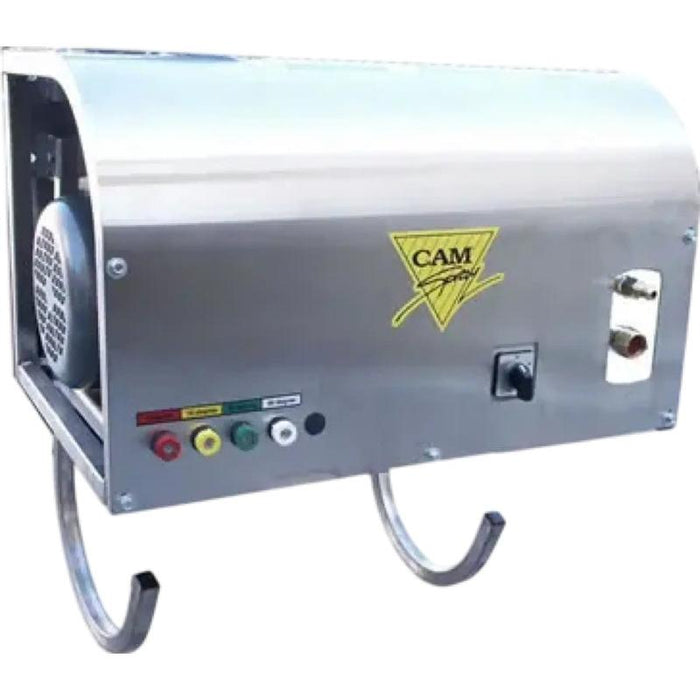

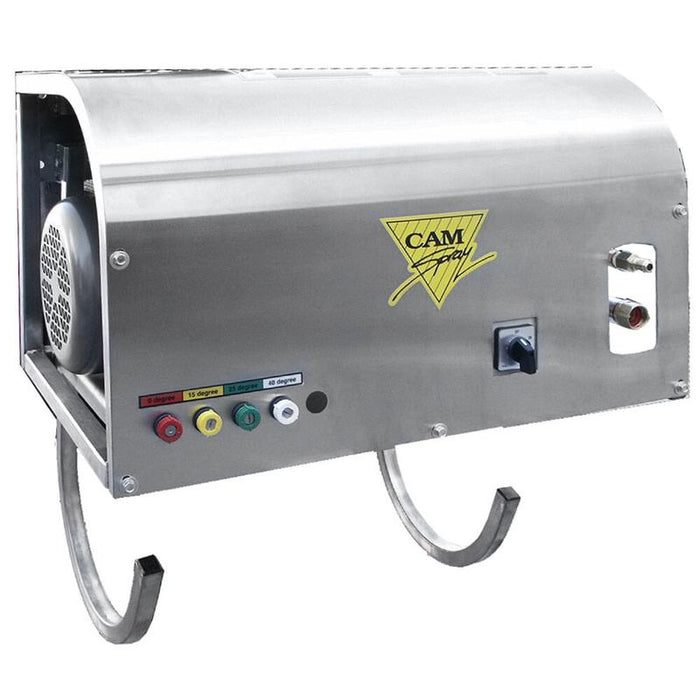

Cam Spray 2000WM/SS3 Pressure Washer 460V Electric Powered Deluxe Wall Mount Cold Water 4 GPM 2,000 PSI
Cam Spray 2000WM/SS3 460V Three-Phase Wall Mount Pressure Washer
Built for facilities running 460-volt three-phase power, the Cam Spray 2000WM/SS3 460V produces 2,000 PSI at 4 GPM. The 5 HP three-phase motor draws just 15 amps at 460 volts, making it compatible with existing heavy industrial circuits. The full stainless steel frame is built to last in chemical-heavy environments like manufacturing plants and large-scale wash operations.
460-Volt Industrial Power
Facilities with 460-volt infrastructure can connect the 2000WM/SS3 directly without voltage converters or panel upgrades. The low 15-amp draw at 460 volts means minimal circuit load. The wall-mounted stainless steel frame measures 28 x 22 x 30 inches and weighs 230 pounds. A permanent bracket holds the unit securely, and the frame slides out for maintenance access.
Triplex Pump with Unloader Protection
The industrial triplex plunger pump features ceramic plungers and stainless steel valves, protected by an unloader valve for safe deadhead operation. The 50-foot by 3/8-inch hose provides working range from the mount point. Operators can apply detergent through the low-pressure chemical injection system activated by the soap tip, with a dual valve to switch between two concentrate chemicals.
Features
- Proven Design: Popular wall-mount unit, trusted for over 25 years.
- Durable Construction: Available in full stainless steel frame for heavy-duty environments, with a protective cover.
- Easy Wall Mounting: Easily mounts to a reinforced wall using a permanent mounting bracket and slides into place.
- Convenient Storage: Includes two hooks for storing the hose and trigger gun, plus grommets for Q-Meg nozzle storage.
- Dual Chemical Valve: Choose between two concentrate chemicals and control detergent proportion with a simple knob.
- Powerful Performance: 2,000 PSI with an industrial motor, fully enclosed and thermal overload protected.
- 3-Phase Motor: Equipped with a powerful 5 HP 460V 3-phase motor for efficient and reliable performance in commercial settings.
- Commercial-grade Pump: Industrial triplex plunger pump with ceramic plungers and stainless steel valves, protected by an unloader valve.
- Chemical Injection: Low-pressure chemical injection system, activated using the soap tip for detergent application.
- Included Accessories: Comes with 0 degrees , 15 degrees , 25 degrees , and 40 degrees Q-Meg tips and a trigger gun.
- Attention CA Residents: Prop 65 Warning
Specifications
|
Water Type |
Cold |
|
Powered By |
Electric Motor |
|
Mounting Type |
Wall Mount |
|
Flow Rate (GPM / LPM) |
4 / 15.2 |
|
Horsepower |
5 |
|
Product Dimensions |
28” × 22” × 30” |
|
Voltage / Amperage / Phase |
460 Volt / 15 Amp / 3 |
|
Pump Thermal Protection |
Mechanical |
|
Max Pump Inlet Water Temp |
160 degrees F |
|
Hose Dimension |
50’ × 3/8” |
|
Power Cord |
10’ |
|
Ship Weight |
230 |
|
Pressure (PSI / Bar) |
2000 / 138 |
Max PSI |
2,000 PSI |
Flow Rate (GPM) |
4 GPM |
Voltage |
208V |
Amperage |
15A |
Phase |
Three |
Fuel Type |
Electric |
Pump Type |
Triplex Plunger |
