Cam Spray 2555QE Pressure Washer Electric Powered Diesel Fired Hot Water 5.5 GPM 2,500 PSI

Cam Spray 2555QE High-Volume Hot Water Pressure Washer

At 2,500 PSI and 5.5 GPM, the Cam Spray 2555QE produces 13,750 cleaning units, the highest cleaning unit count in the QE electric lineup. The 5.5 GPM flow rate moves more hot water across surfaces per minute than any other electric-powered Cam Spray model. Diesel-fired heating brings water to 195 degrees Fahrenheit for grease removal, oil cleanup, and food processing sanitation.

10 HP Motor Driving 5.5 GPM

The 10 HP enclosed motor with thermal overload protection draws 40 amps on 230-volt single-phase power. It pairs with a triplex plunger pump with ceramic plungers and stainless steel valves rated for the high-volume output. The 9-gallon diesel fuel tank feeds the burner through a schedule 80 coil with stainless steel wrap. An adjustable thermostat and temperature limit switch control heating output.

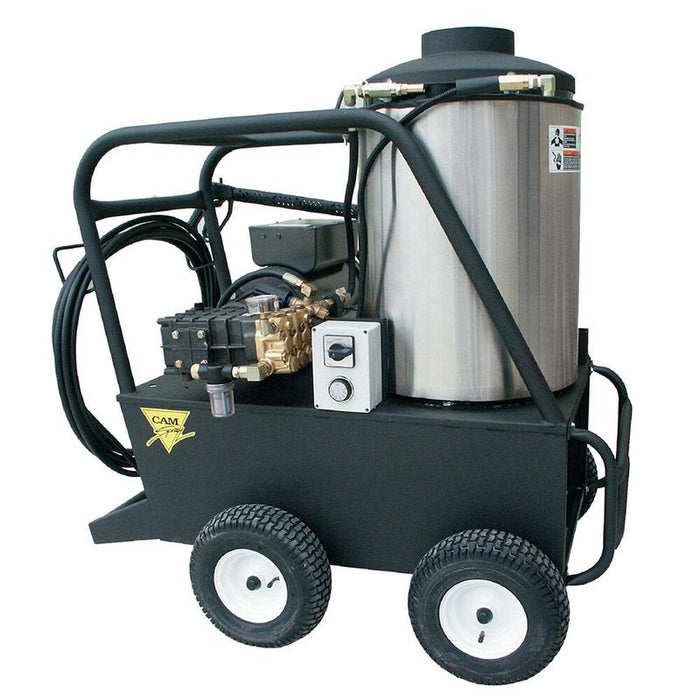

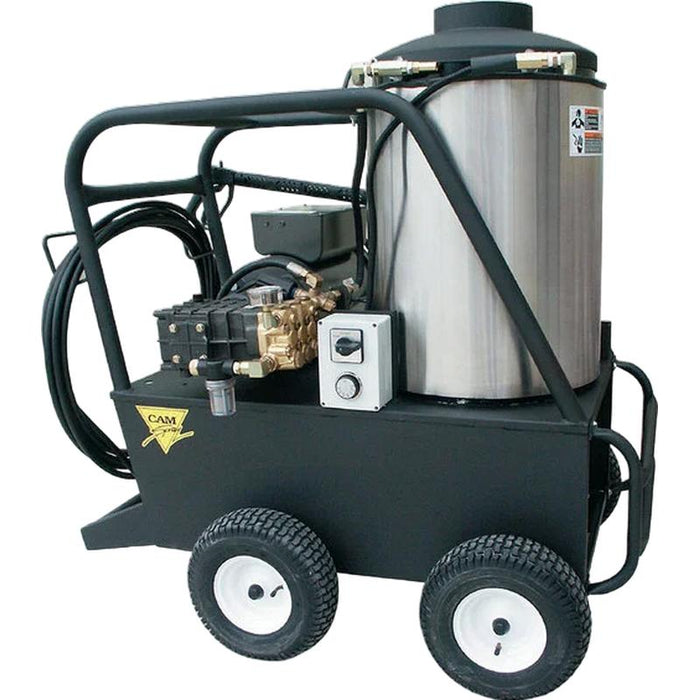

675-Pound Four-Wheel Platform

The QE heavy-duty frame measures 52 x 32 x 49 inches and rides on four 13-inch wheels. At 675 pounds, the four-wheel configuration distributes weight for stable movement across shop floors and job sites. A female socket allows mounting of optional swivel hose reels. The 50-foot by 3/8-inch hose, 10-foot power cord, and quick-change nozzles in 0, 15, 25, and 40 degree patterns complete the setup.

Features

• Easy Mobility: Heavy-duty frame with four 13" wheels and hose/wand rack for easy transportation.
• Accessory Compatibility: Features a female socket for optional accessory reel mounting.
• Powerful Performance: 2,500 PSI with industrial motor, thermal overload protection, and triplex plunger pump.
• Chemical Injection: Equipped with low-pressure chemical injection for efficient detergent application.
• Safety Features: System protection with an unloader valve and secondary pressure pop-off.
• Burner System: Rust-free fuel tank, schedule 80 coil with stainless steel wrap, adjustable thermostat, and temperature limit switch for max 195 degrees F.
• Heavy-duty Trigger Gun: Dual wand with side handle valve for switching between high pressure cleaning and detergent application.
• Quick-change Nozzles: Includes 0 degrees , 15 degrees , 25 degrees , and 40 degrees nozzles for versatile cleaning options.
• Attention CA Residents: Prop 65 Warning

Specifications

What's In the Box

• High-pressure hose (50' x 3/8")
• Heavy-duty trigger gun
• Dual wand with side handle valve
• Quick change nozzles (0 degrees , 15 degrees , 25 degrees , 40 degrees )

Manuals and Documents

• Electric Hot Water Pressure Washer Manual
• Electric Hot Water Skid Manual
