Cam Spray 2725SHDE Pressure Washer Electric Powered Diesel Fired Hot Water 2.5 GPM 2,700 PSI

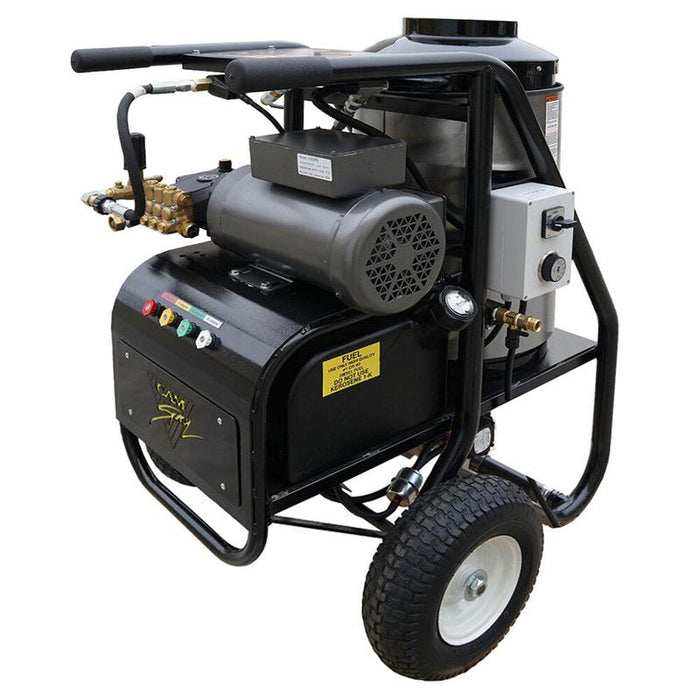

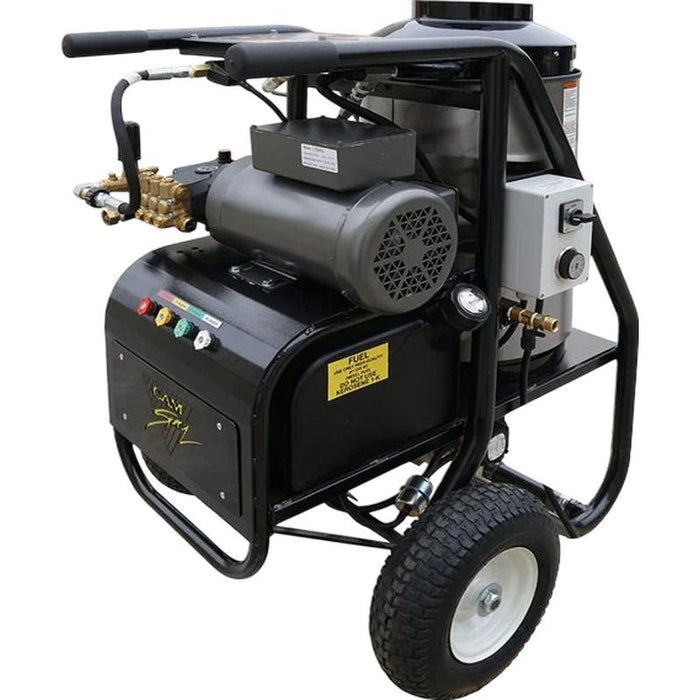

Cam Spray 2725SHDE High-Pressure Hot Water Pressure Washer
At 2,700 PSI and 2.5 GPM, the Cam Spray 2725SHDE produces 6,750 cleaning units with diesel-fired hot water reaching 195 degrees Fahrenheit. The higher pressure rating separates this model from other SHDE units, concentrating force for paint removal, heavy equipment cleaning, and stubborn industrial buildup. The 5 HP electric motor runs on 230-volt, 25-amp power for indoor-safe operation.
5 HP Motor at 2,700 PSI
The 5 HP enclosed motor with thermal overload protection pushes the triplex plunger pump to 2,700 PSI, the highest pressure in the SHDE cart lineup. Ceramic plungers and stainless steel valves withstand the elevated pressure. The diesel burner feeds from a 5-gallon tank through a schedule 80 coil with stainless steel wrap, and an adjustable thermostat controls output temperature up to 195 degrees Fahrenheit.
Versatile Cart Platform
Weighing 365 pounds, the 2725SHDE rides on a 34 x 27 x 47 inch cart with two 13-inch wheels. The hose and wand holder organizes the 50-foot by 3/8-inch hose and dual wand. A female socket accommodates an optional accessory reel. The 35-foot GFCI power cord and quick-change nozzles in 0, 15, 25, and 40 degree patterns round out the package for flexible deployment across job sites.
Features
- Economical Hot Water Pressure Washing: SH electric model are engineered to deliver 6,750 cleaning units (2,700 PSI × 2.5 GPM), this unit meets the requirements of budget-friendly hot water cleaning applications.
- Portable and Convenient Frame: Equipped with a hose and wand holder, and rolls easily on two 13" wheels.
- Accessory Compatibility: Features a female socket for optional accessory reel mounting.
- Reliable Motor and Pump: Includes a totally enclosed, thermal overload-protected motor and an industrial triplex plunger pump with ceramic plungers and stainless steel valves.
- Chemical Injection and System Protection: Equipped with low-pressure chemical injection, an unloader valve, and a secondary pressure pop-off for added safety.
- Advanced Burner System: Features a rust-free fuel tank, schedule 80 coil with stainless steel wrap, adjustable thermostat, and temperature limit switch for up to 195 degrees F.
- Heavy-Duty Cleaning Gun: Comes with a dual wand and side handle valve for switching between high-pressure cleaning and detergent application.
- Quick-Change Nozzles: Includes 0 degrees , 15 degrees , 25 degrees , and 40 degrees nozzles for versatile cleaning tasks.
- Attention CA Residents: Prop 65 Warning
Specifications
|
Water Type |
Hot |
|
Powered By |
Electric Motor |
|
Mounting Type |
Cart |
|
Flow Rate (GPM / LPM) |
2.5 / 9.5 |
|
Horsepower |
5 |
|
Product Dimensions |
34” × 27” × 47” |
|
Voltage / Amperage / Phase |
230 Volt / 25 Amp / 1 |
|
Pump Thermal Protection |
Mechanical |
|
Max Pump Inlet Water Temp |
140 degrees F |
|
Hose Dimension |
50’ × 3/8” |
|
Power Cord |
35’ with GFCI |
|
Ship Weight |
365 |
|
Heated By |
Diesel Fuel |
|
Burner Fuel Tank Capacity |
5 Gallon |
|
Burner Fuel Type |
Diesel Fuel |
|
Burner Stack Dimension |
8” |
|
Pressure (PSI / Bar) |
2700 / 186 |
Max PSI |
2,700 PSI |
Flow Rate (GPM) |
2.5 GPM |
Voltage |
230V |
Amperage |
25A |
Fuel Type |
Diesel |
Pump Type |
Triplex Plunger |
Fuel Tank Capacity |
5 gal |
