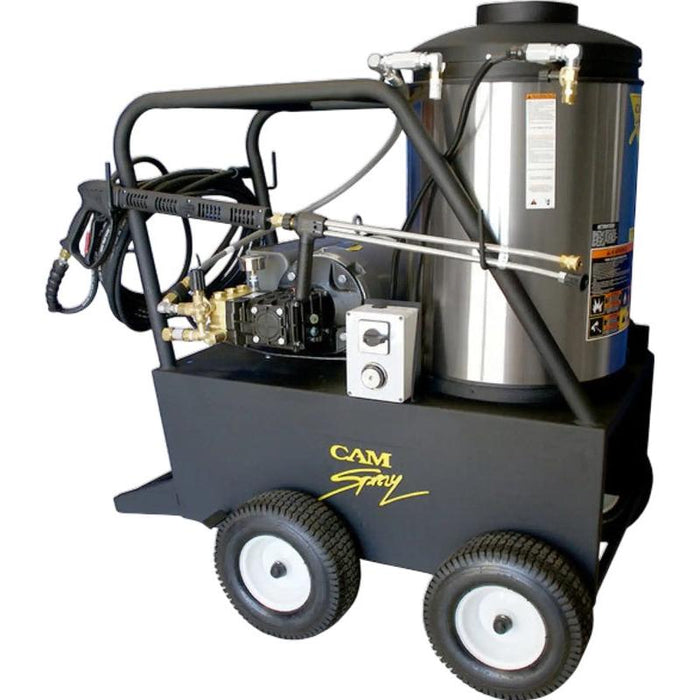

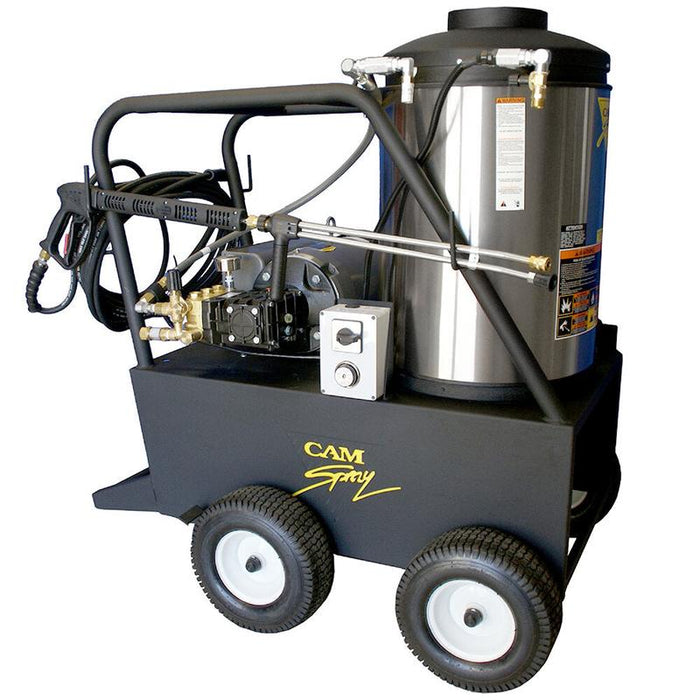

Cam Spray 3000QE Pressure Washer Electric Powered Diesel Fired Hot Water 4 GPM 3,000 PSI

Cam Spray 3000QE Diesel-Fired Hot Water Cleaning System

Generating 3,000 PSI at 4 GPM for 12,000 cleaning units, the Cam Spray 3000QE brings serious hot water cleaning capacity to industrial environments. Diesel-fired heating reaches 195 degrees Fahrenheit, dissolving grease and oil that cold water leaves behind. The 7.5 HP electric motor on 230-volt, 34-amp power keeps exhaust out of the work area while the diesel burner handles heat production.

7.5 HP Electric Motor on the QE Frame

The 3000QE uses the full QE platform at 52 x 32 x 49 inches with four 13-inch wheels supporting 650 pounds. The 7.5 HP enclosed motor with thermal overload protection drives the triplex plunger pump with ceramic plungers and stainless steel valves. A 35-foot GFCI power cord provides longer reach than the 10-foot cord found on higher-amperage QE models.

9-Gallon Tank with Extended Run Capacity

The 9-gallon diesel tank powers the schedule 80 coil and stainless steel wrap burner system for extended cleaning sessions. The adjustable thermostat dials water temperature to match the job, from warm rinses to full 195-degree degreasing. The female socket accommodates optional accessory reels, and the dual wand with side-handle valve toggles between pressure washing and chemical application.

Features

• Easy Mobility: Heavy-duty frame with four 13" wheels and hose/wand rack for easy transportation.
• Accessory Compatibility: Features a female socket for optional accessory reel mounting.
• Industrial Motor and Pump: Equipped with a totally enclosed industrial motor, thermal overload protection, and a triplex plunger pump with ceramic plungers and stainless steel valves.
• Chemical Injection: Includes low-pressure chemical injection for efficient detergent application.
• Safety Features: Protected by an unloader valve and secondary pressure pop-off for system safety.
• Burner System: Rust-free fuel tank, schedule 80 coil with stainless steel wrap, adjustable thermostat, and temperature limit switch for max 195 degrees F.
• Heavy-Duty Trigger Gun: Features a dual wand with side handle valve for easy switching between high-pressure cleaning and detergent application.
• Quick-Change Nozzles: Comes with 0 degrees , 15 degrees , 25 degrees , and 40 degrees nozzles for versatile cleaning tasks.
• Attention CA Residents: Prop 65 Warning

Specifications

Manuals and Documents

Electric Hot Water Skid Manual
