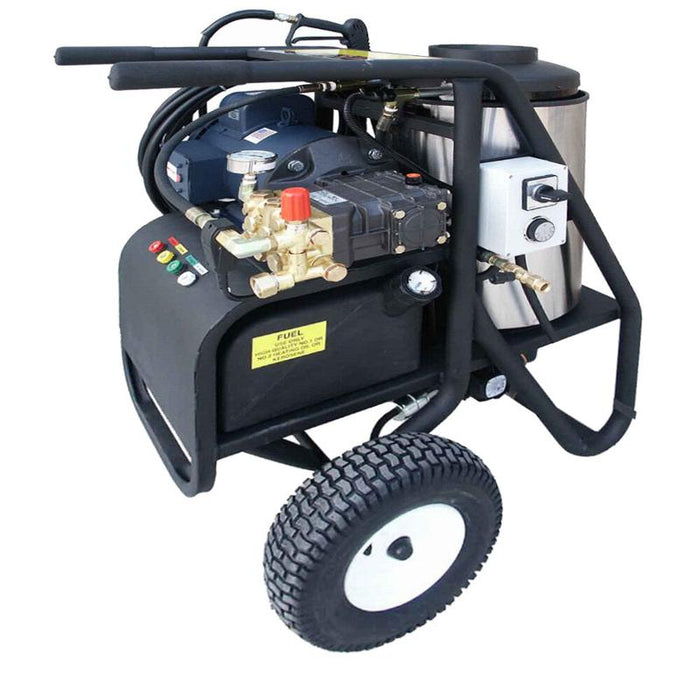

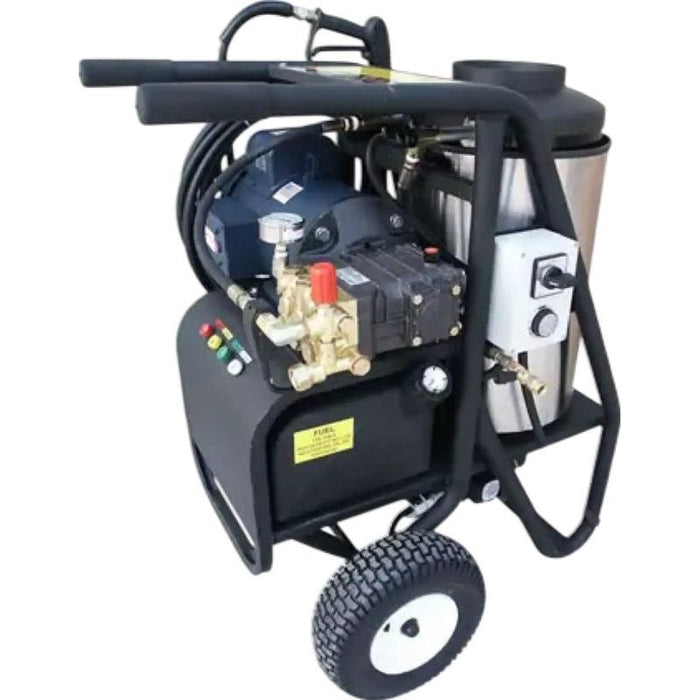

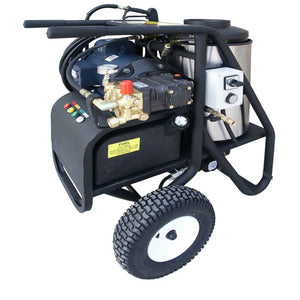

Cam Spray 3000SHDE electric powered diesel fired hot water pressure washer cart, angled view

Cam Spray 3000SHDE Pressure Washer Electric Powered Diesel Fired Hot Water 4 GPM 3,000 PSI

$9,485.38 - $9,485.38

$9,485.38

$9,485.38 - $9,485.38

$9,485.38

In stock, ready to ship

Liftgate Service*

This machine ships free by freight carrier to a commercial address with a loading dock or forklift, or to the carrier's terminal for pickup. Liftgate service brings the crate to your address and lowers it to the ground at the curb, one flat fee per order. Crated weight about 460 lb. Delivery takes 5 to 8 business days. Questions? Call (219) 327-1138.

Is this the right machine for my job?

Answer a few quick questions and see whether the Cam Spray 3000SHDE fits your job, your site and your water supply, or which machines fit better.

Takes under a minute. No email needed to see results.

The Cam Spray 3000SHDE is the top of the SHDE cart line: 3,000 PSI at 4 GPM, 12,000 cleaning units, from a 7.5 HP motor on 230 volt 34 amp single phase power, with a diesel burner heating water to 195 degrees from a 5 gallon tank. At 460 pounds on two 13 inch wheels it moves through a shop door where the bigger QE carts will not, and the 35 foot GFCI cord and 50 foot hose reach across a bay for concrete restoration, degreasing and equipment cleaning.

Cam Spray 3000SHDE 3,000 PSI 4 GPM Electric Powered Diesel Fired Hot Water Pressure Washer on a Two Wheel Cart

The Cam Spray 3000SHDE is the top of the SHDE cart lineup, producing 3,000 PSI at 4 GPM with diesel-fired hot water up to 195 degrees Fahrenheit. That equals 12,000 cleaning units for concrete restoration, industrial degreasing, and heavy equipment cleaning. The 7.5 HP electric motor draws 34 amps on 230-volt single-phase power, and the diesel burner handles water heating independently.

7.5 HP Electric Motor with Maximum SHDE Output on the Cam Spray 3000SHDE

The 7.5 HP enclosed motor with thermal overload protection is the largest in the SHDE series. It drives a triplex plunger pump with ceramic plungers and stainless steel valves at full 3,000 PSI output. The diesel burner draws from a 5-gallon fuel tank and heats water through a schedule 80 coil with stainless steel wrap. An adjustable thermostat and temperature limit switch manage the heating cycle safely.

460-Pound Cart with Full Accessory Package on the Cam Spray 3000SHDE

At 460 pounds, the 3000SHDE is a substantial piece of equipment on its 34 x 27 x 47 inch cart with two 13-inch wheels. The 35-foot GFCI power cord and 50-foot by 3/8-inch hose provide generous working range. Low-pressure chemical injection, a dual wand with side-handle valve, and quick-change nozzles in four patterns give operators the tools for both broad surface cleaning and focused degreasing work.

Cam Spray 3000SHDE Features

Economical Hot Water Cleaning: Designed for cost-effective hot water pressure washing applications.
Portable Frame: Includes a hose and wand holder, with easy mobility on two 13 in wheels.
Accessory Compatibility: Female socket allows for optional accessory reel mounting.
Reliable Motor and Pump: Features a fully enclosed, thermal overload-protected industrial motor and a triplex plunger pump with ceramic plungers and stainless steel valves.
Chemical Injection and System Protection: Equipped with low-pressure chemical injection, unloader valve, and secondary pressure pop-off for added safety.
Efficient Burner System: Includes a rust-free fuel tank, schedule 80 coil with stainless steel wrap, adjustable thermostat, and temperature limit switch for up to 195 degrees F.
Heavy-Duty Trigger Gun: Dual wand with a side handle valve allows easy switching between high-pressure cleaning and detergent application.
Quick-Change Nozzles: Includes 0 degrees, 15 degrees, 25 degrees, and 40 degrees nozzles for versatile cleaning tasks.
Attention CA Residents: Prop 65 Warning

Cam Spray 3000SHDE Specifications

Availability	Cam Spray ReadyShip model, usually ships from factory stock
Water Type	Hot
Powered By	Electric Motor
Mounting Type	Cart
Flow Rate (GPM / LPM)	4 / 15.2
Horsepower	7.5
Product Dimensions	34 in × 27 in × 47 in
Voltage / Amperage / Phase	230 Volt / 34 Amp / 1
Pump Thermal Protection	Mechanical
Max Pump Inlet Water Temp	140 degrees F
Hose Dimension	50 ft × 3/8 in
Power Cord	35 ft with GFCI
Ship Weight	460
Heated By	Diesel Fuel
Burner Fuel Tank Capacity	5 Gallon
Burner Fuel Type	Diesel Fuel
Burner Stack Dimension	8 in
Pressure (PSI / Bar)	3000 / 207
Max PSI	3,000 PSI
Flow Rate (GPM)	4 GPM
Voltage	230V
Amperage	34A
Fuel Type	Diesel
Pump Type	Triplex Plunger
Fuel Tank Capacity	5 gal

Cam Spray 3000SHDE What's In the Box

High-pressure hose (50 ft x 3/8 in)
Heavy-duty trigger gun
Dual wand with side handle valve
Quick change nozzles (0 degrees, 15 degrees, 25 degrees, 40 degrees )
35 ft power cord with GFCI (varies by model)
