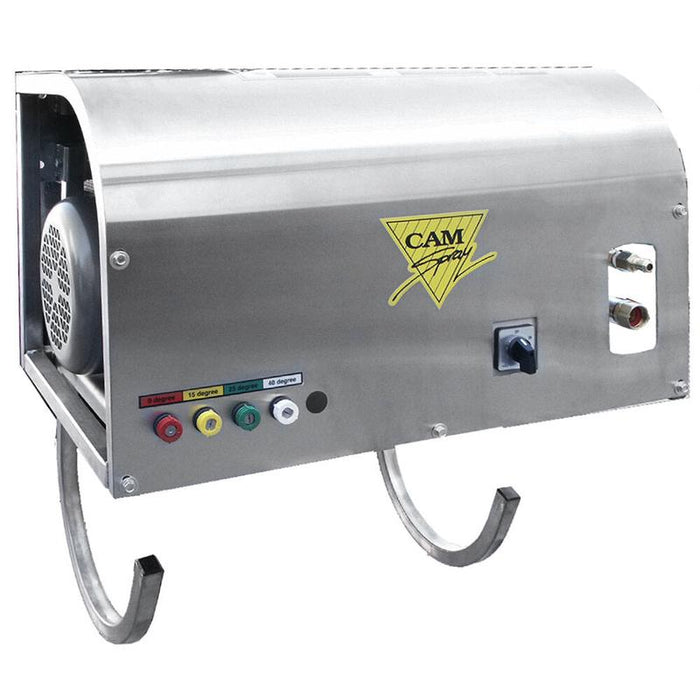

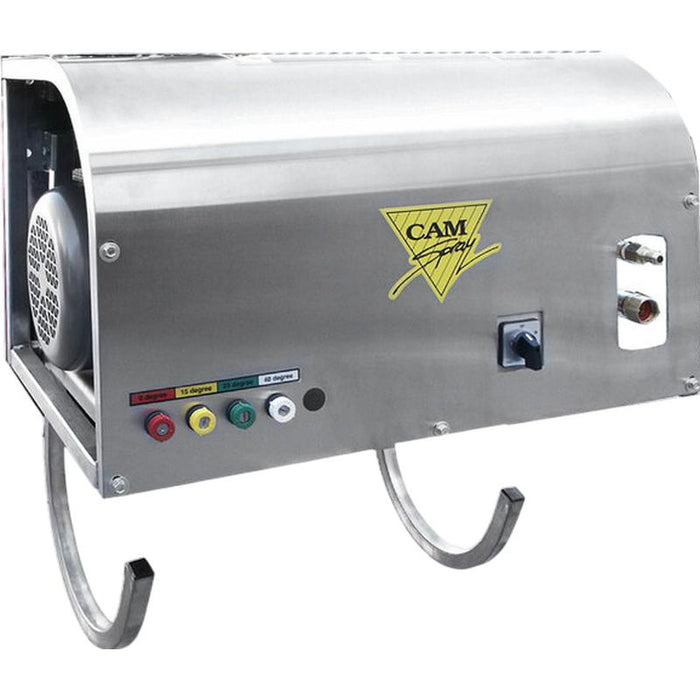

Cam Spray 3000WM/SS Pressure Washer 208V Electric Powered Deluxe Wall Mount Cold Water 4 GPM 3,000 PSI
Cam Spray 3000WM/SS 208V Wall Mount Pressure Washer
With 3,000 PSI at 4 GPM producing 12,000 cleaning units, the Cam Spray 3000WM/SS 208V is the highest-output single-phase wall mount in the Cam Spray lineup. The 7.5 HP motor runs on 208-volt, 32.6-amp single-phase power, delivering enough force for concrete cleaning, paint stripping, and heavy equipment degreasing from a fixed wall position.
7.5 HP Single-Phase Powerhouse
The 7.5 HP enclosed motor with thermal overload protection is the largest motor Cam Spray fits into a wall mount frame. The stainless steel chassis measures 28 x 22 x 30 inches and weighs 260 pounds. A permanent wall bracket holds the load, and the slide-in frame design simplifies installation and future service. The 10-foot power cord keeps wiring runs short for this high-amperage unit.
High-Pressure Cold Water Cleaning
At 3,000 PSI, this wall mount handles jobs typically reserved for portable trailer units. The triplex plunger pump with ceramic plungers and stainless steel valves manages the high pressure and 4 GPM flow rate. Low-pressure chemical injection through the soap tip allows detergent application, and the dual valve lets operators switch between two concentrates.
Features
- Proven Design: Popular wall-mount unit, trusted for over 25 years.
- Durable Construction: Available in full stainless steel frame for heavy-duty environments, with a protective cover.
- Easy Wall Mounting: Easily mounts to a reinforced wall using a permanent mounting bracket and slides into place.
- Convenient Storage: Includes two hooks for storing the hose and trigger gun, plus grommets for Q-Meg nozzle storage.
- Dual Chemical Valve: Choose between two concentrate chemicals and control detergent proportion with a simple knob.
- Powerful Performance: 3,000 PSI with an industrial motor, fully enclosed and thermal overload protected.
- Commercial-grade Pump: Industrial triplex plunger pump with ceramic plungers and stainless steel valves, protected by an unloader valve.
- Chemical Injection: Low-pressure chemical injection system, activated using the soap tip for detergent application.
- Included Accessories: Comes with 0 degrees , 15 degrees , 25 degrees , and 40 degrees Q-Meg tips and a trigger gun.
- Attention CA Residents: Prop 65 Warning
Specifications
|
Water Type |
Cold |
|
Powered By |
Electric Motor |
|
Mounting Type |
Wall Mount |
|
Flow Rate (GPM / LPM) |
4 / 15.2 |
|
Horsepower |
7.5 |
|
Product Dimensions |
28” × 22” × 30” |
|
Voltage / Amperage / Phase |
208 Volt / 32.6 Amp / 1 |
|
Pump Thermal Protection |
Mechanical |
|
Max Pump Inlet Water Temp |
160 degrees F |
|
Hose Dimension |
50’ × 3/8” |
|
Power Cord |
10’ |
|
Ship Weight |
260 |
|
Pressure (PSI / Bar) |
3000 / 207 |
Max PSI |
3,000 PSI |
Flow Rate (GPM) |
4 GPM |
Voltage |
208V |
Amperage |
32.6A |
Fuel Type |
Electric |
Pump Type |
Triplex Plunger |
