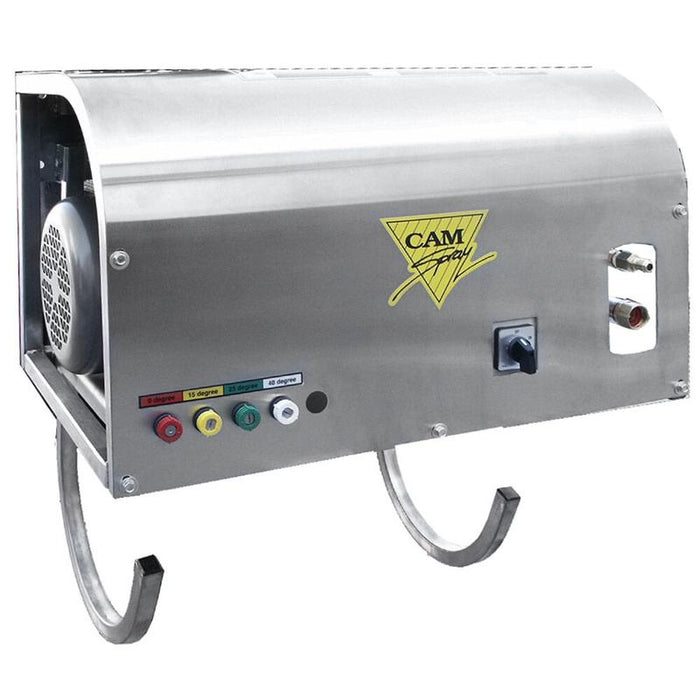

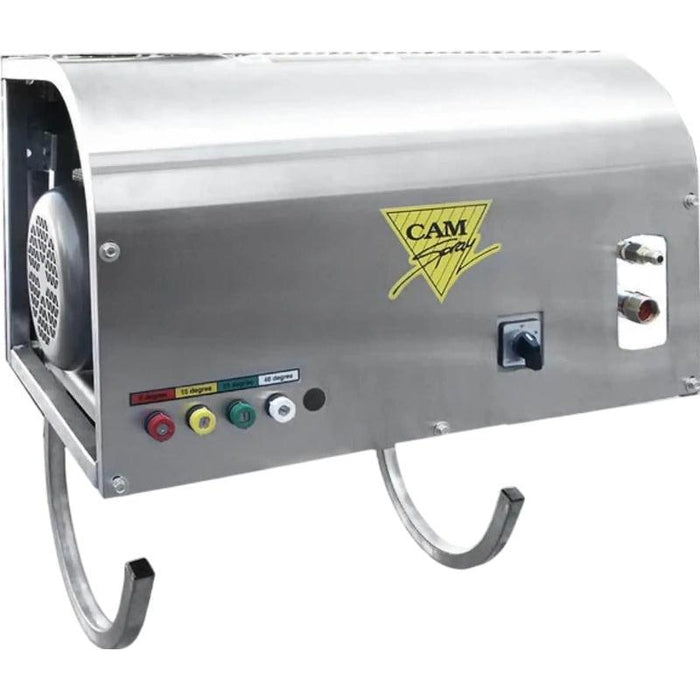

Cam Spray 3000WM/SS Pressure Washer 230V Electric Powered Deluxe Wall Mount Cold Water 4 GPM 3,000 PSI
Cam Spray 3000WM/SS 230V Stainless Steel Wall Mount
The 230-volt version of the Cam Spray 3000WM/SS pairs a 7.5 HP motor with a triplex plunger pump to deliver 3,000 PSI at 4 GPM. Drawing 34 amps on single-phase 230-volt power, this stainless steel wall mount handles concrete restoration, driveway stripping, and industrial degreasing jobs. The 280-pound unit installs permanently on a reinforced wall bracket.
230V Single-Phase for Commercial Facilities
Most commercial buildings have 230-volt single-phase circuits available, making this version straightforward to install without three-phase panel upgrades. The stainless steel frame measures 28 x 22 x 30 inches and slides onto the wall bracket for quick setup. A protective cover shields the motor and pump, and integrated hooks store the hose, trigger gun, and Q-Meg tips.
12,000 Cleaning Units from a Fixed Position
Multiplying 3,000 PSI by 4 GPM yields 12,000 cleaning units, matching many portable cart-based machines. The triplex plunger pump uses ceramic plungers and stainless steel valves. The 50-foot by 3/8-inch hose and dual chemical valve give operators range and flexibility for multi-surface work, all from a single wall-mounted station.
Features
- Proven Design: Popular wall-mount unit, trusted for over 25 years.
- Durable Construction: Available in full stainless steel frame for heavy-duty environments, with a protective cover.
- Easy Wall Mounting: Easily mounts to a reinforced wall using a permanent mounting bracket and slides into place.
- Convenient Storage: Includes two hooks for storing the hose and trigger gun, plus grommets for Q-Meg nozzle storage.
- Dual Chemical Valve: Choose between two concentrate chemicals and control detergent proportion with a simple knob.
- Powerful Performance: 3,000 PSI with an industrial motor, fully enclosed and thermal overload protected.
- Commercial-grade Pump: Industrial triplex plunger pump with ceramic plungers and stainless steel valves, protected by an unloader valve.
- Chemical Injection: Low-pressure chemical injection system, activated using the soap tip for detergent application.
- Included Accessories: Comes with 0 degrees , 15 degrees , 25 degrees , and 40 degrees Q-Meg tips and a trigger gun.
- Attention CA Residents: Prop 65 Warning
Specifications
|
Water Type |
Cold |
|
Powered By |
Electric Motor |
|
Mounting Type |
Wall Mount |
|
Flow Rate (GPM / LPM) |
4 / 15.2 |
|
Horsepower |
7.5 |
|
Product Dimensions |
28” × 22” × 30” |
|
Voltage / Amperage / Phase |
230 Volt / 34 Amp / 1 |
|
Pump Thermal Protection |
Mechanical |
|
Max Pump Inlet Water Temp |
160 degrees F |
|
Hose Dimension |
50’ × 3/8” |
|
Power Cord |
10’ |
|
Ship Weight |
280 |
|
Pressure (PSI / Bar) |
3000 / 207 |
Max PSI |
3,000 PSI |
Flow Rate (GPM) |
4 GPM |
Voltage |
230V |
Amperage |
34A |
Fuel Type |
Electric |
Pump Type |
Triplex Plunger |
