Cam Spray 3000WM/SSM3 Pressure Washer 460V Electric Powered Deluxe Wall Mount Cold Water 4 GPM 3,000 PSI

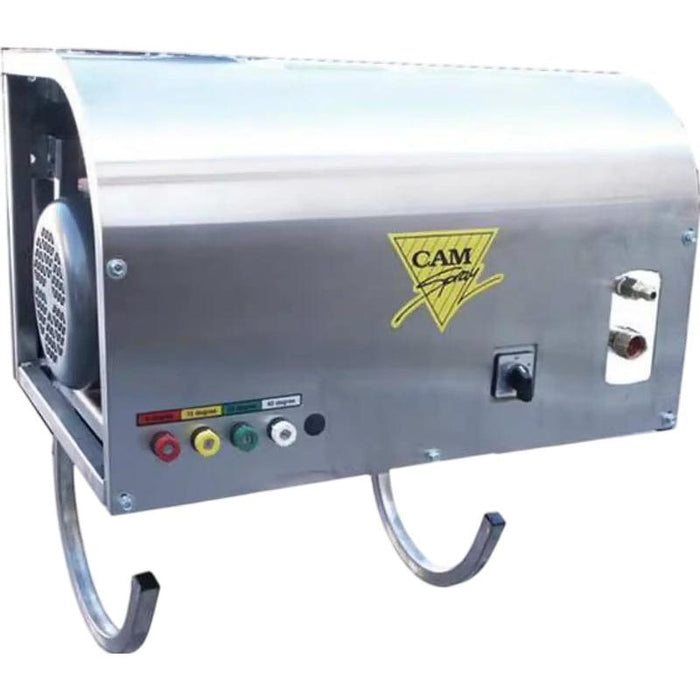

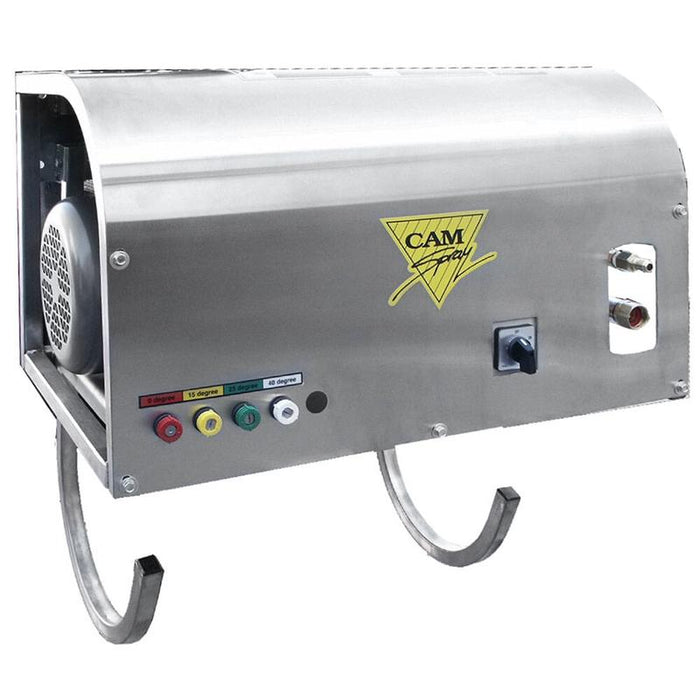

Cam Spray 3000WM/SSM3 460V Industrial Wall Mount
The Cam Spray 3000WM/SSM3 460V is purpose-built for heavy industrial facilities running 460-volt three-phase power. It delivers 3,000 PSI at 4 GPM through a 7.5 HP three-phase motor with minimal circuit load at 460 volts. Stainless steel wall mount construction resists the aggressive chemicals and constant moisture found in manufacturing plants, processing facilities, and large-scale fleet wash operations.
460V Three-Phase for Heavy Industry
Large industrial facilities typically run 460-volt three-phase power throughout, and the 3000WM/SSM3 460V connects directly without step-down transformers. The 270-pound stainless steel frame measures 28 x 22 x 30 inches and mounts on a permanent wall bracket. The 10-foot power cord keeps the connection short for high-voltage applications. Internal components sit behind a protective cover.
12,000 Cleaning Units, Zero Floor Space
Wall mounting frees every square foot of floor space while delivering the same 12,000 cleaning units as a portable unit. The industrial triplex plunger pump with ceramic plungers and stainless steel valves runs behind an unloader valve. The dual chemical valve and low-pressure injection system allow operators to apply two different detergent concentrates through the included 50-foot by 3/8-inch hose.
Features
- Proven Design: Popular wall-mount unit, trusted for over 25 years.
- Durable Construction: Available in full stainless steel frame for heavy-duty environments, with a protective cover.
- Easy Wall Mounting: Easily mounts to a reinforced wall using a permanent mounting bracket and slides into place.
- Convenient Storage: Includes two hooks for storing the hose and trigger gun, plus grommets for Q-Meg nozzle storage.
- Dual Chemical Valve: Choose between two concentrate chemicals and control detergent proportion with a simple knob.
- Powerful Performance: 3,000 PSI with an industrial motor, fully enclosed and thermal overload protected.
- Commercial-grade Pump: Industrial triplex plunger pump with ceramic plungers and stainless steel valves, protected by an unloader valve.
- Chemical Injection: Low-pressure chemical injection system, activated using the soap tip for detergent application.
- Included Accessories: Comes with 0 degrees , 15 degrees , 25 degrees , and 40 degrees Q-Meg tips and a trigger gun.
- Attention CA Residents: Prop 65 Warning
Specifications
|
Water Type |
Cold |
|
Powered By |
Electric Motor |
|
Mounting Type |
Wall Mount |
|
Flow Rate (GPM / LPM) |
4 / 15.2 |
|
Horsepower |
7.5 |
|
Product Dimensions |
28” × 22” × 30” |
|
Voltage / Amperage / Phase |
460 Volt / 3 Phase |
|
Pump Thermal Protection |
Mechanical |
|
Max Pump Inlet Water Temp |
160 degrees F |
|
Hose Dimension |
50’ × 3/8” |
|
Power Cord |
10’ |
|
Ship Weight |
270 |
|
Pressure (PSI / Bar) |
3000 / 207 |
Max PSI |
3,000 PSI |
Flow Rate (GPM) |
4 GPM |
Voltage |
460V |
Phase |
Three |
Fuel Type |
Electric |
Pump Type |
Triplex Plunger |
