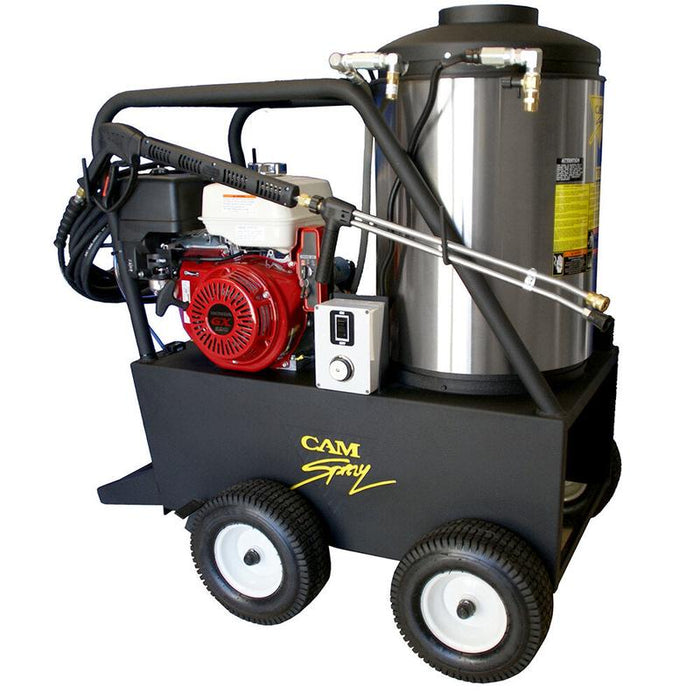

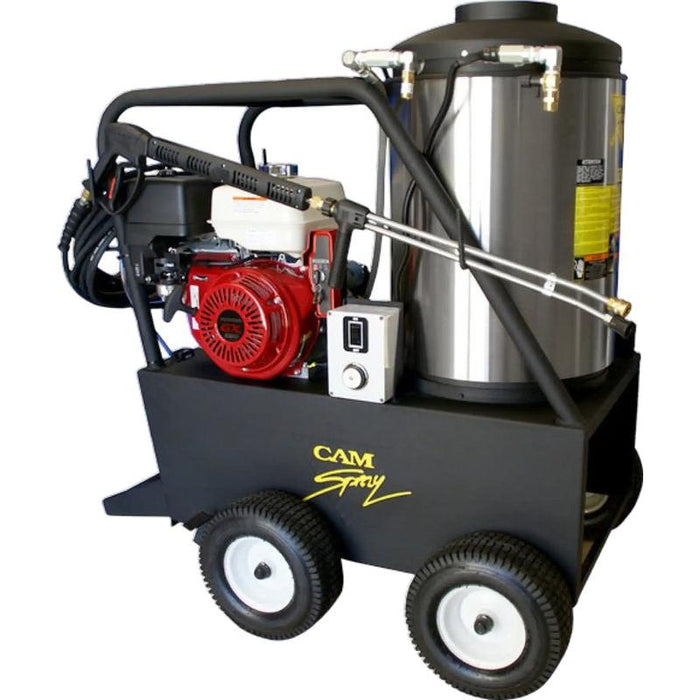

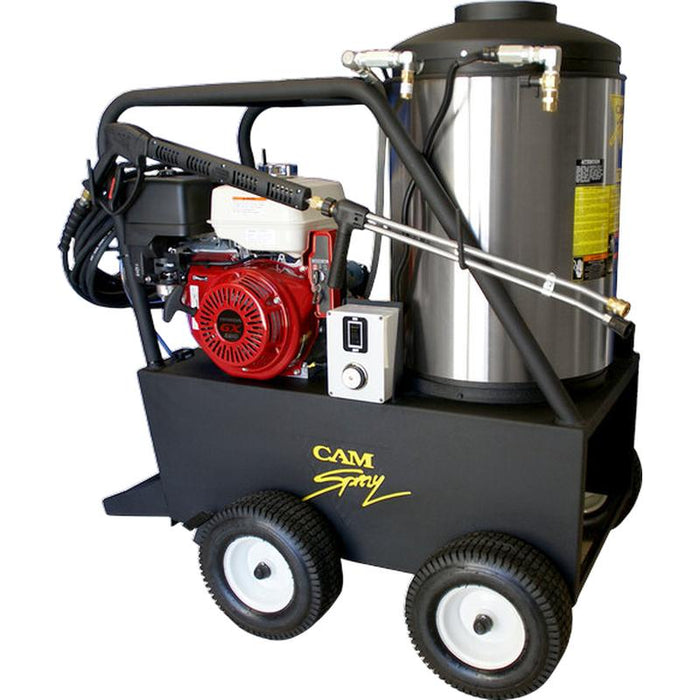

Cam Spray 3040QH Pressure Washer Gas Powered Diesel Fired Hot Water 4 GPM 3,000 PSI

Cam Spray 3040QH Honda-Powered Hot Water Pressure Washer

Powered by an 11.7 HP Honda GX390 gas engine, the Cam Spray 3040QH delivers 3,000 PSI at 4 GPM with diesel-fired hot water up to 195 degrees Fahrenheit. The Honda engine provides reliable starting and proven durability for remote job sites, construction projects, and outdoor commercial operations where electrical power is unavailable. The 12,000 cleaning units handle concrete cleaning, equipment degreasing, and oil removal.

Honda GX Series Engine with Diesel Burner

The 389cc Honda engine runs on gasoline from a 6.9-quart fuel tank, while a separate 9-gallon diesel tank supplies the burner system. The burner uses a schedule 80 coil with stainless steel wrap, an adjustable thermostat, and a temperature limit switch to control water heating. The triplex plunger pump with ceramic plungers and stainless steel valves delivers consistent output at full pressure.

580-Pound Portable Platform

The 52 x 32 x 49 inch heavy-duty frame carries 580 pounds on 13-inch wheels across job sites, parking lots, and construction areas. The hose rack and wand holder keep the 50-foot by 3/8-inch hose and dual wand secured during transport. A Group 24 battery (not included) handles engine starting. The heavy-duty trigger gun with side-handle valve allows switching between high-pressure cleaning and low-pressure detergent application.

Features

• Portable Design: Heavy-duty frame with a hose rack, wand holder, and 13" wheels for easy mobility across various terrains.
• Powerful Performance: 3,000 PSI powered by an industrial Honda gas engine and a triplex plunger pump with ceramic plungers and stainless steel valves.
• Chemical Injection: Includes low-pressure chemical injection for effective detergent application.
• Safety Features: System protected by an unloader valve and secondary pressure pop-off for safe operation.
• Burner System: Rust-free fuel tank, schedule 80 coil with stainless steel wrap, adjustable thermostat, and temperature limit switch for up to 195 degrees F.
• Versatile Cleaning Options: Heavy-duty trigger gun with a dual wand and side handle valve for switching between high-pressure cleaning and detergent application.
• Quick-Change Nozzles: Includes 0 degrees , 15 degrees , 25 degrees , and 40 degrees nozzles for various cleaning tasks.
• Battery Requirement: Requires a Group 24 battery (not included), available at local auto parts stores.
• Attention CA Residents: Prop 65 Warning

Specifications

What's In the Box

• High-pressure hose (50' x 3/8")
• Heavy-duty trigger gun
• Dual wand with side handle valve
• Quick change nozzles (0 degrees , 15 degrees , 25 degrees , 40 degrees )

Manuals and Documents

• Gas/Diesel Pressure Washer Manual
