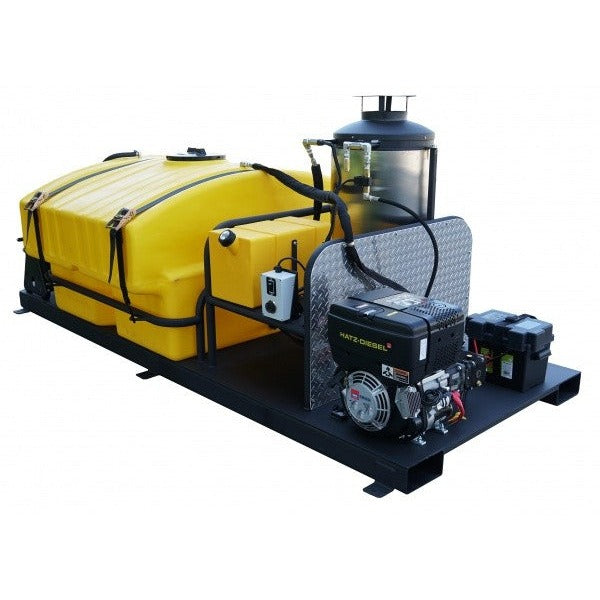

Cam Spray 3040TMD-HOT Pressure Washer Diesel Powered Skid Mount Diesel Fired Hot Water 4 GPM 3,000 PSI
Cam Spray 3040TMD-HOT Hot Water Pressure Washer
The Cam Spray 3040TMD-HOT delivers 3,000 PSI at 4 GPM from a 19.9 / 14.6 kw Hatz Diesel diesel engine in a deluxe skid mounted hot water, diesel engine with diesel fired burner configuration.
Motor, Pump and Protection
A Hatz industrial air cooled diesel engine drives a triplex plunger pump with ceramic plungers and stainless steel valves, protected by an unloader valve and a secondary pressure pop off. The diesel burner has a rust free fuel tank and a Schedule 80 coil wrapped in stainless steel, controlled by an adjustable thermostat and a temperature limit switch for a maximum of 195 degrees Fahrenheit.
Installation and Included Equipment
The skid mounts on a flat bed truck or trailer and carries a water tank. The heavy duty trigger gun and dual wand with side handle valve switch between high pressure cleaning and detergent application, with quick change 0, 15, 25 and 40 degree nozzles. A Group 24 battery is included. Ships with a 100 ft x 3/8 in high pressure hose, a 300 gallon water tank, a 9 Gallon engine fuel tank and a 9 Gallon burner fuel tank. Product dimensions 132 in x 60 in x 60 in. Maximum pump inlet water temperature 140 degrees F.
Specifications
- Pressure: 3,000 PSI (207 bar)
- Flow: 4 GPM (15.2 LPM)
- Power: Diesel Engine, 19.9 / 14.6 kw, Hatz Diesel
- Water: hot, Diesel Fuel
- Mounting: skid
- Hose: 100 ft x 3/8 in
- Water tank: 300 gallons
- Burner stack: 8 in
- Ship weight: 1500 lb
- Model: 3040TMD-HOT
