Cam Spray 4000QE Pressure Washer Electric Powered Diesel Fired Hot Water 4 GPM 4,000 PSI

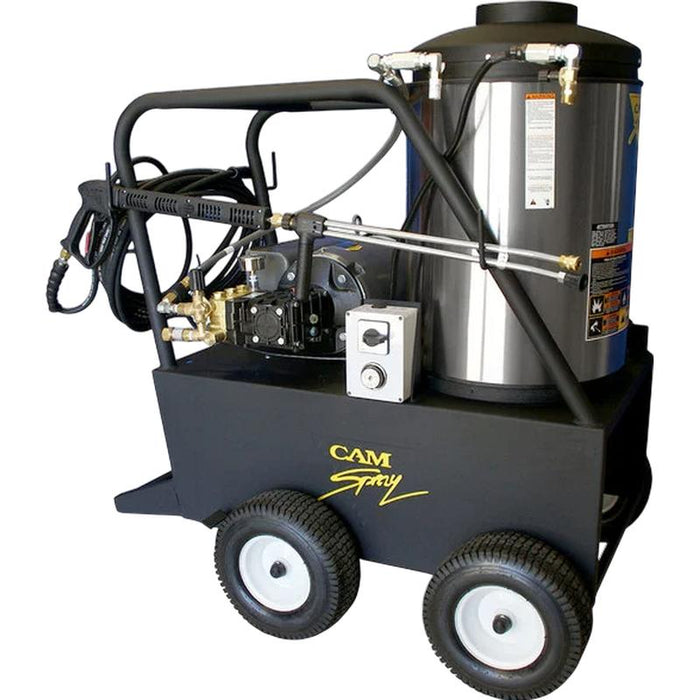

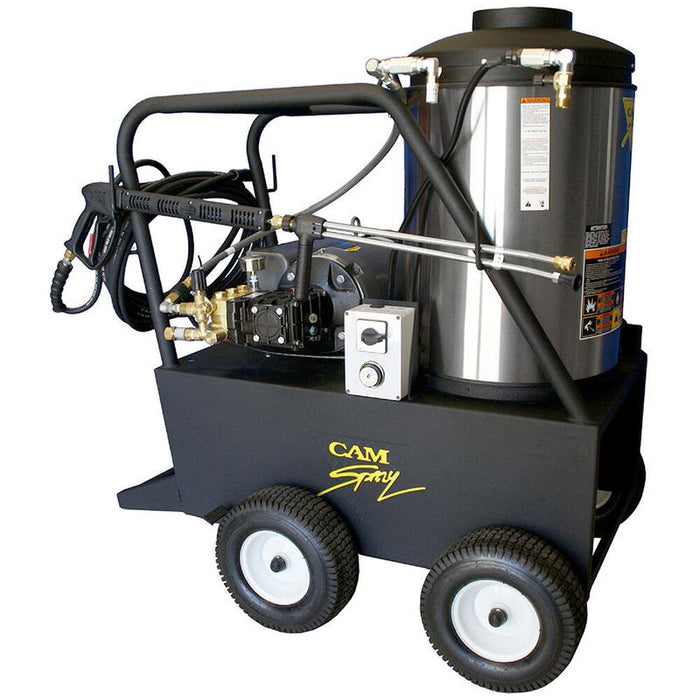

Cam Spray 4000QE Industrial Hot Water Pressure Washer

The Cam Spray 4000QE reaches 4,000 PSI at 4 GPM, producing 16,000 cleaning units with diesel-fired hot water at up to 195 degrees Fahrenheit. This is the highest-pressure electric-powered model in the Cam Spray QE series. At 4,000 PSI with hot water, the 4000QE strips paint, removes heavy industrial buildup, and cleans concrete surfaces that lower-pressure units cannot touch.

10 HP Motor Pushing 4,000 PSI

The 10 HP enclosed motor with thermal overload protection draws 40 amps on 230-volt single-phase power to drive the triplex plunger pump at maximum pressure. Ceramic plungers and stainless steel valves manage the 4,000 PSI load continuously. The diesel burner system feeds from a 9-gallon tank through a schedule 80 coil with stainless steel wrap, controlled by an adjustable thermostat and temperature limit switch.

Four-Wheel Heavy-Duty Frame

Weighing 675 pounds, the 4000QE sits on a 52 x 32 x 49 inch frame with four 13-inch wheels and built-in hose and wand storage. The female socket accepts optional swivel hose reel mounting. A 10-foot power cord connects to the 230-volt circuit, and the 50-foot by 3/8-inch hose delivers hot, high-pressure water to the work area. The dual wand with side-handle valve handles both cleaning and detergent modes.

Features

• Easy Mobility: Heavy-duty frame with four 13" wheels and hose/wand rack for convenient transportation.
• Accessory Compatibility: Female socket design allows for easy mounting of optional swivel hose reels.
• Powerful Performance: 4 GPM, 4,000 PSI with an industrial motor that is totally enclosed and thermal overload protected.
• Industrial Pump: Features a triplex plunger pump with ceramic plungers and stainless steel valves for durability and reliability.
• Chemical Injection: Equipped with low-pressure chemical injection for effective detergent application.
• Safety Features: System protected by an unloader valve and secondary pressure pop-off for operational safety.
• Burner System: Rust-free fuel tank, schedule 80 coil with stainless steel wrap, adjustable thermostat, and temperature limit switch for max 195 degrees F.
• Heavy-Duty Trigger Gun: Dual wand with side handle valve for seamless switching between high-pressure cleaning and detergent application.
• Quick-Change Nozzles: Includes 0 degrees , 15 degrees , 25 degrees , and 40 degrees nozzles for versatile cleaning tasks.
• Attention CA Residents: Prop 65 Warning

Specifications

What's In the Box

• High-pressure hose (50' x 3/8")
• Heavy-duty trigger gun
• Dual wand with side handle valve
• Quick change nozzles (0 degrees , 15 degrees , 25 degrees , 40 degrees )

Manuals and Documents

Electric Hot Water Skid Manual
