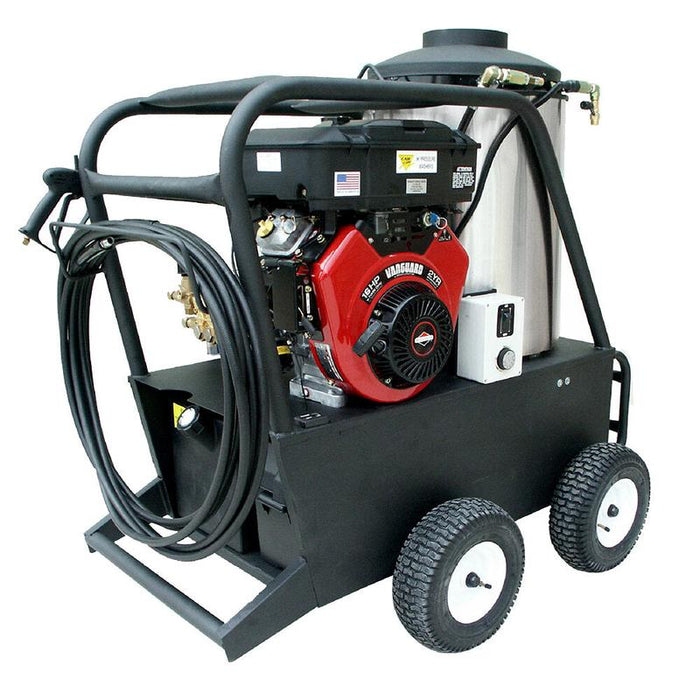

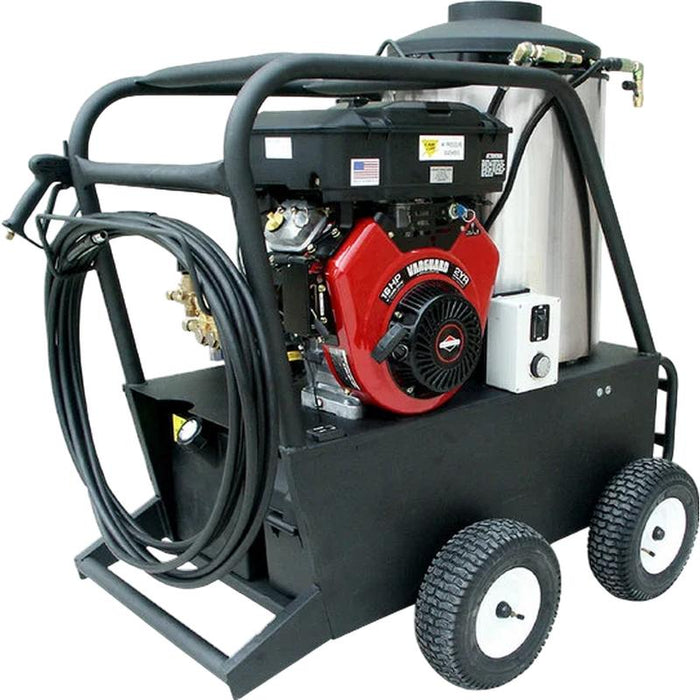

Cam Spray 4040QB gas powered diesel fired hot water pressure washer, angled view

Cam Spray 4040QB Pressure Washer Gas Powered Diesel Fired Hot Water 4 GPM 4,000 PSI

$11,965.38 - $11,965.38

$11,965.38

$11,965.38 - $11,965.38

$11,965.38

In stock, ready to ship

Liftgate Service*

This machine ships free by freight carrier to a commercial address with a loading dock or forklift, or to the carrier's terminal for pickup. Liftgate service brings the crate to your address and lowers it to the ground at the curb, one flat fee per order. Crated weight about 565 lb. Delivery takes 5 to 8 business days. Questions? Call (219) 327-1138.

Is this the right machine for my job?

Answer a few quick questions and see whether the Cam Spray 4040QB fits your job, your site and your water supply, or which machines fit better.

Takes under a minute. No email needed to see results.

The Cam Spray 4040QB is the fully portable hot water machine for a crew that works where there is no outlet: a 16 HP Briggs and Stratton Vanguard engine drives a triplex plunger pump to 4,000 PSI at 4 GPM, a diesel fired burner heats the water to 195 degrees Fahrenheit, and it needs nothing but fuel and a water supply. Ceramic plungers and stainless steel valves carry the pressure, 13 inch wheels roll it across a farm yard or a job site, and a 9 quart tank feeds the engine.

Cam Spray 4040QB 4,000 PSI 4 GPM Gas Powered Diesel Fired Hot Water Pressure Washer with 16 HP Vanguard Engine and Triplex Plunger Pump

The Cam Spray 4040QB pairs a 16 HP Briggs and Stratton Vanguard gas engine with a diesel-fired burner to produce 4,000 PSI at 4 GPM without requiring any electrical connection. Hot water reaches 195 degrees Fahrenheit for 16,000 cleaning units of grease-dissolving, oil-stripping cleaning power. This gas-powered unit goes anywhere a truck can deliver it, from remote construction sites to outdoor fleet yards.

Briggs and Stratton Vanguard 479cc Engine on the Cam Spray 4040QB

The 479cc Vanguard engine produces 16 HP to drive the triplex plunger pump at full 4,000 PSI output. Ceramic plungers and stainless steel valves handle the pressure and flow. The engine runs on gasoline from a 9-quart fuel tank, while a separate 9-gallon diesel tank feeds the burner. The schedule 80 coil with stainless steel wrap heats water through an adjustable thermostat and temperature limit switch.

Fully Portable Hot Water Cleaning on the Cam Spray 4040QB

No electrical hookup means the 4040QB operates completely off-grid. The heavy-duty frame rolls on 13-inch wheels with built-in hose rack and wand holder. At 565 pounds and 52 x 32 x 49 inches, the cart handles rough terrain and uneven surfaces. A Group 24 battery (not included) powers the starter. Quick-change nozzles in 0, 15, 25, and 40 degree patterns handle everything from precision cleaning to wide-area surface washing.

Cam Spray 4040QB Features

Mobile Design: Heavy-duty frame with hose rack, wand holder, and 13 in wheels for easy navigation on various terrains.
Powerful Engine & Pump: Equipped with an industrial Briggs & Stratton gas engine and a triplex plunger pump with ceramic plungers and stainless steel valves.
Chemical Injection & Protection: Features low-pressure chemical injection, an unloader valve, and a secondary pressure pop-off for system protection.
Efficient Burner System: Includes a rust-free fuel tank, schedule 80 coil with stainless steel wrap, adjustable thermostat, and temperature limit switch for a maximum temperature of 195 degrees F.
Versatile Trigger Gun & Wand: Heavy-duty trigger gun with dual wand and side handle valve for switching between high-pressure cleaning and detergent application.
Quick-Change Nozzles: Includes 0 degrees, 15 degrees, 25 degrees, and 40 degrees nozzles for various cleaning needs.
Battery Note: Group 24 battery not included; available at local auto parts stores.
Attention CA Residents: Prop 65 Warning

Cam Spray 4040QB Specifications

Build Time	Built to order, typically about 3 weeks
Water Type	Hot
Powered By	Vanguard Gas Engine
Mounting Type	Cart
Flow Rate (GPM / LPM)	4 / 15.2
Horsepower	16 hp / 479 cc
Product Dimensions	52 in × 32 in × 49 in
Pump Thermal Protection	Mechanical
Max Pump Inlet Water Temp	140 degrees F
Hose Dimension	50 ft × 3/8 in
Ship Weight	565
Engine Fuel Tank Capacity	9 Quarts
Heated By	Diesel Fuel
Burner Fuel Tank Capacity	9 Gallon
Burner Fuel Type	Diesel Fuel
Burner Stack Dimension	8 in
Pressure (PSI / Bar)	4000 / 276
Max PSI	4,000 PSI
Flow Rate (GPM)	4 GPM
Engine	Briggs & Stratton
Fuel Type	Diesel
Pump Type	Triplex Plunger
Fuel Tank Capacity	9 gal

What Ships With the Cam Spray 4040QB

High-pressure hose (50 ft x 3/8 in)
Heavy-duty trigger gun
Dual wand with side handle valve
Quick change nozzles (0 degrees, 15 degrees, 25 degrees, 40 degrees )

Cam Spray 4040QB Manual and Documents

Cam Spray 4040QB gas and diesel pressure washer manual (PDF)
