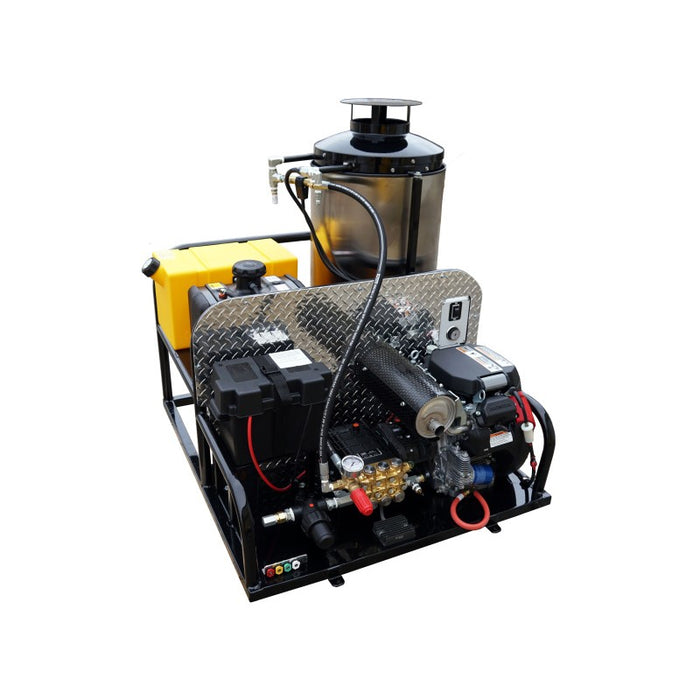

Cam Spray 4055CBG skid mount hot water pressure washer, front view

Cam Spray 4055CBG Pressure Washer Gas Powered Skid Mount Diesel Fired Hot Water 5.5 GPM 4,000 PSI

$14,395.78 - $14,395.78

$14,395.78

$14,395.78 - $14,395.78

$14,395.78

In stock, ready to ship

Liftgate Service*

This machine ships free by freight carrier to a commercial address with a loading dock or forklift, or to the carrier's terminal for pickup. Liftgate service brings the crate to your address and lowers it to the ground at the curb, one flat fee per order. Crated weight about 650 lb. Delivery takes 5 to 8 business days. Questions? Call (219) 327-1138.

Is this the right machine for my job?

Answer a few quick questions and see whether the Cam Spray 4055CBG fits your job, your site and your water supply, or which machines fit better.

Takes under a minute. No email needed to see results.

The Cam Spray 4055CBG is the Honda powered hot water skid for a contractor building a rig in a truck bed: a 22 HP 688cc Honda V twin drives the triplex pump to 4,000 PSI at 5.5 GPM, the flow that finishes trailers and equipment fast, and a diesel fired burner heats the water for grease and road film. The CBG skid moves from truck to van to trailer with lifting points and a compact footprint, and takes a tank and a reel beside it to make a complete mobile wash unit.

Cam Spray 4055CBG 4,000 PSI 5.5 GPM Skid Mount Hot Water Pressure Washer with Honda Engine and Diesel Burner

The Cam Spray 4055CBG delivers 4,000 PSI at 5.5 GPM from a 22.1 / 688 cc Honda gas engine in a skid mount hot water, gas engine with diesel fired burner configuration.

Cam Spray 4055CBG Motor, Pump and Protection

The CBG skid moves from truck to van to trailer. A Honda industrial gas engine drives a triplex plunger pump with ceramic plungers and stainless steel valves, with low pressure chemical injection and protection by an unloader valve and a secondary pressure pop off. The diesel burner system has a rust free fuel tank and a Schedule 80 coil wrapped in stainless steel, controlled by an adjustable thermostat and a temperature limit switch for a maximum of 195 degrees Fahrenheit.

Cam Spray 4055CBG Installation and Included Equipment

The frame is industrial coated 2 inch tubing with a wand and hose rack. The heavy duty trigger gun and dual wand with side handle valve switch between high pressure cleaning and detergent application, with quick change 0, 15, 25 and 40 degree nozzles. A Group 24 battery is not included. Ships with a 50 ft x 3/8 in high pressure hose, a 5 Gallon engine fuel tank and a 9 Gallon burner fuel tank. Product dimensions 42 in x 35 in x 45 in. Maximum pump inlet water temperature 140 degrees F.

Cam Spray 4055CBG Specifications

Pressure: 4,000 PSI (276 bar)
Flow: 5.5 GPM (20.9 LPM)
Power: Gas Engine, 22.1 / 688 cc, Honda
Water: hot, Diesel Fuel
Mounting: skid
Hose: 50 ft x 3/8 in
Burner stack: 8 in
Ship weight: 650 lb
Model: P00690-4055CBG
Build time: built to order, typically about 3 weeks
