Cam Spray 5055HYD Pressure Washer Hydraulic Powered Base Mount Cold Water 5.5 GPM 5,000 PSI

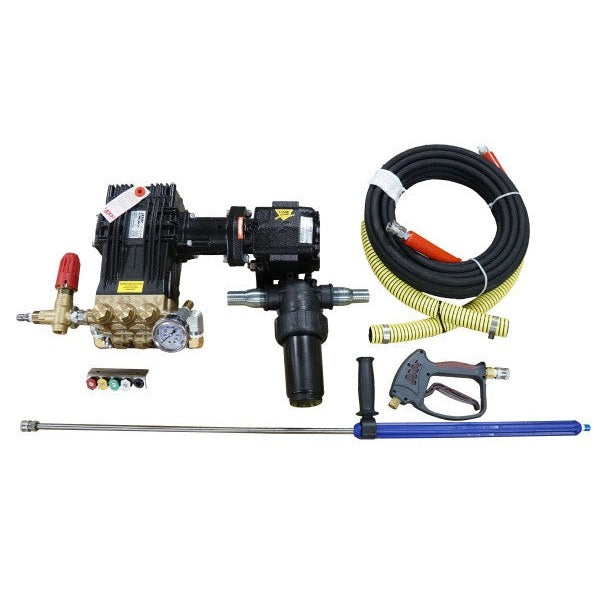

Cam Spray 5055HYD Cold Water Pressure Washer
The Cam Spray 5055HYD delivers 5,000 PSI at 5.5 GPM from a hydraulic motor in a base mount cold water, hydraulic motor configuration.
Motor, Pump and Protection
The hydraulic unit converts the oil flow and pressure of existing equipment into water flow and pressure, so paving, concrete, construction, mining and military machinery can carry its own washer. A high efficiency hydraulic motor drives a triplex plunger pump with ceramic plungers and stainless steel valves, protected by an unloader valve and a secondary pop off valve.
Installation and Included Equipment
Oil connections are JIC number 10 inlet and discharge. The trigger gun and quick change 0, 15, 25, 40 degree and soap tips are included. The design is simple to operate and maintain. Ships with a 50 ft x 3/8 in high pressure hose. Product dimensions 40 in x 30 in x 60 in. Maximum pump inlet water temperature 160 degrees F.
Specifications
- Pressure: 5,000 PSI (345 bar)
- Flow: 5.5 GPM (21 LPM)
- Power: Hydraulic Motor
- Water: cold
- Mounting: base mount
- Hose: 50 ft x 3/8 in
- Required oil inlet: 20 gpm at 5000
- Ship weight: 155 lb
- Model: 5055HYD
