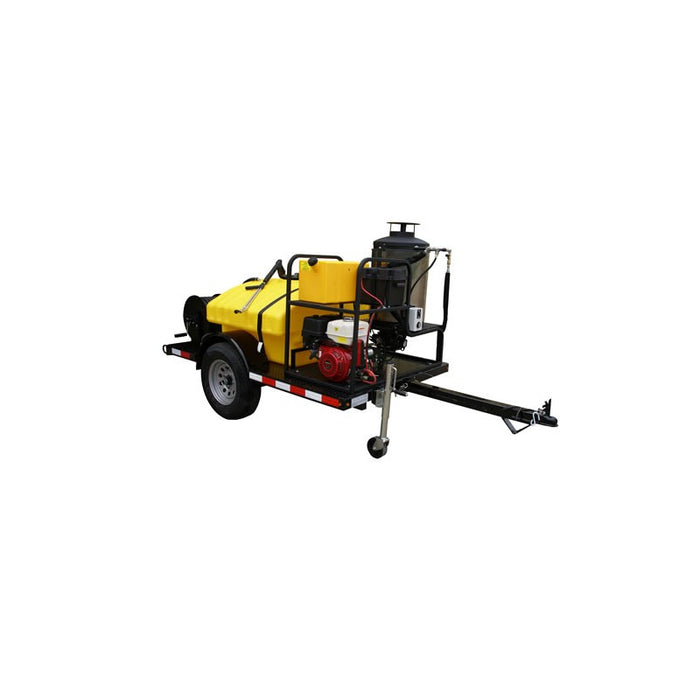

Cam Spray UV3040H-HOT Pressure Washer Gas Powered Trailer Mounted Diesel Fired Hot Water 4 GPM 3,000 PSI
Cam Spray UV3040H-HOT Hot Water Pressure Washer
The Cam Spray UV3040H-HOT delivers 3,000 PSI at 4 GPM from a 11.7 / 389 cc Honda gas engine in a trailer mounted hot water, gas engine with diesel fired burner configuration.
Motor, Pump and Protection
A Honda industrial gas engine drives a triplex plunger pump with ceramic plungers and stainless steel valves, with low pressure chemical injection and protection by an unloader valve and a secondary pressure pop off. The diesel burner has a rust free fuel tank and a Schedule 80 coil wrapped in stainless steel, controlled by an adjustable thermostat and a temperature limit switch for a maximum of 195 degrees Fahrenheit.
Installation and Included Equipment
The trailer is road ready with tail lights, turn signals, 13 inch wheels and a 2,000 lb axle. The heavy duty trigger gun and dual wand with side handle valve switch between high pressure cleaning and detergent application, with quick change 0, 15, 25 and 40 degree nozzles. A Group 24 battery is not included. Ships with a 100 ft x 3/8 in high pressure hose, a 130 gallon water tank, a 6.9 Quarts engine fuel tank and a 9 Gallon burner fuel tank. Product dimensions 136 in x 74 in x 60 in. Maximum pump inlet water temperature 160 degrees F.
Specifications
- Pressure: 3,000 PSI (207 bar)
- Flow: 4 GPM (15.2 LPM)
- Power: Gas Engine, 11.7 / 389 cc, Honda
- Water: hot, Diesel Fuel
- Mounting: trailer
- Hose: 100 ft x 3/8 in
- Water tank: 130 gallons
- Burner stack: 8 in
- Ship weight: 1500 lb
- Model: UV3040H-HOT
Emission Compliance Notice
This Cam Spray product is equipped with a Honda engine rated as 49-state compliant (EPA approved). This engine does not meet California Air Resources Board (CARB) emission standards. This model is not available for sale or shipment to California.
