Pressure-Pro Dirt Laser TSKDT/T185TWH/SK40004HH 4,000 PSI 3.5 GPM Gas Powered Hot Water Pressure Washer with Honda GX390 Engine, Tow and Stow Cart

Sidewalks, food courts, parking decks and campus quads are where the Pressure-Pro Dirt Laser TSKDT/T185TWH/SK40004HH earns its keep. The Tow and Stow cart puts the 200 gallon tank skid on four wheels with a pivoting front axle, so a pickup or a utility vehicle can tow it around a property at up to 10 miles per hour. A Honda GX390 with electric start turns a direct drive AR triplex pump to 4,000 PSI at 3.5 GPM with water heated to 250 degrees Fahrenheit.

Pressure-Pro Dirt Laser TSKDT/T185TWH/SK40004HH 4,000 PSI 3.5 GPM Hot Water Pressure Washer on a 200 Gallon Tow and Stow Wash Cart

What the Pressure-Pro TSKDT/T185TWH/SK40004HH Is and Who It Is For

The Pressure-Pro Dirt Laser TSKDT/T185TWH/SK40004HH is the hot water wash package built for work that stays on one property. The Tow and Stow cart carries the 200 gallon tank skid on four wheels so a pickup or a utility vehicle can pull it between buildings, and it fits through gates and along walkways a full sized trailer cannot use. Pressure washing contractors, municipalities, schools, malls, shopping centers, hospitals and equipment yards run this package. At 4,000 PSI and 3.5 GPM with water heated to 250 degrees Fahrenheit it clears grease, gum, graffiti and traffic film off concrete.

Engine, Pump and Drive on the Pressure-Pro TSKDT/T185TWH/SK40004HH

The Honda GX390 engine has electric start and powers both the pump and the 12 volt diesel burner, so the package needs no external electrical supply. It turns a direct drive AR triplex pump with ceramic plungers rated at 4,000 PSI and 3.5 GPM. The unloader is remote mounted for easy maintenance and runs an external bypass loop that keeps the pump cool when the gun is closed, and a pressure relief valve and a burst disc protect the operator.

Tow and Stow Cart and Washer Skid on the Pressure-Pro TSKDT/T185TWH/SK40004HH

The Tow and Stow cart carries the 200 gallon tank skid on four wheels. A pivoting front axle makes it easy to steer, the tongue carries no weight so a utility vehicle can pull it, and the flip up handle automatically locks the wheels for safe and compact storage. The footprint is less than 7 feet by 4 feet. It is intended to be used and stored on site, not on public roads, and the maximum towing speed is 10 miles per hour. The 200 gallon poly tank has an inlet water filter strainer that keeps debris out of the pump, and the two stainless steel hose reels carry a 50 foot high pressure hose and a 100 foot inlet hose.

The washer itself sits in a rugged powder coated steel full cage frame with a balanced lifting point. The skid measures 43 x 27 x 45 in.

Burner and Heat on the Pressure-Pro TSKDT/T185TWH/SK40004HH

A 12 volt diesel burner fires a high capacity 1/2 inch schedule 80 steel coil wrapped in stainless steel insulation. An adjustable thermostat sets the outlet anywhere up to 250 degrees Fahrenheit, so the same machine runs warm water for general washing or wet steam for heavy grease. The burner draws from dual 8 gallon diesel tanks.

Pressure-Pro TSKDT/T185TWH/SK40004HH Features

• 200 gallon poly water tank with an inlet water filter strainer
• Stainless steel inlet reel and stainless steel high pressure reel
• Four wheel cart with a pivoting front axle for tight properties
• Flip up handle that automatically locks the wheels for compact storage
• No weight on the tongue, so a utility vehicle can tow it
• Commercial and industrial Honda GX390 gasoline engine with electric start
• Triplex ceramic plunger AR pump, direct drive
• Adjustable thermostat up to 250 degrees Fahrenheit
• High capacity 1/2 inch schedule 80 steel coil with a stainless steel insulated wrap
• 12 volt diesel burner, so no external electrical supply is needed
• Remote mounted unloader with an external bypass loop that keeps the pump cool
• Pressure relief valve and burst disc for operator safety
• Rugged powder coated steel full cage frame with a balanced lifting point

Pressure-Pro TSKDT/T185TWH/SK40004HH Standard Accessories

• 50 foot high pressure hose
• 100 foot inlet hose
• Gun and wand assembly
• Quick connect spray nozzles

What Is Not Included with the Pressure-Pro TSKDT/T185TWH/SK40004HH

The skid needs a Group 24 550 CCA battery to start and that battery is not included. The downstream soap injection kit with the quick connect soap nozzle, part number AC340, and the hour meter, part number AM512, are options and are not part of this package. The 200 gallon tank ships empty and is filled from your own water supply.

Pressure-Pro TSKDT/T185TWH/SK40004HH Specifications

Notes on the Pressure-Pro TSKDT/T185TWH/SK40004HH

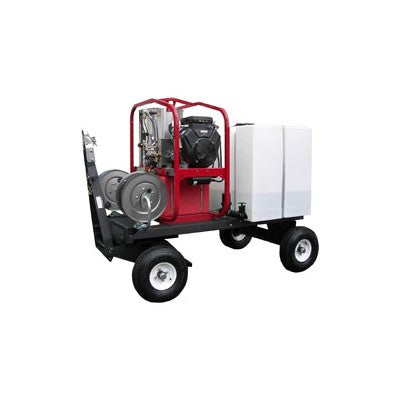

The photo shows the same Tow and Stow wash cart carrying an SK40005VH skid. This package ships with the SK40004HH skid, which shares the frame, the coil and the accessories and differs in engine, drive, pressure and flow.

Pressure-Pro publishes no overall weight for the Tow and Stow package. The dimensions listed are for the washer skid alone.

The footprint and the 10 mile per hour towing limit come from the Hydro Tek Tow and Stow brochure for the same cart.
