Pressure-Pro Hot Link CPHL5DC diesel fired hot water generator, bare unit without the optional wheel kit

Pressure-Pro Hot Link CPHL5DC Hot Water Generator for Cold Water Pressure Washers, 12 Volt DC

$2,069.55 - $2,069.55

$2,069.55

$2,069.55 - $2,069.55

$2,069.55

In stock, ready to ship

If you already own a cold water pressure washer, the Pressure-Pro Hot Link CPHL5DC adds hot water without buying a second machine. It plumbs inline. Your washer feeds the Hot Link, the diesel burner heats the water on the way through, and your gun and hose come off the outlet. It runs on 12 volt DC from the battery on the pressure washer, so it travels wherever the washer travels, on a truck bed or on a trailer.

Pressure-Pro Hot Link CPHL5DC 12 Volt DC Diesel Fired Hot Water Generator for Cold Water Pressure Washers

What the Pressure-Pro Hot Link CPHL5DC Is and Who It Is For

The Pressure-Pro Hot Link CPHL5DC is a hot water generator that attaches to a cold water pressure washer you already own. High pressure water leaves your washer, passes through the Hot Link where a diesel burner heats it, and comes out the outlet for your gun and hose. Shops, mobile detailers, fleet crews and contractors buy it when hot water is needed for grease, gum or graffiti but a second complete machine is not worth the money or the space.

How the Pressure-Pro Hot Link CPHL5DC Connects and Controls the Burner

The Hot Link works with almost any cold water pressure washer up to 4,350 PSI and up to 5 GPM. Connect it with the included jumper hose, then move your pressure hose, gun, wand and nozzles to the outlet on the Hot Link. Control is by flow switch. Pull the trigger and the burner lights, release it and the burner shuts down. A lighted on and off switch and an adjustable thermostat sit on the panel, and this model runs on 12 volt DC taken from the battery on the pressure washer, which must have a 14 amp charging system.

Frame and Mounting on the Pressure-Pro Hot Link CPHL5DC

The base frame is powder coated steel with four holes so the unit bolts down to a truck or a trailer. The coil is wrapped in stainless steel with double wall coil end caps. The whole unit measures 29 x 22 x 22 in and weighs 180 lb, so it stores on a shelf or in a corner of the trailer when the job does not call for hot water.

Burner and Heat on the Pressure-Pro Hot Link CPHL5DC

The burner runs on number 2 diesel from a 3 gallon tank and fires a 1/2 inch schedule 80 steel pipe coil, cold rolled in 4 spirals with ceramic insulation. Rated input is 274,400 Btu, which heats 4 GPM at a 100 degree Fahrenheit rise, and the adjustable thermostat reaches 200 degrees Fahrenheit. Safety features are redundant: a flow switch, a pressure relief valve and a burst disc.

Pressure-Pro Hot Link CPHL5DC Features

Adds hot water to the cold water pressure washer you already own
Connects to almost any cold water pressure washer up to 4,350 PSI and up to 5 GPM
Adjustable temperature up to 200 degrees Fahrenheit for grease, gum and graffiti
Flow controlled burner that starts when the gun is pulled and stops when it is released
274,400 Btu rated input, 4 GPM at a 100 degree Fahrenheit rise
Runs on 12 volt DC from the pressure washer battery, with a 14 amp charging system required
1/2 inch schedule 80 steel pipe coil, cold rolled 4 spiral, with ceramic insulation
Rugged powder coated base frame, stainless steel coil wrap and double wall coil end caps
Lighted on and off switch with an adjustable thermostat
3 gallon diesel fuel tank for the burner
Flow switch, pressure relief valve and burst disc for operator safety
Four holes to bolt the unit down to your truck or trailer
Compact at 29 x 22 x 22 in, so it stores easily when it is not in use

Pressure-Pro Hot Link CPHL5DC Standard Accessories

48 inch jumper hose rated 5,000 PSI and 250 degrees Fahrenheit, to connect the Hot Link to your existing pressure washer

What Is Not Included with the Pressure-Pro Hot Link CPHL5DC

A gun and a hose are not included. You use the gun, wand, hose and nozzles from your own pressure washer, and they must be rated for at least 200 degrees Fahrenheit before you run them on hot water. The AHC25 four wheel kit with a handle is an option and is not included. The pressure washer supplies the 12 volt power, so no battery ships with the Hot Link.

Pressure-Pro Hot Link CPHL5DC Specifications

Model	CPHL5DC
Series	Hot Link
Water Type	Hot Water
Power	12 volt DC from the pressure washer battery, 14 amp charging system required
Pressure	Connects to a cold water pressure washer up to 4,350 PSI
Flow Rate	Up to 5 GPM, 4 GPM at a 100 degree Fahrenheit rise
Frame	Powder coated steel base frame with four bolt down holes
Burner	Diesel fired, adjustable thermostat up to 200 F
Heat Output	274,400 Btu input
Coil	1/2 inch schedule 80 steel pipe, cold rolled 4 spiral, ceramic insulation
Fuel Tanks	3 gallon diesel
Dimensions (L x W x H)	29 x 22 x 22 in
Weight	180 lb
California Sales	No manufacturer restriction listed

Notes on the Pressure-Pro Hot Link CPHL5DC

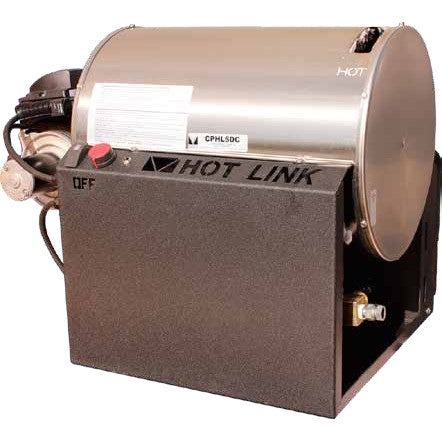

The photo is the catalog page 47 image of the Hot Link without the optional AHC25 four wheel kit.
