Pressure-Pro Hot Link CPHL5E1 diesel fired hot water generator, bare unit without the optional wheel kit

Pressure-Pro Hot Link CPHL5E1 Hot Water Generator for Cold Water Pressure Washers, 115 Volt

$2,069.55 - $2,069.55

$2,069.55

$2,069.55 - $2,069.55

$2,069.55

In stock, ready to ship

The Pressure-Pro Hot Link CPHL5E1 turns a cold water pressure washer into a hot water pressure washer for grease, gum and graffiti. Your washer feeds the Hot Link, the diesel burner heats the water on the way through, and your gun and hose connect to the outlet. This model runs on 115 volt power from a standard 15 amp outlet or a 2,000 watt generator, which suits shops, wash bays and trailers that carry a generator.

Pressure-Pro Hot Link CPHL5E1 115 Volt Diesel Fired Hot Water Generator for Cold Water Pressure Washers

What the Pressure-Pro Hot Link CPHL5E1 Is and Who It Is For

The Pressure-Pro Hot Link CPHL5E1 is a hot water generator that attaches to a cold water pressure washer you already own. High pressure water leaves your washer, passes through the Hot Link where a diesel burner heats it, and comes out the outlet for your gun and hose. Shops, mobile detailers, fleet crews and contractors buy it when hot water is needed for grease, gum or graffiti but a second complete machine is not worth the money or the space.

How the Pressure-Pro Hot Link CPHL5E1 Connects and Controls the Burner

The Hot Link works with almost any cold water pressure washer up to 4,350 PSI and up to 5 GPM. Connect it with the included jumper hose, then move your pressure hose, gun, wand and nozzles to the outlet on the Hot Link. Control is by flow switch. Pull the trigger and the burner lights, release it and the burner shuts down. A lighted on and off switch and an adjustable thermostat sit on the panel, and this model runs on 115 volt single phase at 2 amps from a standard 15 amp outlet or a 2,000 watt generator.

Frame and Mounting on the Pressure-Pro Hot Link CPHL5E1

The base frame is powder coated steel with four holes so the unit bolts down to a truck or a trailer. The coil is wrapped in stainless steel with double wall coil end caps. The whole unit measures 29 x 22 x 22 in and weighs 180 lb, so it stores on a shelf or in a corner of the trailer when the job does not call for hot water.

Burner and Heat on the Pressure-Pro Hot Link CPHL5E1

The burner runs on number 2 diesel from a 3 gallon tank and fires a 1/2 inch schedule 80 steel pipe coil, cold rolled in 4 spirals with ceramic insulation. Rated input is 325,000 Btu, which heats 4.75 GPM at a 100 degree Fahrenheit rise, and the adjustable thermostat reaches 200 degrees Fahrenheit. Safety features are redundant: a flow switch, a pressure relief valve and a burst disc.

Pressure-Pro Hot Link CPHL5E1 Features

Adds hot water to the cold water pressure washer you already own
Connects to almost any cold water pressure washer up to 4,350 PSI and up to 5 GPM
Adjustable temperature up to 200 degrees Fahrenheit for grease, gum and graffiti
Flow controlled burner that starts when the gun is pulled and stops when it is released
325,000 Btu rated input, 4.75 GPM at a 100 degree Fahrenheit rise
Runs on 115 volt single phase power, 2 amps, from a 15 amp outlet or a 2,000 watt generator
1/2 inch schedule 80 steel pipe coil, cold rolled 4 spiral, with ceramic insulation
Rugged powder coated base frame, stainless steel coil wrap and double wall coil end caps
Lighted on and off switch with an adjustable thermostat
3 gallon diesel fuel tank for the burner
Flow switch, pressure relief valve and burst disc for operator safety
Four holes to bolt the unit down to your truck or trailer
Compact at 29 x 22 x 22 in, so it stores easily when it is not in use

Pressure-Pro Hot Link CPHL5E1 Standard Accessories

48 inch jumper hose rated 5,000 PSI and 250 degrees Fahrenheit, to connect the Hot Link to your existing pressure washer
GFCI power cord with plug

What Is Not Included with the Pressure-Pro Hot Link CPHL5E1

A gun and a hose are not included. You use the gun, wand, hose and nozzles from your own pressure washer, and they must be rated for at least 200 degrees Fahrenheit before you run them on hot water. The AHC25 four wheel kit with a handle is an option and is not included. Diesel fuel for the burner is not included.

Pressure-Pro Hot Link CPHL5E1 Specifications

Model	CPHL5E1
Series	Hot Link
Water Type	Hot Water
Power	115 volt, 1 phase, 2 amp, 15 amp outlet or 2,000 watt generator
Pressure	Connects to a cold water pressure washer up to 4,350 PSI
Flow Rate	Up to 5 GPM, 4.75 GPM at a 100 degree Fahrenheit rise
Frame	Powder coated steel base frame with four bolt down holes
Burner	Diesel fired, adjustable thermostat up to 200 F
Heat Output	325,000 Btu input
Coil	1/2 inch schedule 80 steel pipe, cold rolled 4 spiral, ceramic insulation
Fuel Tanks	3 gallon diesel
Dimensions (L x W x H)	29 x 22 x 22 in
Weight	180 lb
California Sales	No manufacturer restriction listed

Notes on the Pressure-Pro Hot Link CPHL5E1

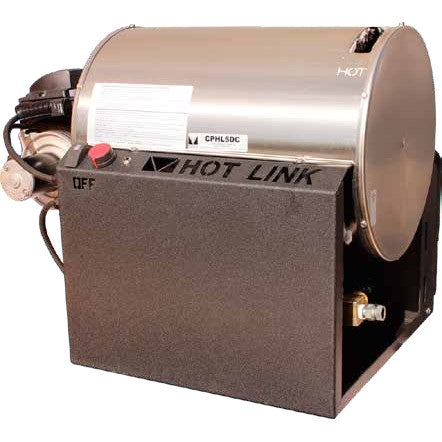

The photo is the catalog page 47 image of the Hot Link without the optional AHC25 four wheel kit.

Pressure-Pro publishes no photo of the 115 volt model. The unit shown is the 12 volt CPHL5DC, which shares the frame, the coil and the cabinet.
